SPECIFICATIONS

Brand Name: APWIKOGER

Certification: None,NONE

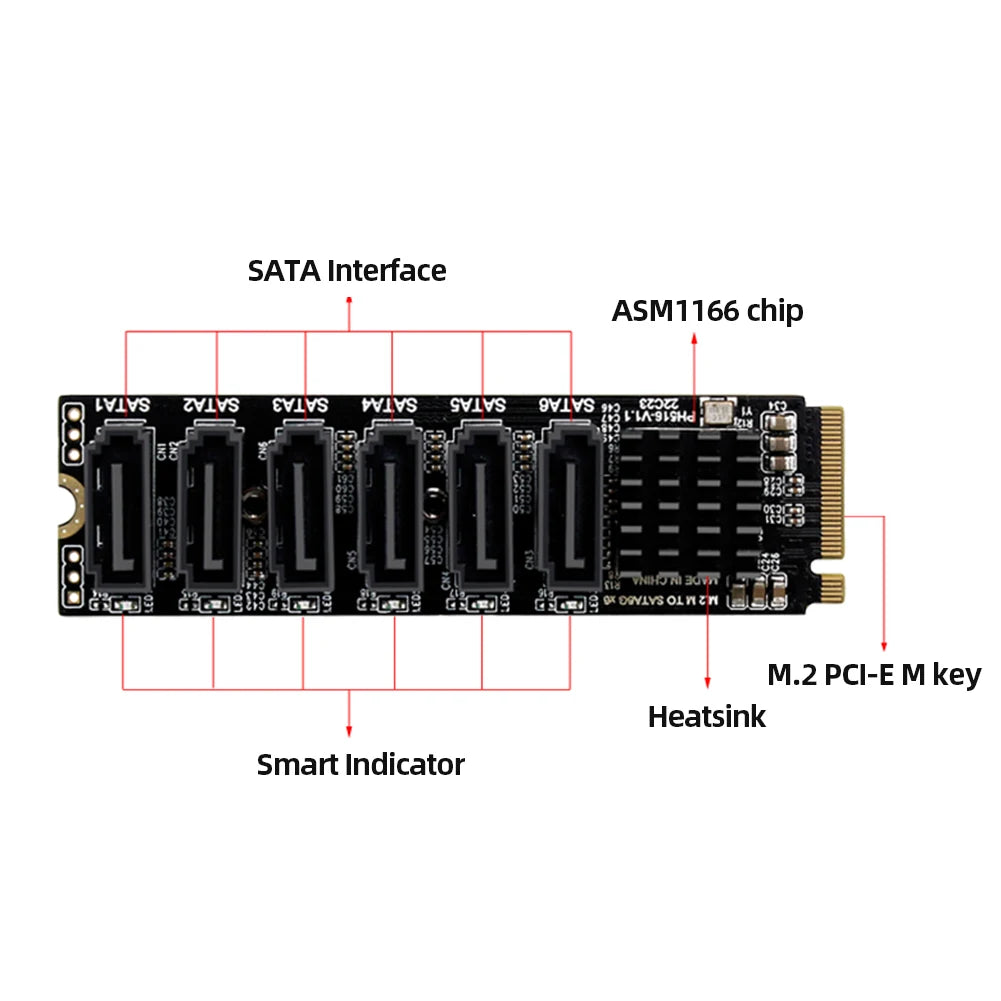

Chip: ASM1166

Data transmission speed: 16000 (MB/s)

Hard disk support: Hard disk that supports the SATA protocol

Hign-concerned Chemical: None

Model Number: Docking Expansion Card,Docking Expansion Card

Number of branching connectors: one driven by six

Origin: Mainland China,Mainland China

Package: Yes,Yes

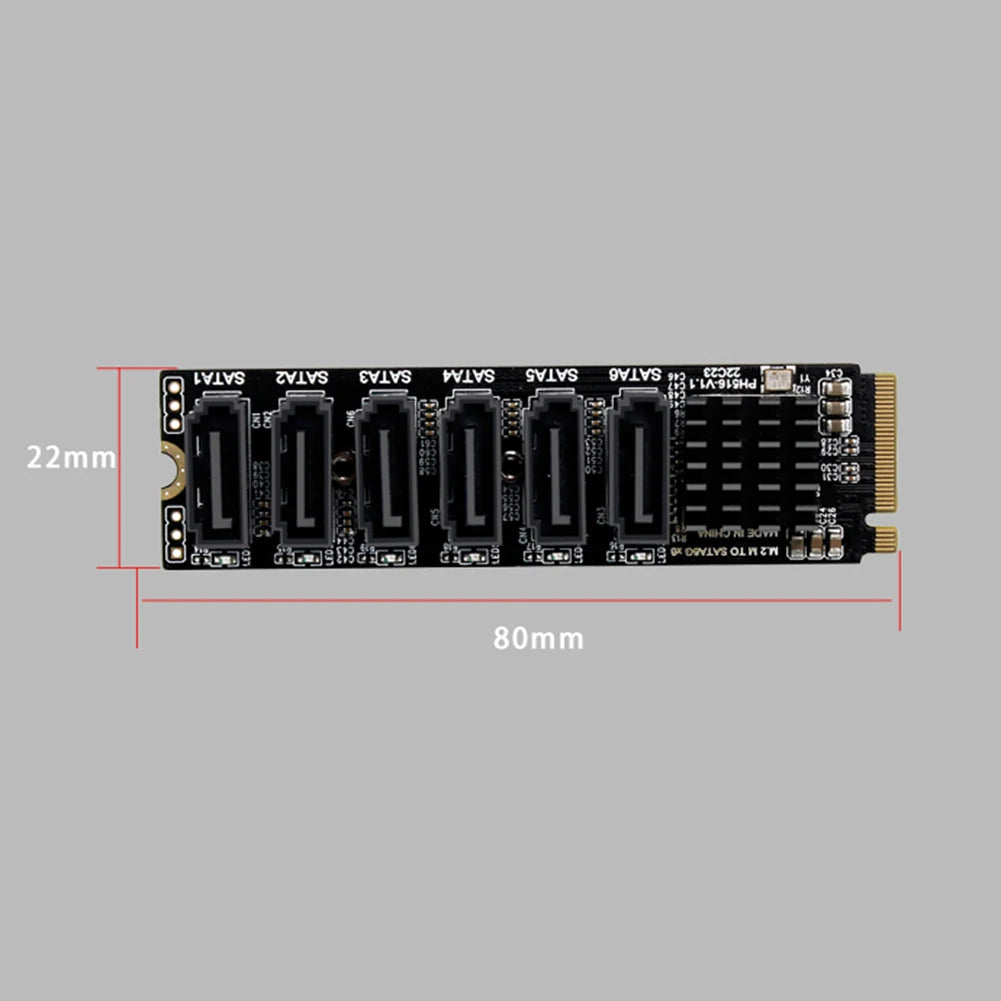

Product size: 80 * 22mm/3.1*0.8in

Product weight: 32.8g

Speed: SATA3 (6G) Total underlying bandwidth 16G

Supported systems: for Mac OS/Windows/Linux

Type: PCI-E Riser,PCI-E Riser

()--Docking Expansion Card

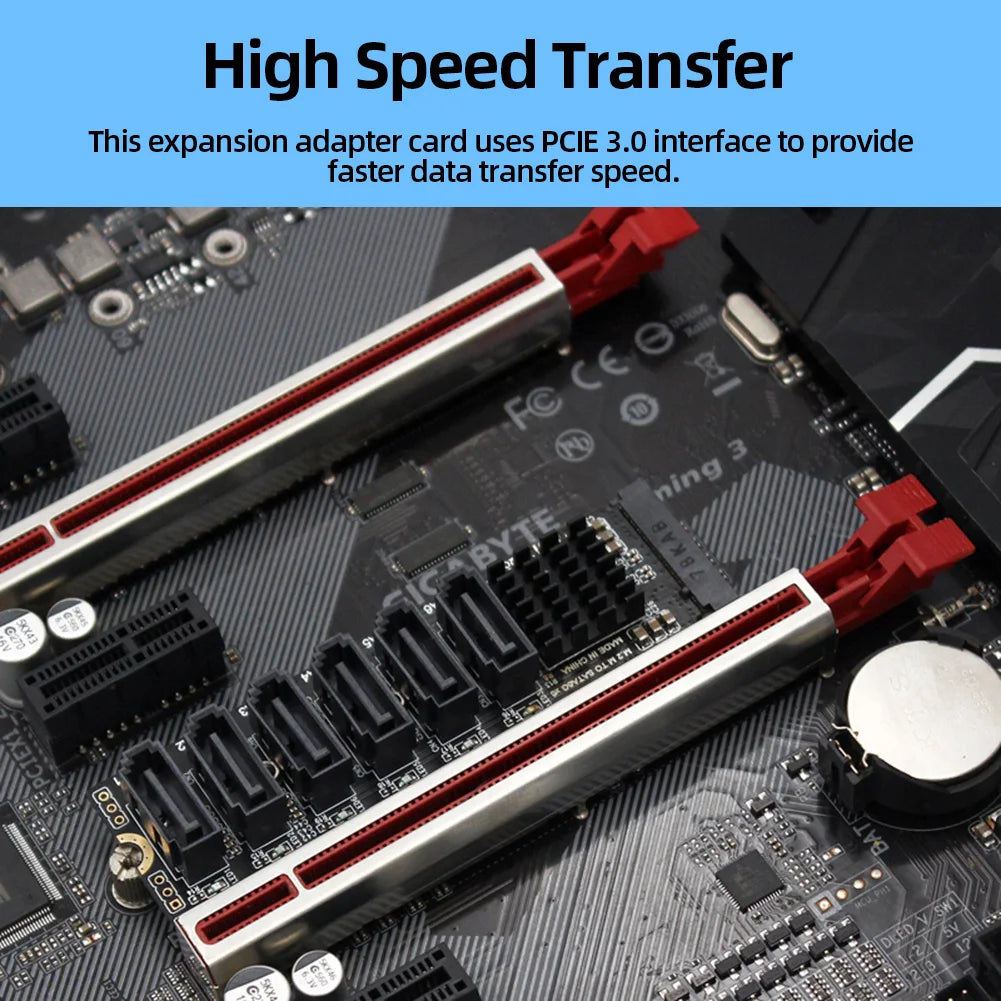

Mini Docking Expansion Card 16000 MB/s Transmission Speed Portable Expansion Card PCIE Riser for Hard Disk Support SATA Protocol Feature: 1. Scalability: The PCIE3.0 to SATA6G Adapter is a riser card that can expand your M.2 interface to six SATA 6G interfaces. It provides additional SATA interfaces, allowing you to connect more SATA devices, such as hard disks, optical drives, and so on, providing more storage space and data transfer options for your system. 2. High Speed Transmission: This PC Computer Expansion uses a PCIE 3.0 interface, which can provide faster data transmission speed. At the same time, it also supports the SATA 6Gbps interface, which means that you can achieve higher data transfer speeds and more stable data transfer performance through the devices connected to it. 3. Compatibility: PCIE Riser is widely compatible. It supports multiple specifications and lengths of the M.2 interface and is suitable for different models of motherboards. In addition, it also supports multiple operating systems, including Windows, Linux, and so on. 4. Easy to Install: Transfer Expansion Card installation is very simple. You only need to plug it into the M.2 slot on the motherboard, and then plug the connection cable into another SATA device. This adapter card has a compact appearance and can be easily installed inside the chassis without occupying too much space. 5. Reliability: PCI Expansion Card uses high-quality materials and manufacturing processes to ensure its reliability and durability. It is also equipped with multiple protection functions, such as overcurrent, overvoltage, and short circuit protection, to ensure better protection of your equipment and data during use. Specification: Certification: NONE Origin: Mainland China Type: PCI-E Riser Model Number: Docking Expansion Card Package: Yes Product size: 80 * 22mm/3.1*0.8in Chip: ASM1166 Data transmission speed: 16000 (MB/s) Hard disk support: Hard disk that supports the SATA protocol Supported systems: for Mac OS/Windows/Linux Speed: SATA3 (6G) Total underlying bandwidth 16G Number of branching connectors: one driven by six Product weight: 32.8g Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

Product	Included
：	1 x Hard Disk Expansion Adapter Card 1 x Screwdriver 1 x Screw
