5pcs Round Rocker Switch ON Off 20mm DC12V-24V Toggle Switch for Car Automotive RV 2 Pin Wired
Feature:

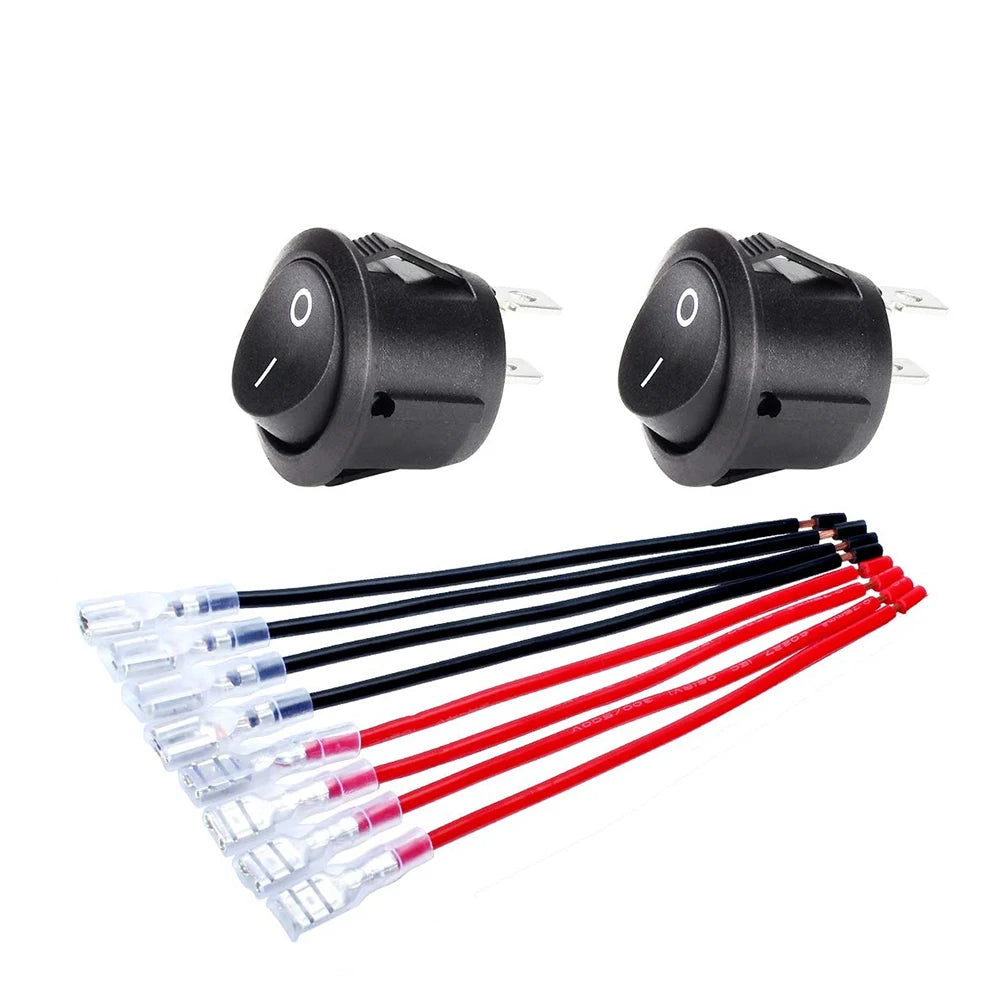

1.Product Features: O, I marked on black button 12V rocker switch with 5 sets of wires (with #187 locking terminals at the end) for easy switch connection.
2.Material: KCD1 small round rocker switch is made of nylon PA66. The terminals are made of brass, silver plated.

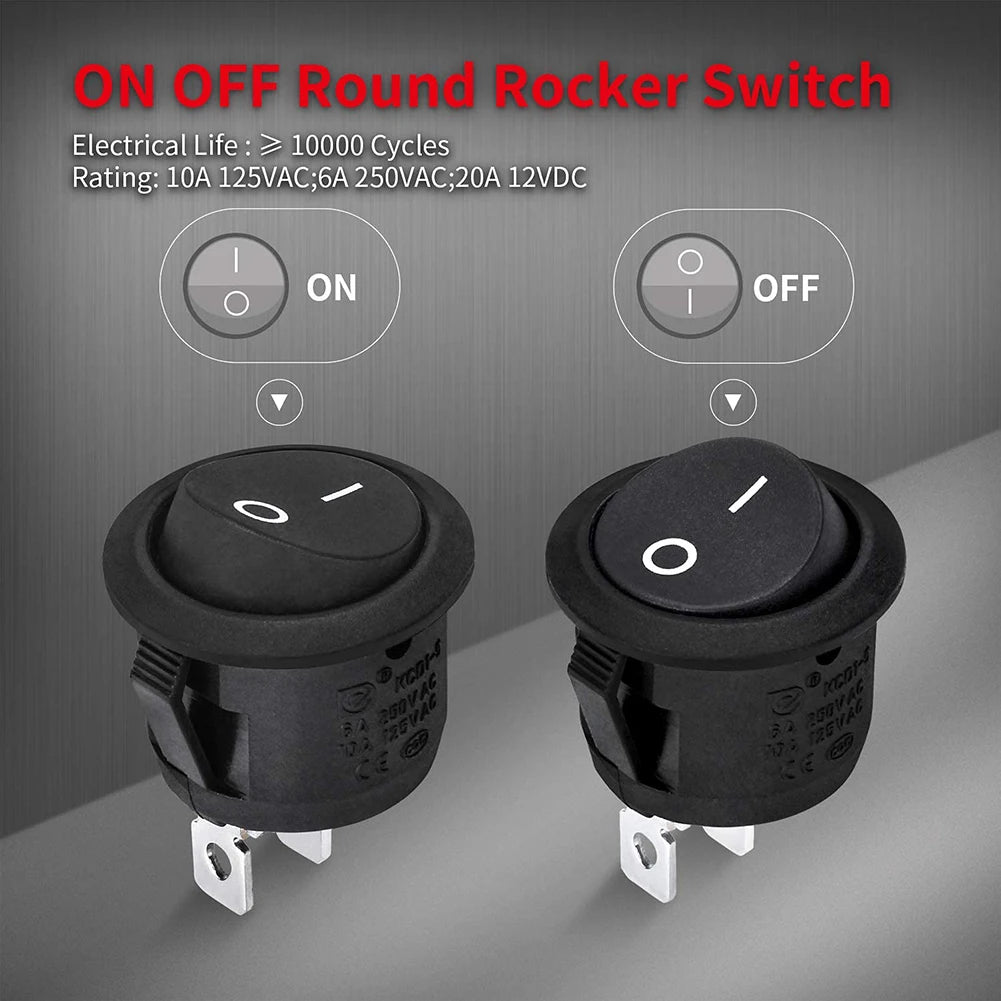

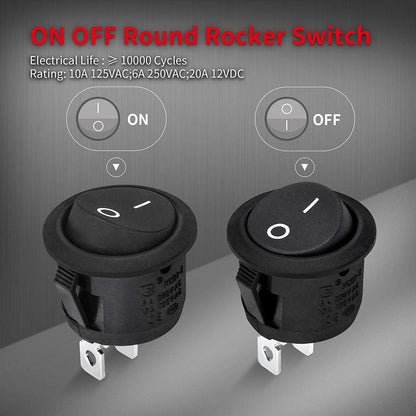

3.Function: The rocker switch is a 2-pin SPST design (single pole single throw) on/off. Rated at 10A 120V AC and 20A 12V DC.

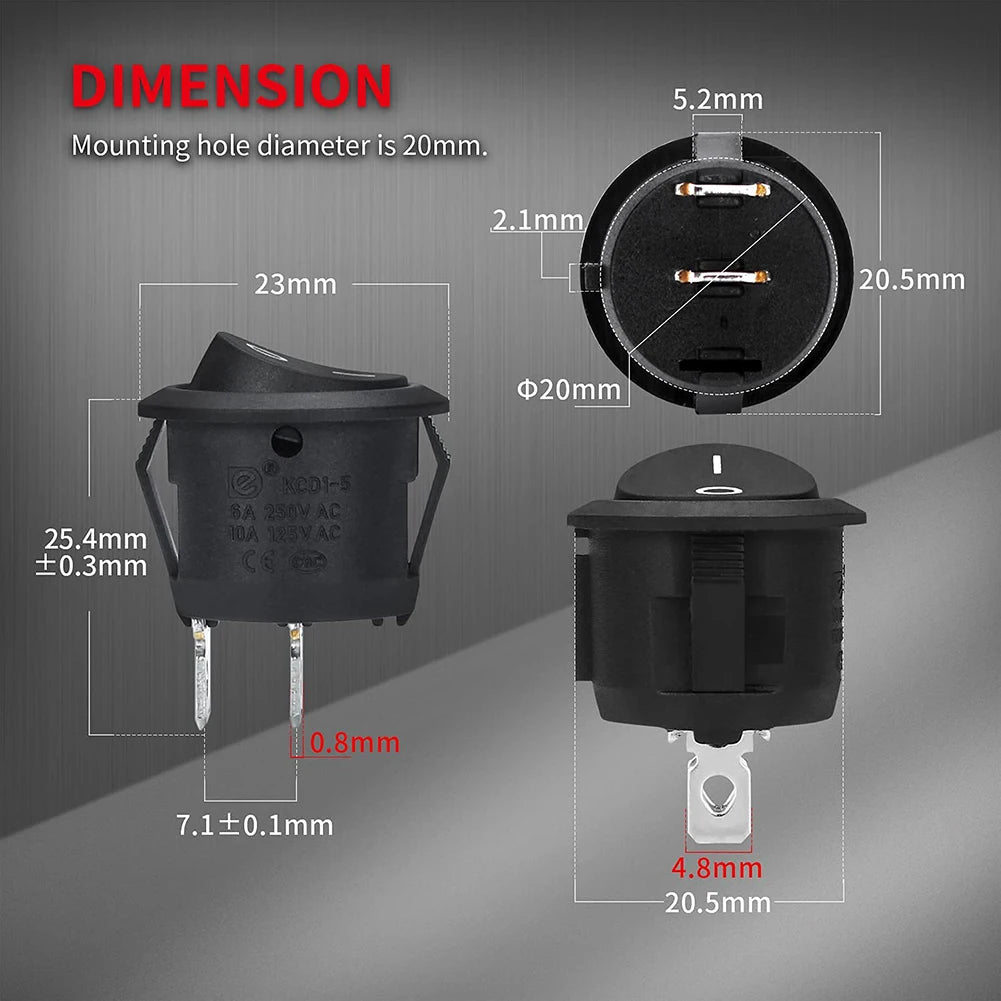

4.Mounting: The mounting holes for this mini 12 volt rocker switch are 0.787" (20mm). Embedded design, easy to install.
5.Application: The circular rocker switch is widely used in automobiles, RVs, boats, household appliances, etc.
Specification:
Product name: Circular switch
Product Model: YJ-SW019
Product net weight: about 8g
Product gross weight: 45g
Product current and voltage: 12V 20A
Switch function: ON-OFF
Material: ABS

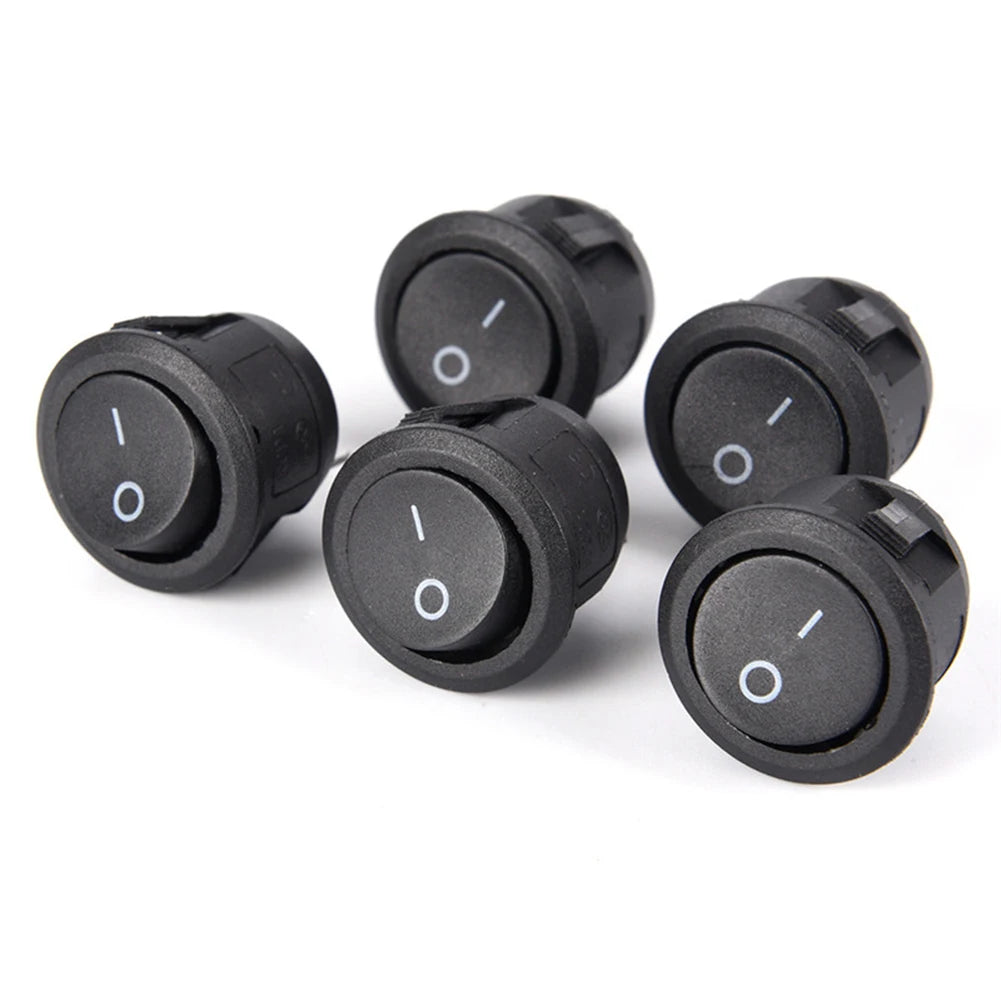

Quantity: 5pcs pack
Input voltage: DC12V-24V
Product size: about 23*17*17mm
Product use: The product is suitable for cars, RVs, boats.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2mm measuring deviation due to manual measurement.
5*Switch
5*Cable Group
