4K HDMI-compatible To USB 2.0 Video Capture Card 4K HDMI-compatible Video Grabber 1080P Cam Link Card for PS4 Game DVD HD Camera

Feature:

1.High-Resolution Support: With a maximum input resolution of 3840x2160 30Hz and a maximum output resolution of 1920x1080 30Hz, this 4K HDMI-compatible to USB 2.0 video capture card ensures exceptional video quality. Enjoy stunning visuals with sharp details and vibrant colors.
2.Long Transmission Distance: When using standard AWG26 cables, this USB 2.0 video capture card supports input transmission distances of up to 15 meters for resolutions up to 1080P. Experience flexibility in setting up your capture setup without sacrificing video quality.
3.Wide Software Compatibility: Compatible with a variety of popular capture software such as VLC, OBS, and Amcap, this 4K HDMI-compatible video grabber provides flexibility in choosing the software that suits your needs. It compatible with Windows, for Android, and compatible with MacOS, ensuring compatibility with different operating systems.
4.USB Video and Audio Standards Compliance: This 1080P cam link card adheres to the USB Video Class (UVC) specification, ensuring seamless integration with your devices and software. Additionally, it complies with the USB Audio Class (UAC) specification, ensuring synchronized audio and video capture.
5.Convenient and Portable: With no external power required, this game capture card adapter offers hassle-free setup and operation. Its compact size allows for easy portability, making it ideal for on-the-go use. Capture your videos anytime, anywhere, without the need for bulky equipment or additional power sources.

Specification:
Origin: Mainland China
This USB 2.0 capture card can capture both HDMI-compatible video and HDMI-compatible audio at the same time. It can transmit audio and video signals to computers and smartphones for preview and storage. Suitable for high-definition collection, teaching recording, medical imaging, etc.
HDMI-compatible resolution: The highest input can support 3840x2160 30Hz
Video input format: 8/10/12-bit color depth
Video output mode: YUV, JPEG
Video output resolution: Maximum output resolution 1920x1080 30Hz
Support audio format: L-PCM
Input cable length: ≤15 meters, AWG26 HDMI-compatible standard cable
Maximum operating current: 0.4A/5VDC
Operating temperature range: (-10 to +55℃)

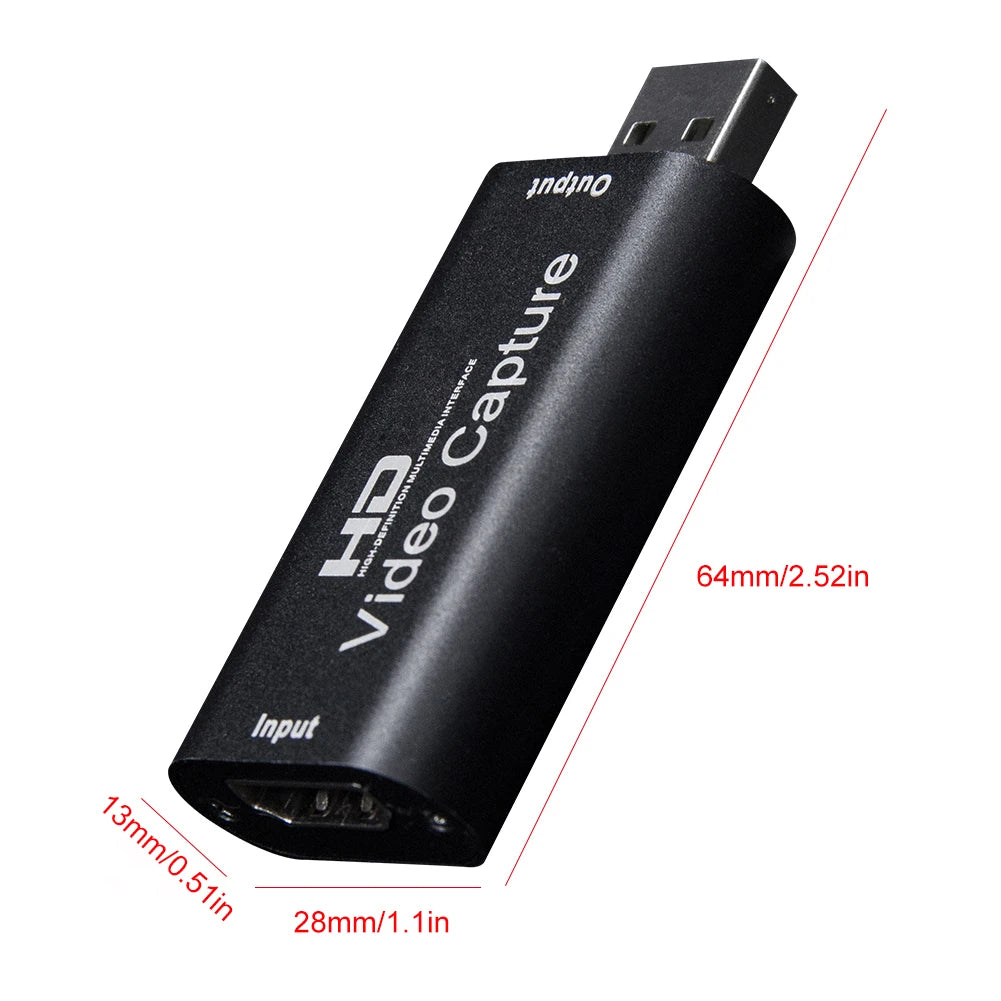

Dimensions: 64x28x13 (mm)
Material: mixed material
Connection operation:

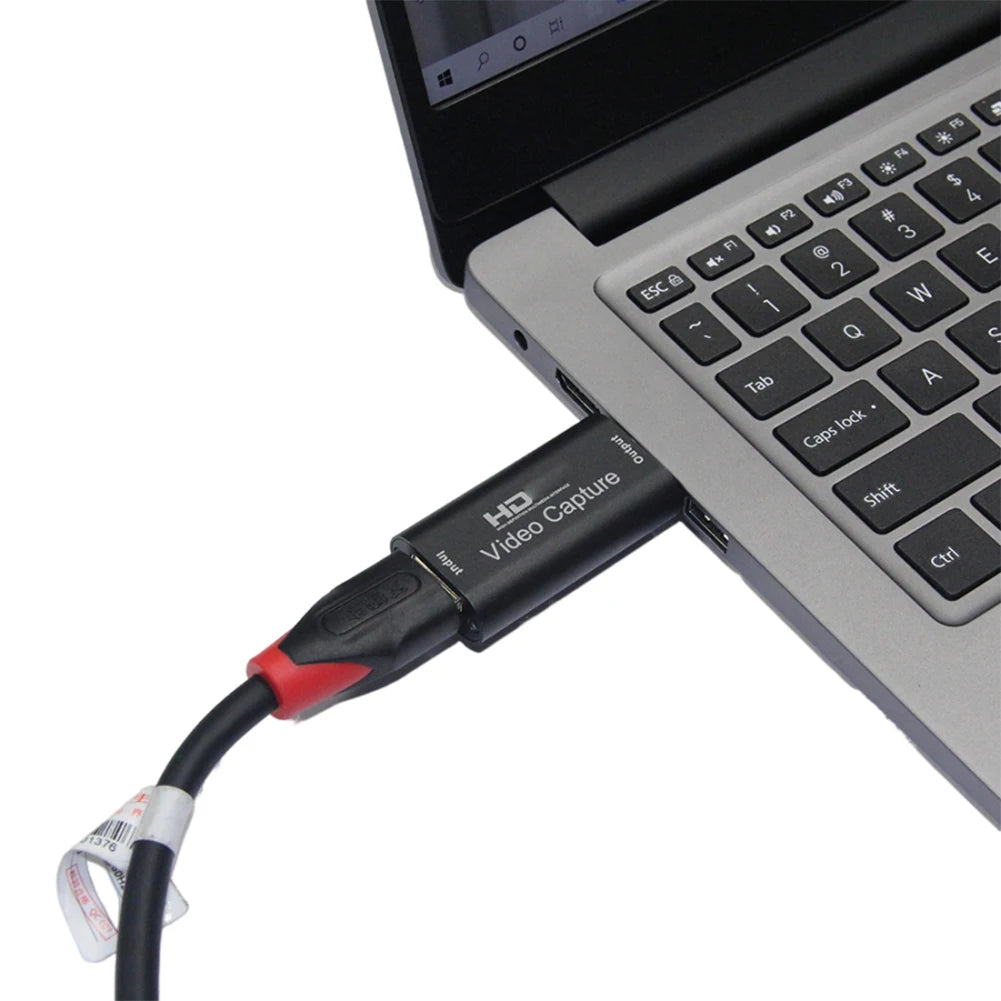

1: Connect the UHD signal source and the HDMI-compatible input port of the USB capture card through an HDMI-compatible cable.
2: Plug the USB male connector of the USB capture card into the USB port of the computer
3: Collection operation steps (OBS): Open the software - Add a new source - Select 'Video Capture Device' - Set the screen size - Select 'Studio Mode' (dual window) - click 'Start Recording'
Note: PC hardware configuration requirements
CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT735M or above
Storage: 4G RAM
Product size: 64.00x28.00x13.00mm/2.52x1.1x0.51inch
Cable interface end A: USB
Cable interface end B: HDMI-compatible
Type: VGA cable

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1*USB 2.0 Video Capture Card
1*User Manual
