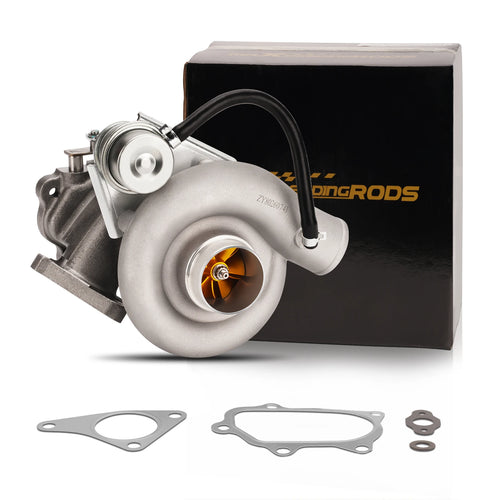

TD05-20G Upgraded Street Billet Turbocharger For Subaru Impreza WRX STI 2002-2006 TD05 20g Turbo Ej20 Ej25 Water Cooled

Sold by EzBuyCo

$275.59

SPECIFICATIONS

Brand Name: MXR

Claims: No any proprietary rights,affiliate and sponsorship with the third party marks.

Cooling Type: Water + Oil Cooled

Country/Region of Manufacture: China

Engine : for Subaru IMPREZA WRX / STI EJ20 EJ25 engine

Fit 1: for Subaru Impreza WRX STI EJ20 EJ25 TD05 20G Turbo Turbocharger

Hign-concerned Chemical: None

Horse Power: Boost Horse Power up to 380BHP

Interchange Part Number: TD05-20G,TD05H-20G

Item Height: 23cm

Item Length: 26cm

Item Weight: 8kg

Item Width: 24cm

Manufacturer Part Number: For Subaru Impreza WRX / STI EJ20 EJ25 engine 2002-2006

Notice: If your old turbo is TD04 one, some modification is required.

OEM NO.: TD05 20G Turbine Turbocharger

Origin: Mainland China

Other Part Number: TD05-20G,TD05H-20G

Placement on Vehicle: Placement on Vehicle

Product Note: Due to the light and different screen display,the picture and product maybe slightly different.

Product Type: This is aftermarket replacement part

Special Features: Balanced by Schenker

Turbine Housing Flange: WRX 3 Bolts

Type: Street Turbocharger

Warranty: 2 YEARS

Wastegate: Internal

TD05-20G Turbo Turbocharger For Subaru Impreza WRX STI EJ20 EJ25 02-06

Application:

for Subaru Impreza WRX / STI EJ20 EJ25 engine 2002 - 2006
for Subaru Impreza WRX Limited Sedan 4-Door
for Subaru Impreza WRX Limited Wagon 4-Door
for Subaru Impreza WRX Sedan 4-Door
for Subaru Impreza WRX STI Limited Sedan 4-Door
for Subaru Impreza WRX STI Sedan 4-Door
for Subaru Impreza WRX TR Sedan 4-Door
for Subaru Impreza WRX Wagon 4-Door

*Notice: All for WRX Wagon engines and automatic sedan engines came with a TD04,all for manual WRX sedans including STI versions had a TD05 model. If your original turbo is TD04 model, some modification(connections, bolts, fixed screws etc.) is required.

Engine Number:
For 2.5L 2458CC H4 GAS DOHC Turbocharged
For 2.0L 1994CC H4 GAS DOHC Turbocharged

Specification

Exhaust Outlet Flange: 5-Bolt Flange
Exhaust Intlet Flange: 3-Bolts Flange
Turbine Side:
Turbine Trim: 76.4
Turbine Housing: 7cm⊃2;
Turbine Inducer Diameter:56mm
Turbine Exducer Diameter: 48.96mm
Compressor Side:
Compressor Trim: 59.8
Compressor Inducer Diameter: 52.6mm
Compressor Exducer Diameter:67.9mm
Compressor Housing Inlet OD: 57.8mm

Oil Feed: M10*1.5
Oil Drain: M15 & 2*M6H
Water In/Out: M14*1.5
Turbine housing: 7cm⊃2;
Compressor housing inlet OD: 57.8mm,ID:53.62mm
Compressor housing outlet OD: 51.2mm,ID:41.2mm

Bearing: Wet Float/Journal Bearing
Cooling Type: Water + Oil cooled
Thrust Bearing:270 degree
Hosepower: Up to 380 HP
Turbo Type: Individual
Condition: 100% Brand New
Package Size:30x 28x 24 cm
Package Weight: 7650g

Feature

*Product Material

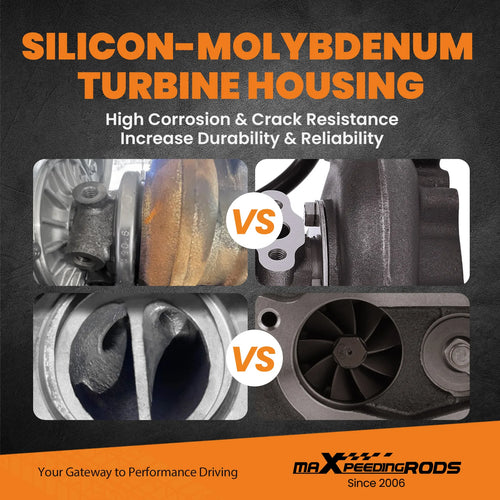

1. Turbine Housing: Silicon-Molybdenum - temperature resistant up to 850℃

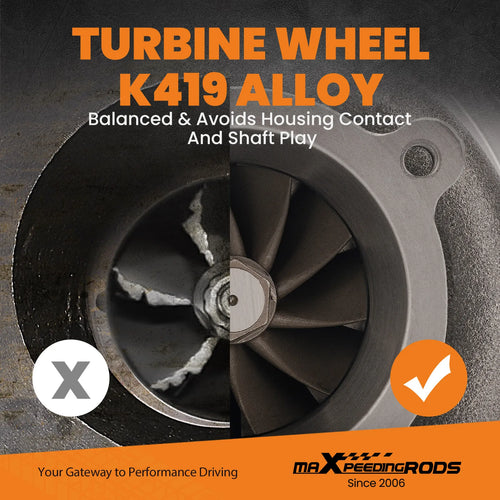

2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor Housing: ZL104 aluminum with lightweight
4. Billet Compressor Wheel: forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

*Product Performance
1. OEM fitment turbo with upgraded material and performance
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer

Note

* Please confirm your original fitment before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
