SPECIFICATIONS

Brand Name: NoEnName_Null

Model Number: DIY Module

Origin: Mainland China

Hign-concerned Chemical: None

Condition: New

Type: Module

Choice: yes

Description:

The product is shipped with a boot program.  When the customer writes a program to change, it is recommended not to use the format method, so that the boot program will be formatted.  There is an option (code repair and reload) in the software tool, which can be used when rewriting the program This one.

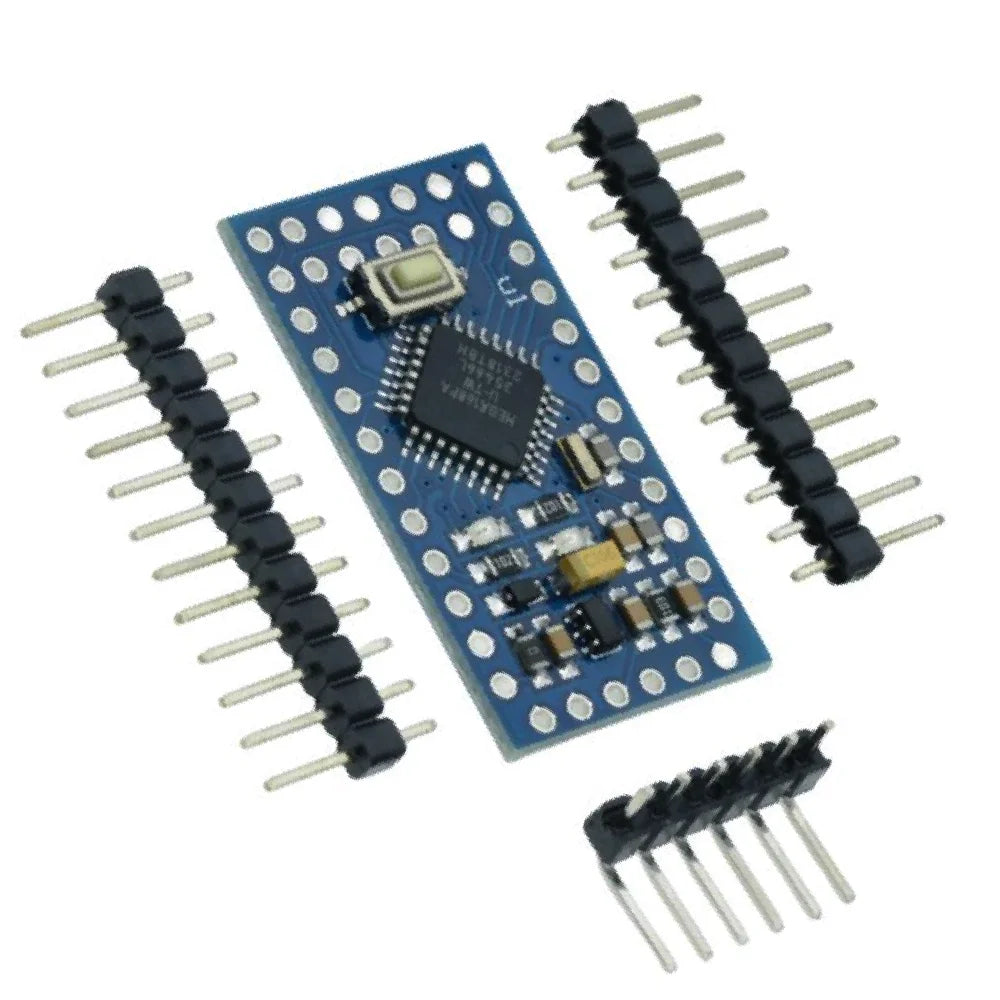

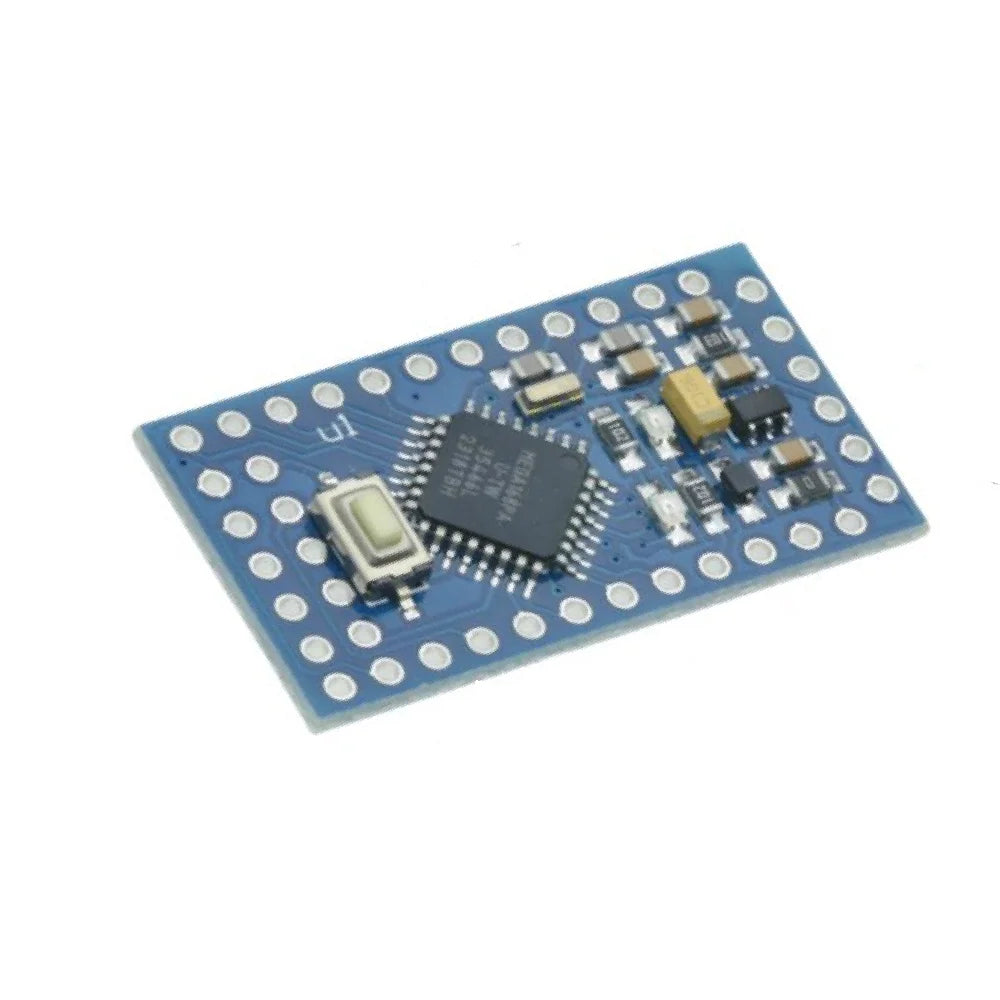

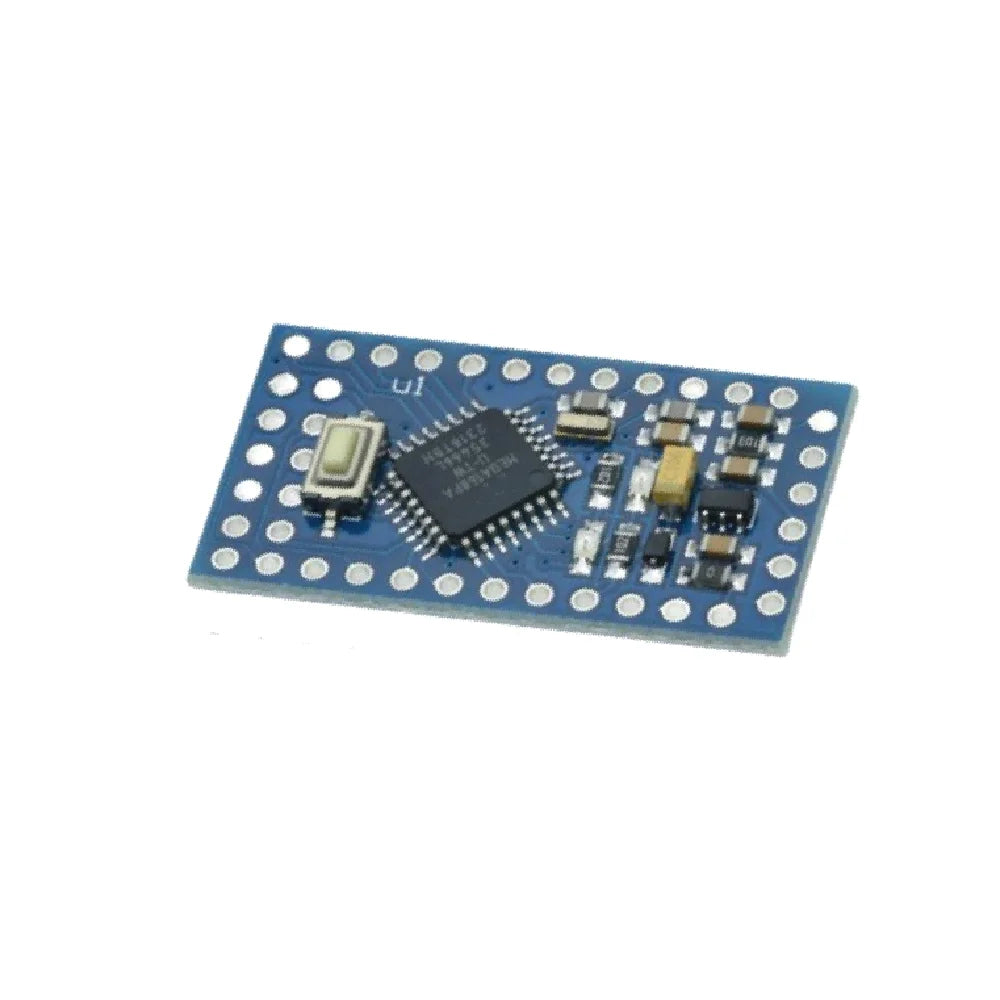

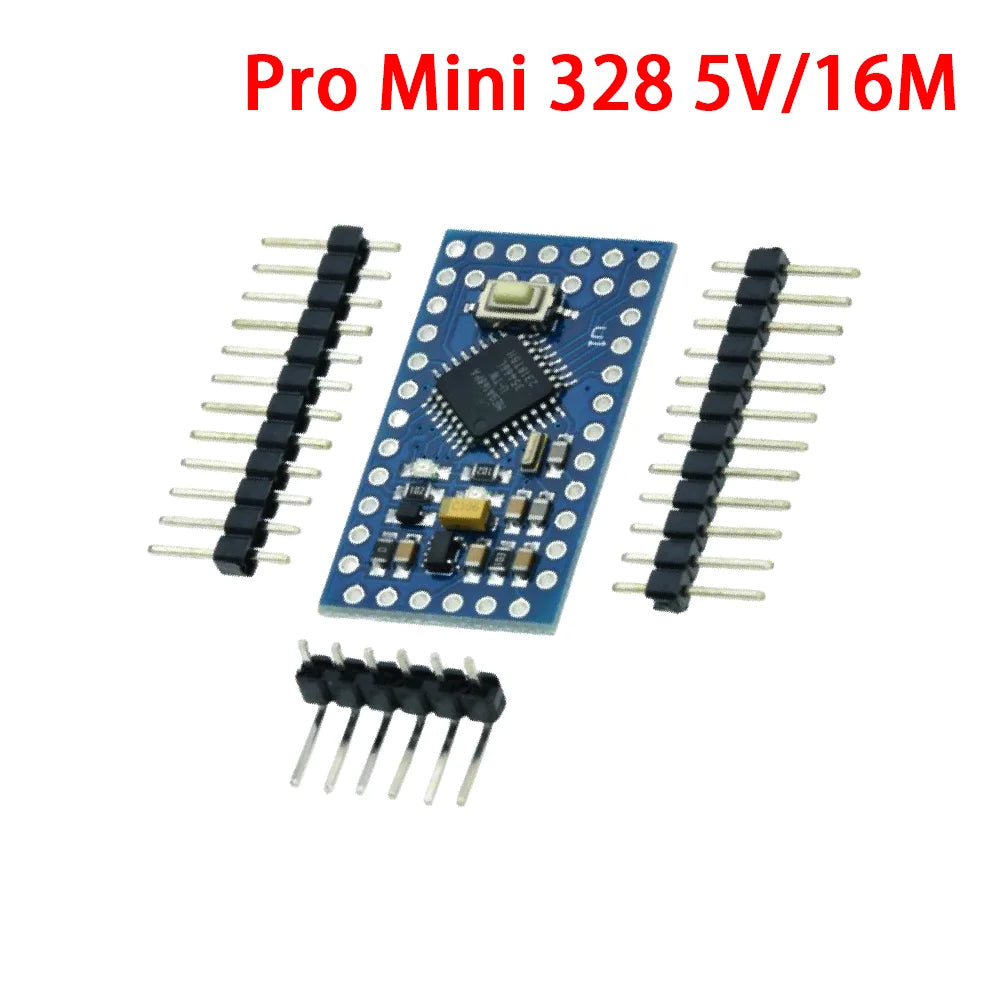

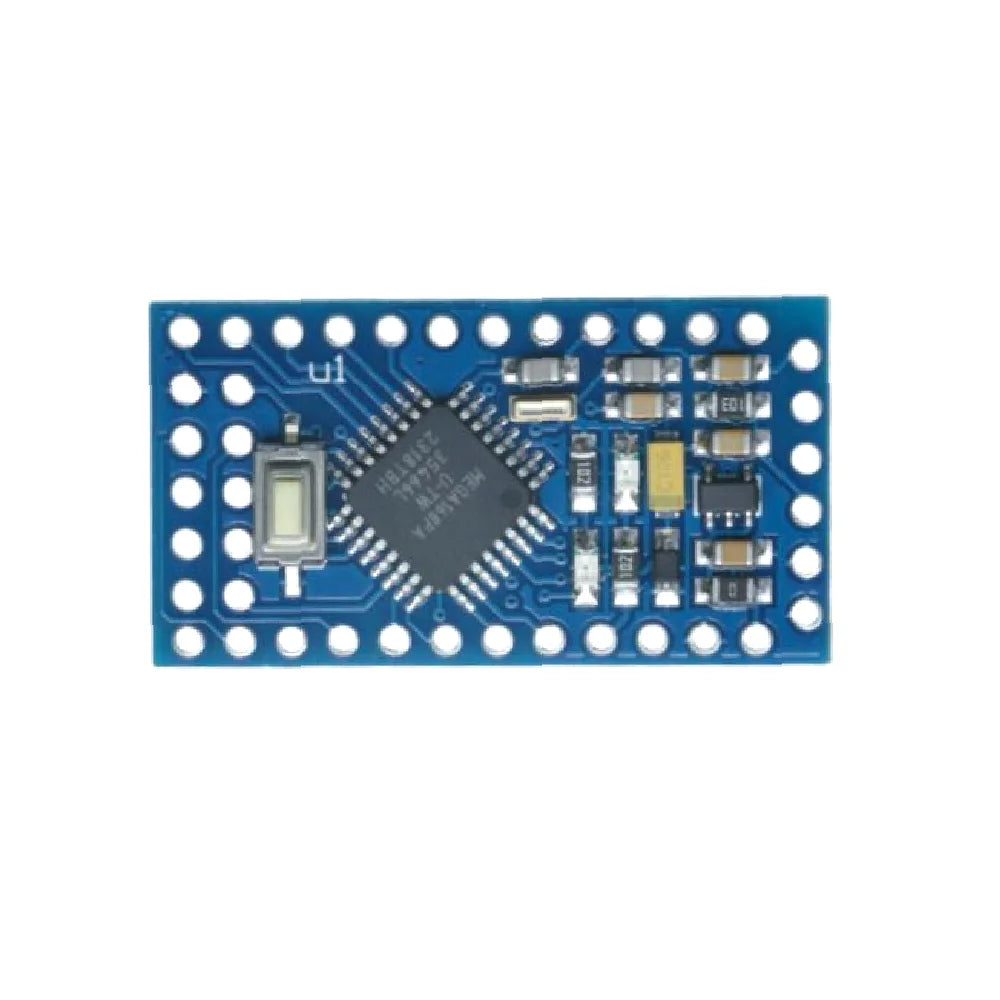

The professional version of Mini Pro is a microcontroller circuit board.  It has 14 digital input/output pins (6 of which can be used as PWM outputs), 8 analog inputs, a 16MHz resonator, a reset button, and mounting hole pin headers.

Technical Parameters:

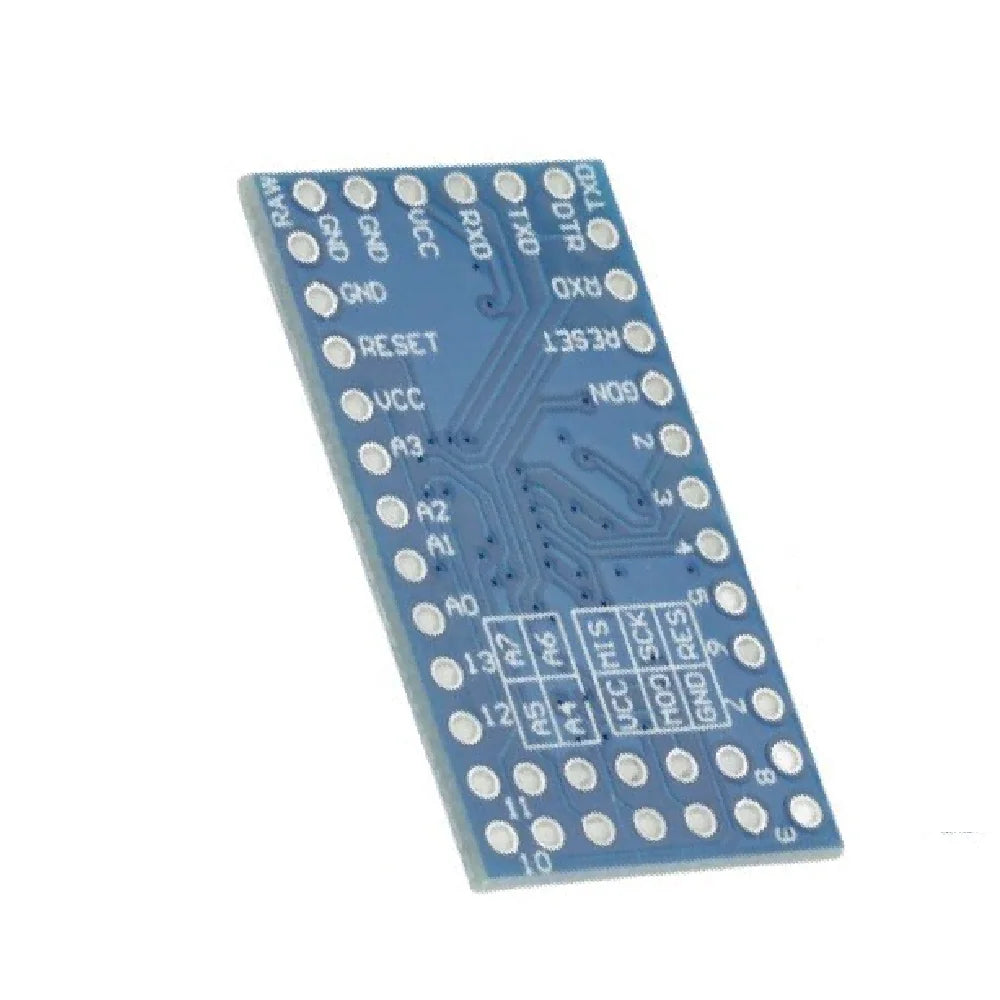

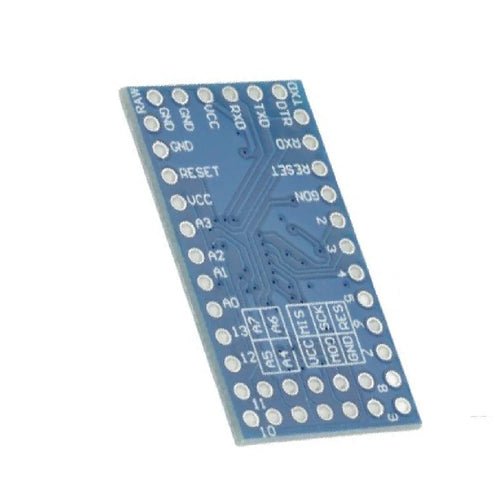

1.  14 digital input/output ports RX, TX, D2~D13,

2.  8 analog input ports A0~A7

3.  1 pair of TTL level serial port transceiver port RX/TX

4.  6 PWM ports, D3, D5, D6, D9, D10, D11

5.  Using Atmel Atmega328P-AU microcontroller

6.  Support serial download

7.  Support external 3.3V~12V DC power supply

8.  Support 9V battery power supply

9.  Clock frequency 16MHz10

10.  Size: 33.3*18.0 (mm)
