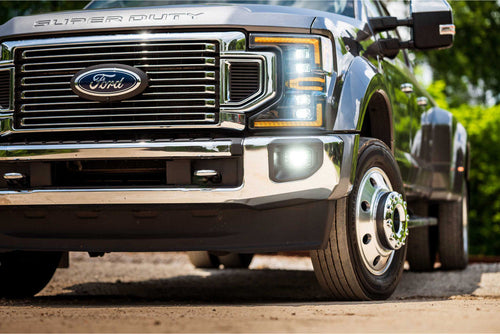

Morimoto 4Banger LED Fog Lights: Ford Super Duty (17-22)

1 15

Sold and shipped by: OffRoadUSA.com

$419.90
$494.00 $419.90
Sale Sold out
Taxes included. Shipping calculated at checkout.
Free Shipping

Out of stock

30 day free returns

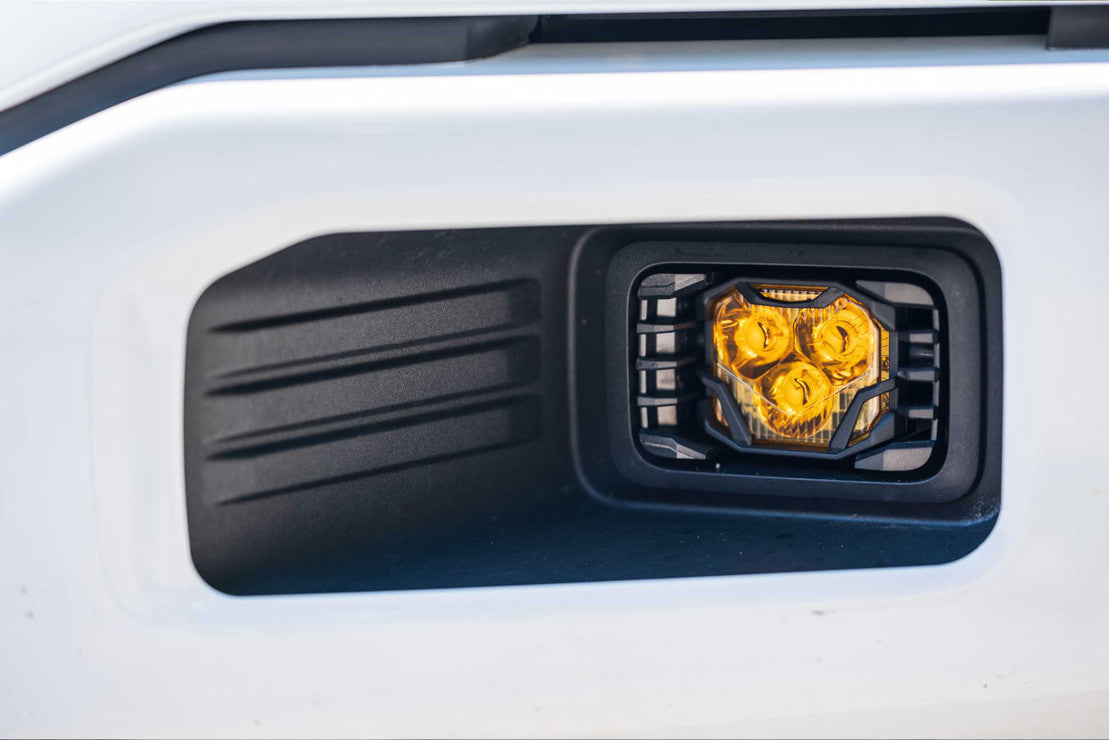

Introducing the Morimoto 4Banger Fog Lights - your ultimate solution for unmatched visibility and style on the road. Our SAE Compliant NCS Wide Beam guarantees street legal brilliance, while the HXB Wide Beam sets a new standard for intensity making it the brightest SAE-compliant pod light available. Engineered for perfection, these fog lights blend seamlessly with your vehicle, thanks to their compact design and customized mounting brackets. Installation is a breeze with our plug-and-play setup, and they're fully adjustable for precise aiming. What sets us apart? Active cooling technology ensures longevity, and our all-weather options guarantee top-notch performance, no matter the conditions. With the HXB Wide Beam being 80% brighter than the competition, and the NCS Wide Beam delivering 14% more brightness while saving 28% on power, these fog lights are your ticket to the best on and off-road lighting experience. Don't settle for less – light up your journey with Morimoto 4Banger Fog Lights!

FEATURES & BENEFITS

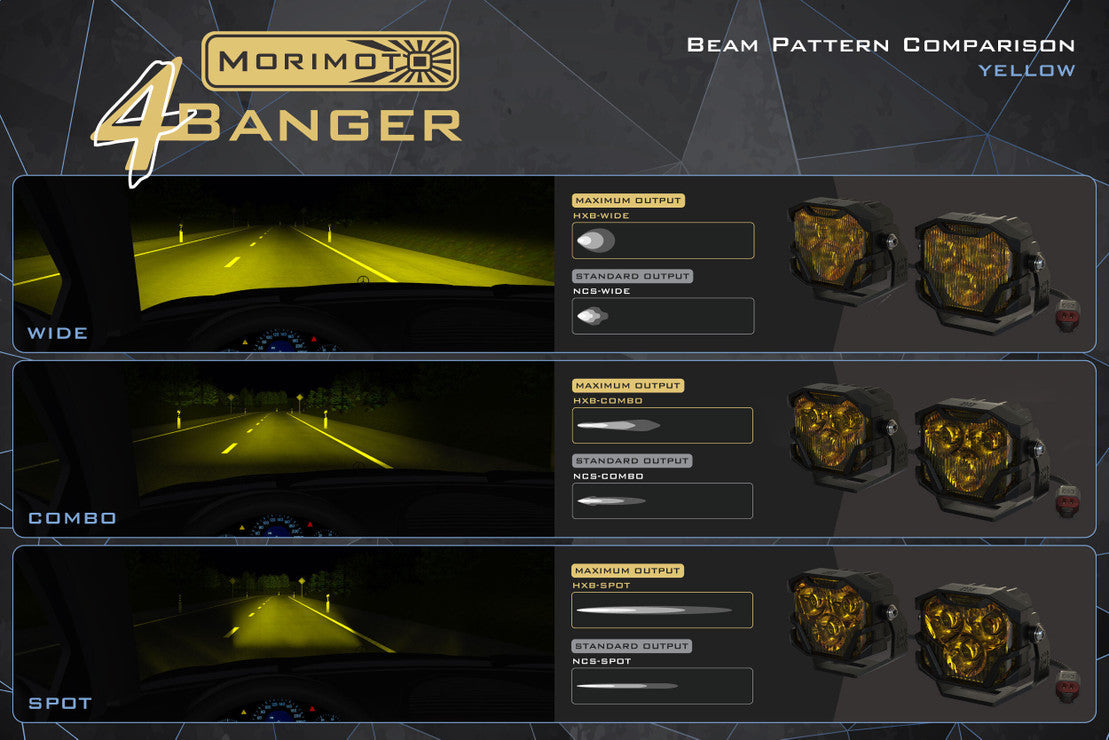

  • SAE-Compliant: Wide beam pattern for street legality and superior visibility.
  • HXB Intensity: Sets a new brightness benchmark in the industry.
  • Easy Installation: Bolt-on, plug-n-play design, no vehicle modifications needed.
  • Fully Adjustable: +/- 6 degrees vertical control to prevent glare for oncoming drivers.
  • Active Cooling: Integrated ductwork for durability and optimal performance.

WHAT’S INCLUDED

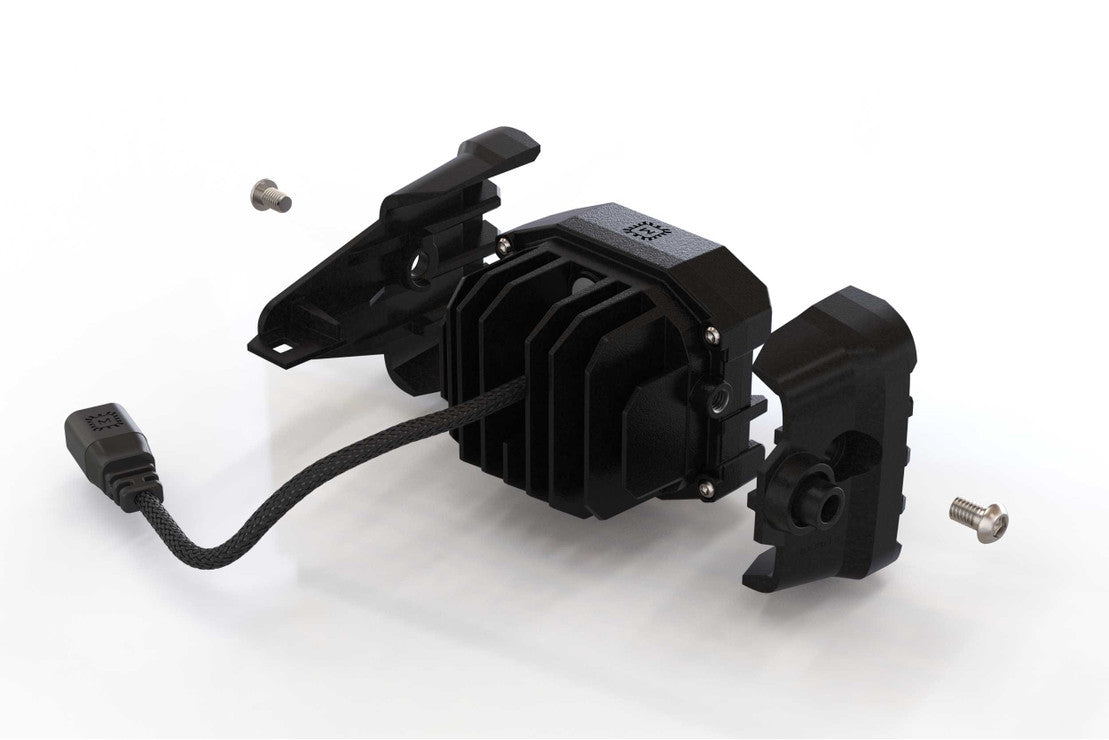

  • Fog Light Brackets: 2x (One Pair) BAF013 Brackets

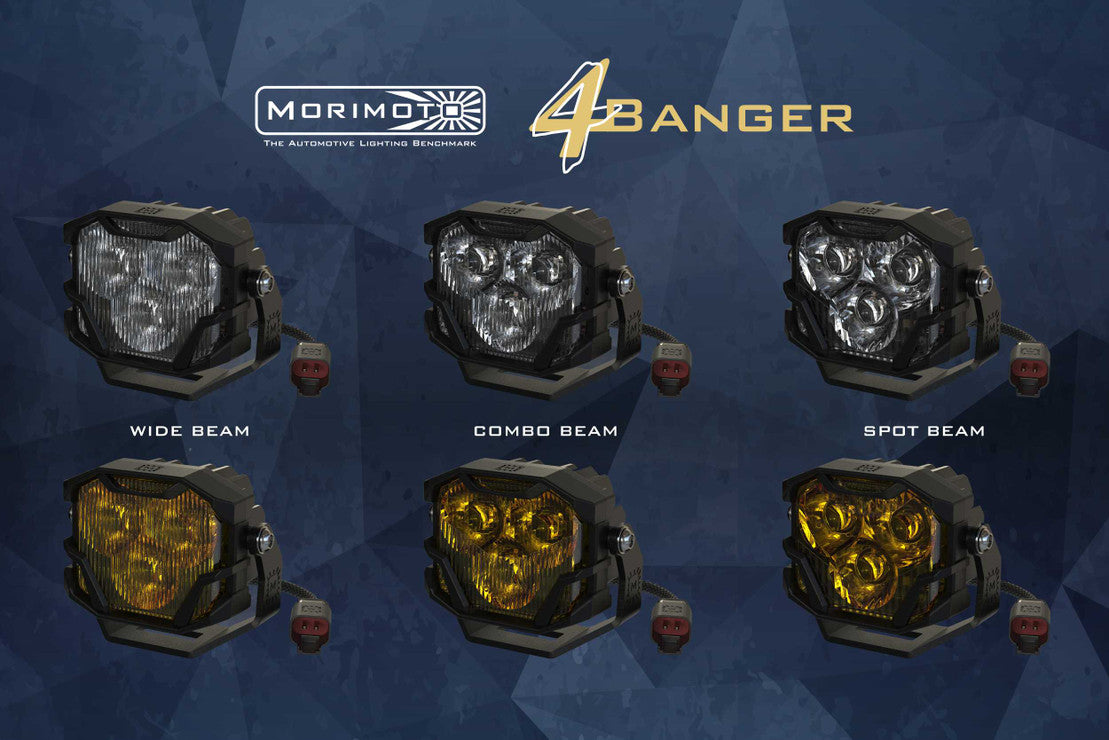

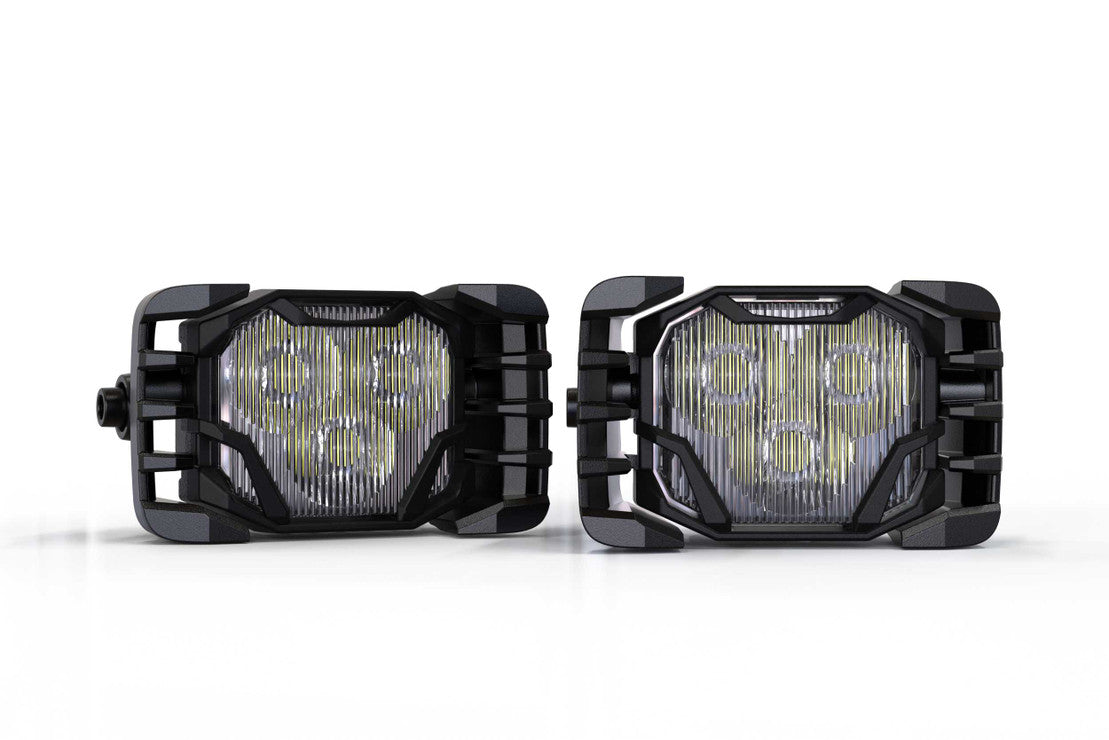

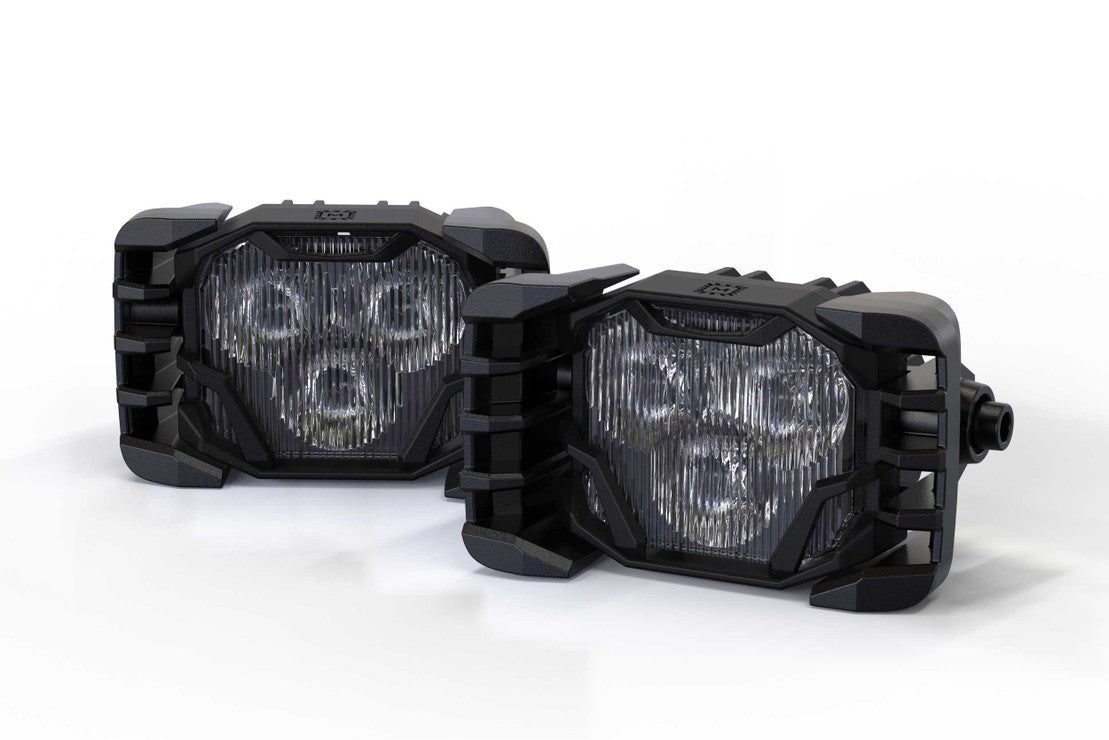

  • LED Pods: 2x (One Pair) Morimoto 4Banger (Optional Color / Beam)

  • Hardware: Complete Pack (Stainless Steel)

  • NOTE: Stock fog light tension springs will be reused!

  • Wiring: Plug N Play Connection Kit

WARRANTY INFORMATION

This Morimoto product includes a Lifetime limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.

COMPATIBILITY

  • FORD F-150: 2015-2020

  • FORD SUPER DUTY: 17-22-2021 (w/o OEM LED Fogs)

  • REPLACES FORD PART #: FL3Z15201B, FL3Z15200B

COMPLIANCE

Wide beam photometrics are SAE F 20 compliant

TECHNICAL SPECIFICATIONS

  • Intensity:

  • NCS Wide Yellow: 8,680 Cd (Post Warm-Up) (86.8lux @ 10m)

  • NCS Wide White: 14,400 Cd (Post Warm-Up) (144lux @ 10m)

  • HXB Wide White: 22,400 Cd (@20 Min / 21C Ambient) (224lux @ 10m)

  • Input Voltage: 9-18V DC

  • Power (stabilized): 15.6w (NCS) 42w (HXB)

  • Current: 1.5A (NCS) or 3.2A (HXB)

  • Peak Luminosity (lm)(Raw): 1,300lm (NCS), 3,000lm (HXB)

  • Dimensions: 82mm W, 67mm H, 60mm D

  • Light Source: 3x Nichia NCSY131F, Nichia NCSW131F, or Osram HX Boost

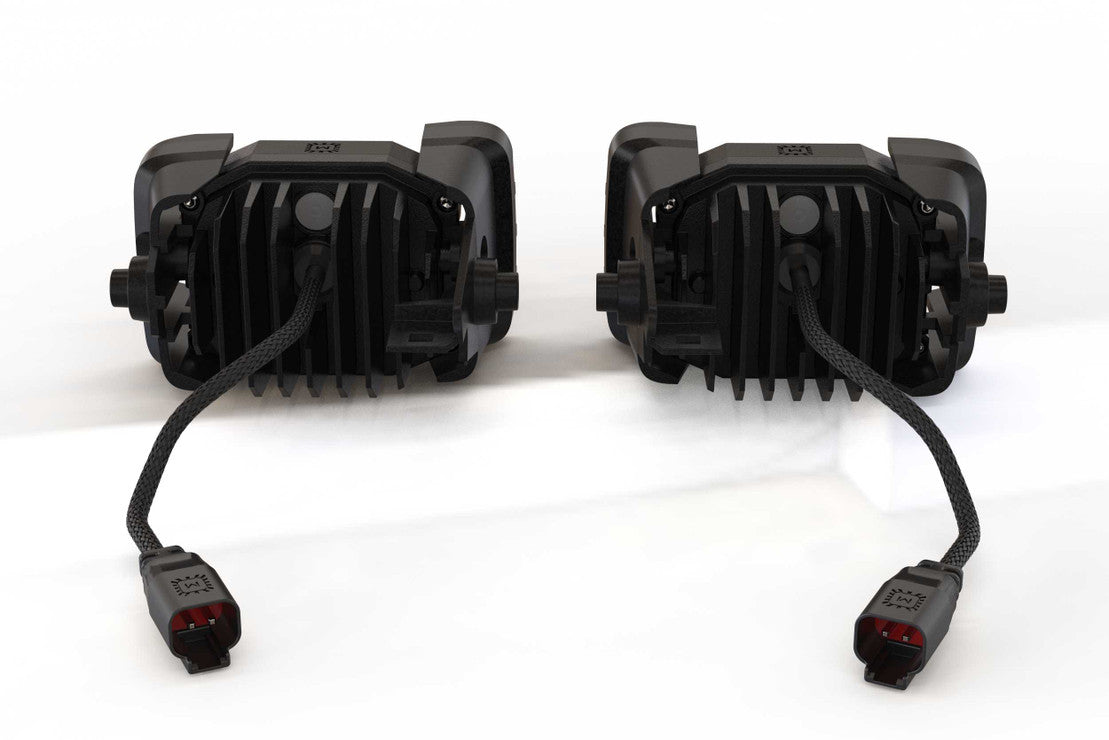

  • Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail

  • Material: Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing)

LINE DRAWINGS
