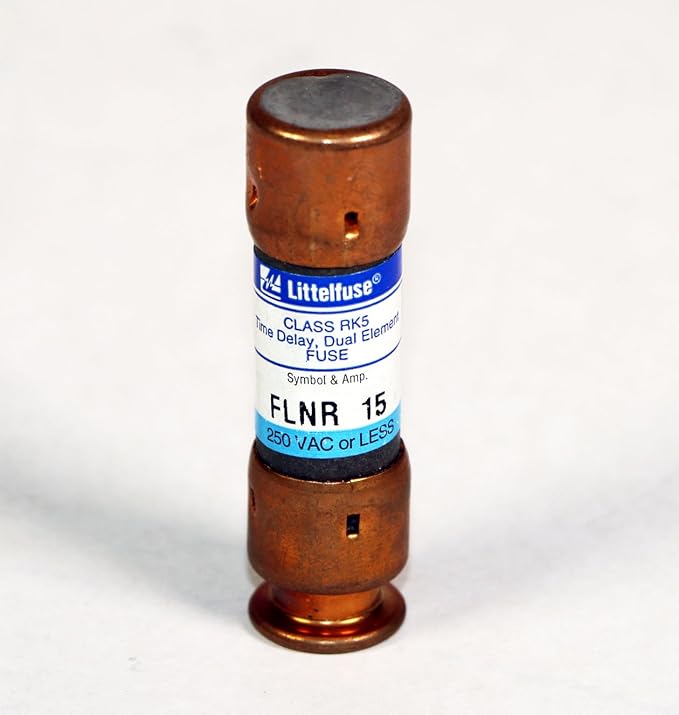

Littelfuse FLNR-15 Time-Delay Fuse

General Information:

• Type: Time-Delay Fuse

• Current Rating: 15 Amps

• Voltage Rating: 250VAC / 125VDC

• Class: RK5

• Interrupting Rating: 200,000 Amps AC, 20,000 Amps DC

Features:

• Dual-Element Design: Provides advanced short-circuit and overload protection.

• Current-Limiting: Helps to minimize the let-through energy during a fault condition.

• Applications: Suitable for service entrance switches, transformers, switchboard mains and feeders, motor control central mains, and motor branch circuits.

Physical Dimensions:

• Length: 2 inches (5.08 cm)

• Diameter: 9/16 inches (1.42 cm)

This fuse is widely used in various general-purpose circuits, especially those containing motors, due to its reliable protection and durability.
