External Wastegate T3 T4 T04E T3 A/R .63 Turbocharger Oil Cooled 4/6 CYL 400+HP Billet T3 Oil cooled Turbo Charger for 1.5L-2.5L
SPECIFICATIONS
Brand Name: MXR
Country/Region of Manufacture: cn us de au uk
Hign-concerned Chemical: None
Interchange Part Number: Turbo type:T3/T4 T3T4 T04E .63 A/R TURBO
Item Height: 23cm
Item Length: 26cm
Item Weight: 7.5kg
Item Width: 25cm
Manufacturer Part Number: Turbo Turbocharger Turbolader
Material: High performance Aftermarket replacement
OEM NO.: T3 T4
Origin: Mainland China
Other Part Number: Capable of Boosting Horse Power up to 400HP
Placement on Vehicle: T3/T4 Flange
Special Features: Universal turbo for 1.6L to 2.3L engine
Notice:
Pick up service is not available.
This turbo is an aftermarket application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Notice:Please confirm that your car's displacement is between 1.5-2.5L .Please check the size before purchasing and make sure that your car has enough space to install this turbo.
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine up to 400+HP
Horse Power: Capable of Boosting Horse Power up to 400HP
Maximum 18PSI
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Type：Street
Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Compressor Outlet：45mm(inside diameter)、53mm(Outer diameter)
Compressor Inlet：68 mm(inside diameter)、72mm(Outer diameter)

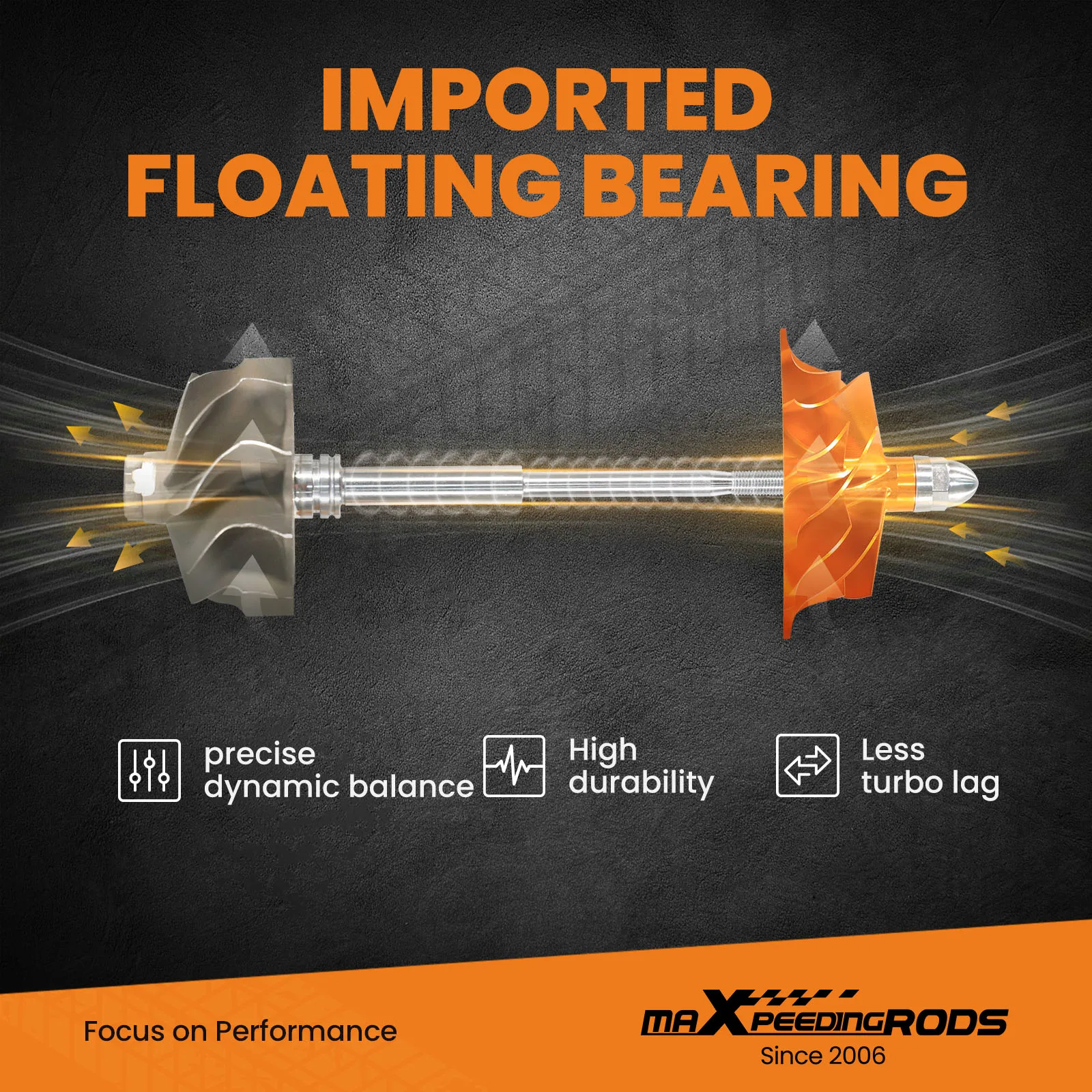

Bearing: Wet Float Bearing
Feature
*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃

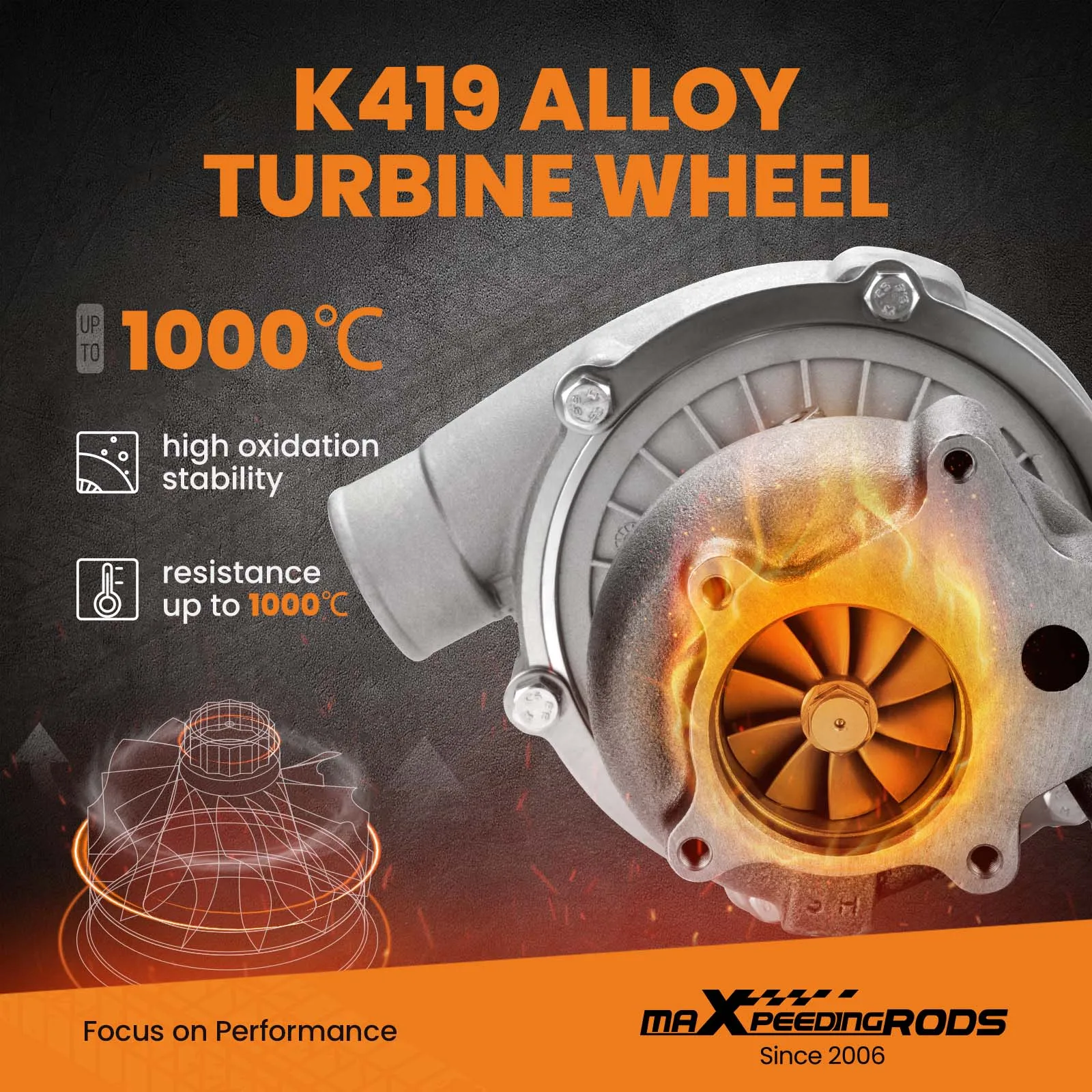

2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃

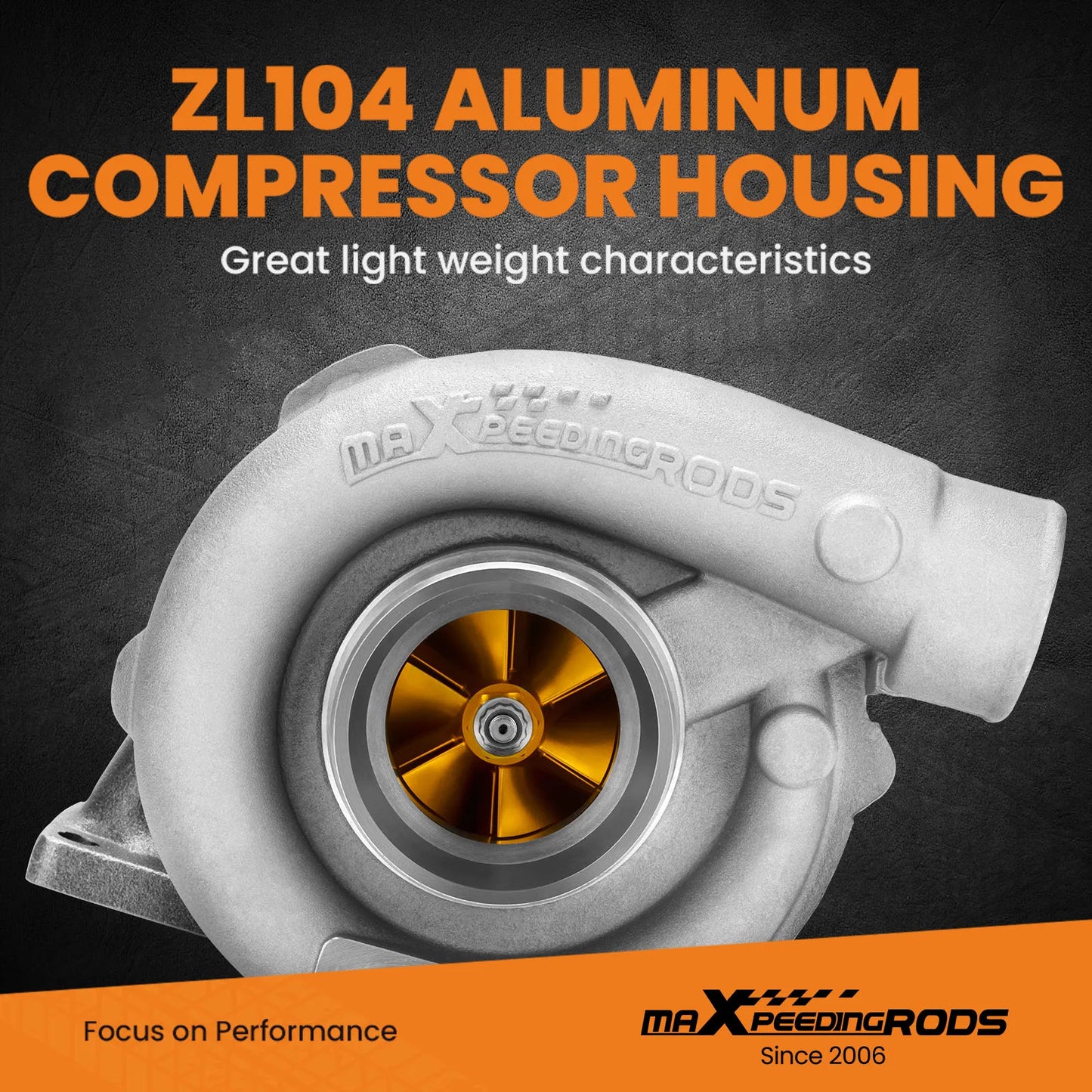

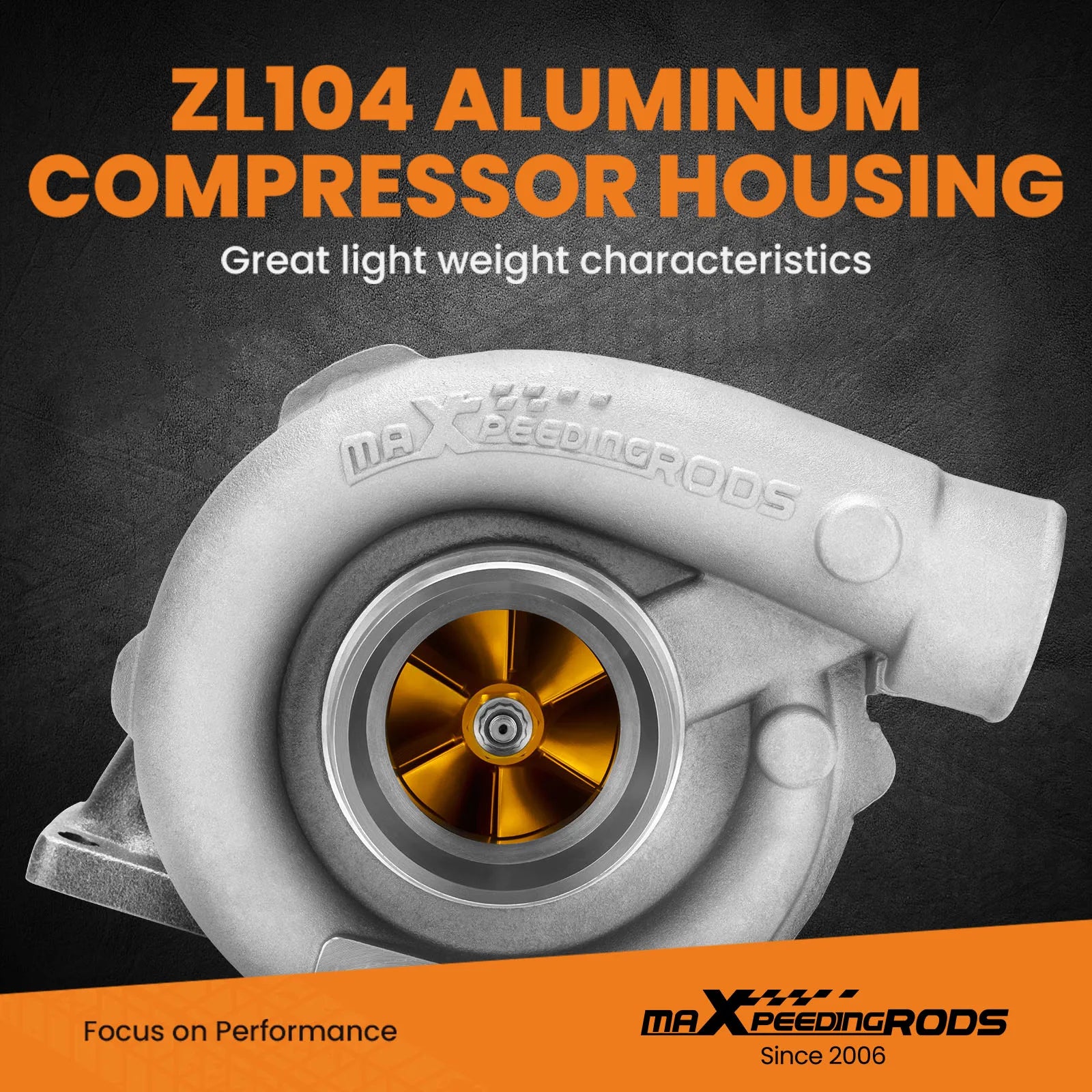

3. Compressor housing：ZL104 aluminum with lightweight

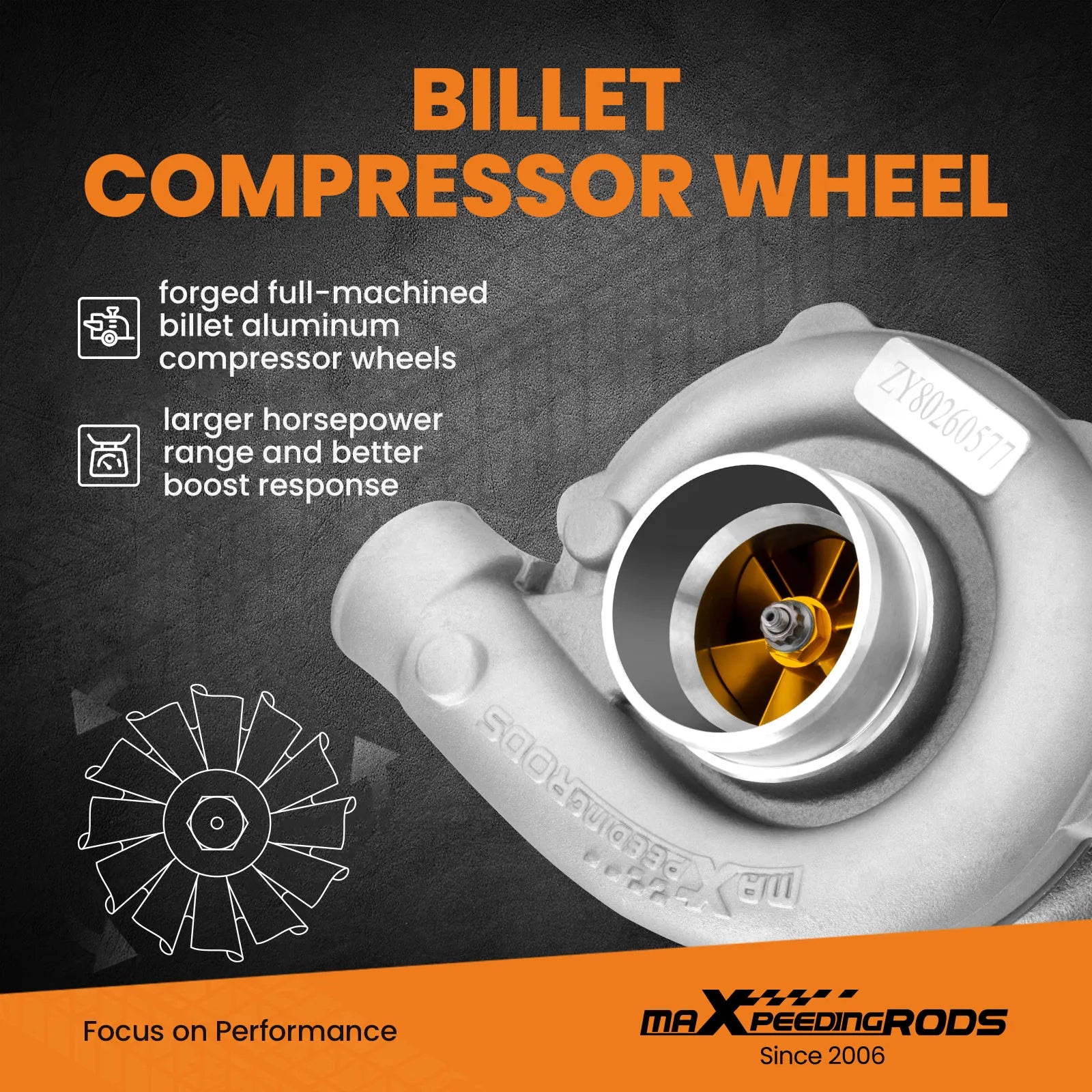

4. Compressor wheel/blades：Aluminum blades-precision machining forging and light weight design
*Product Performance

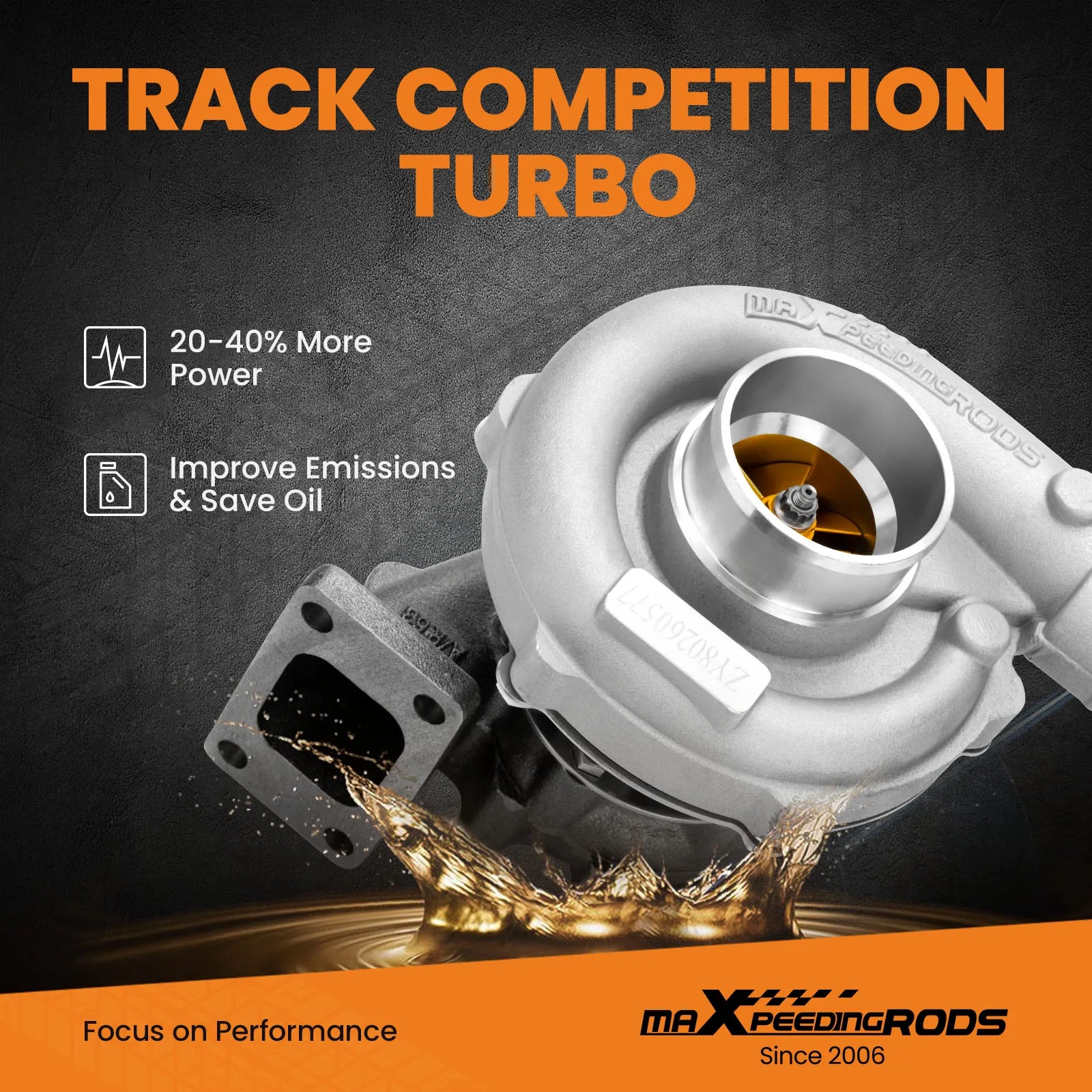

1. Cost-effective turbo increase 20-40% power for your car
2. Excellent high temperature resistance，high efficiency and durability

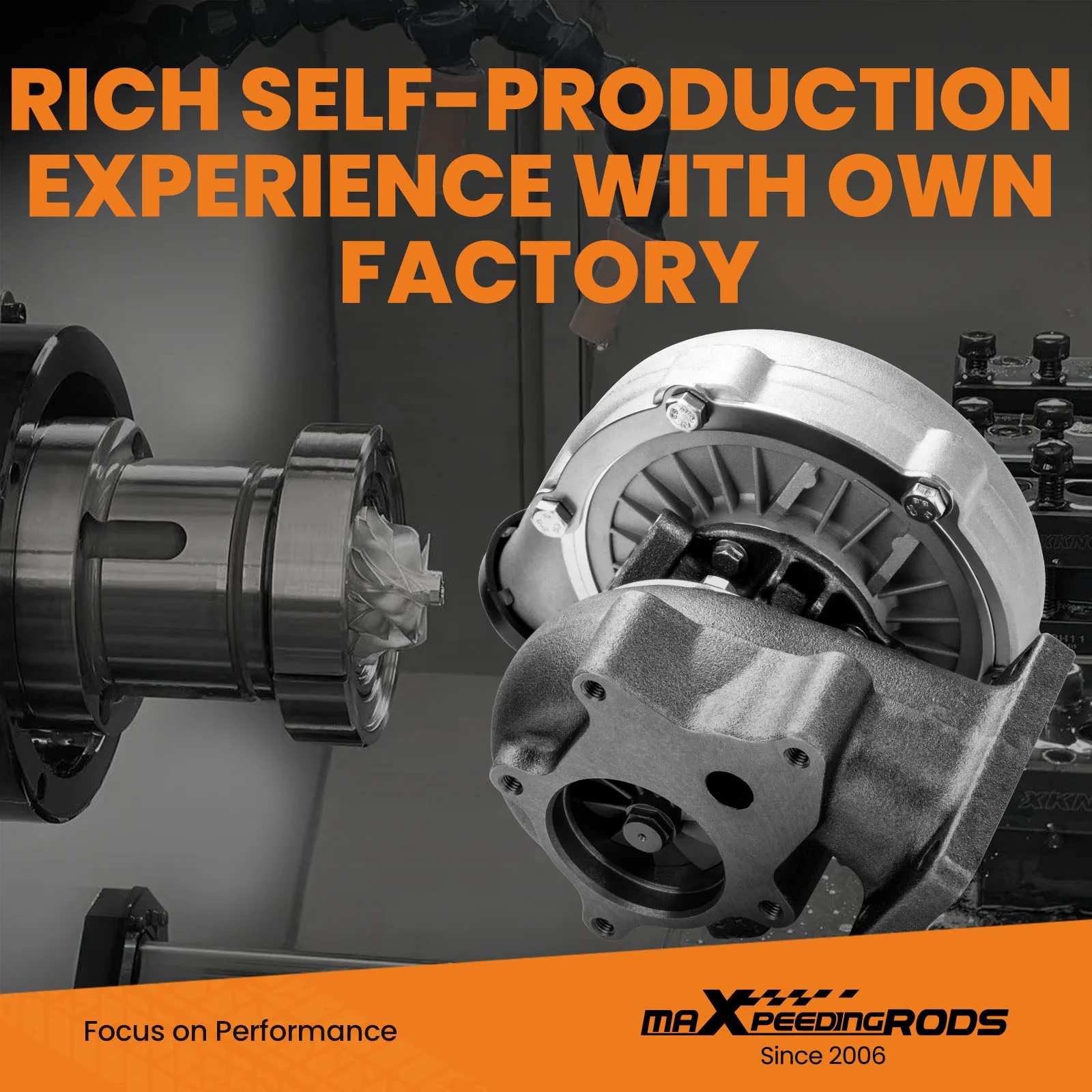

3. Rich experience in turbo production and own factory
4. Quality assurance
5. High-speed oil seal ring

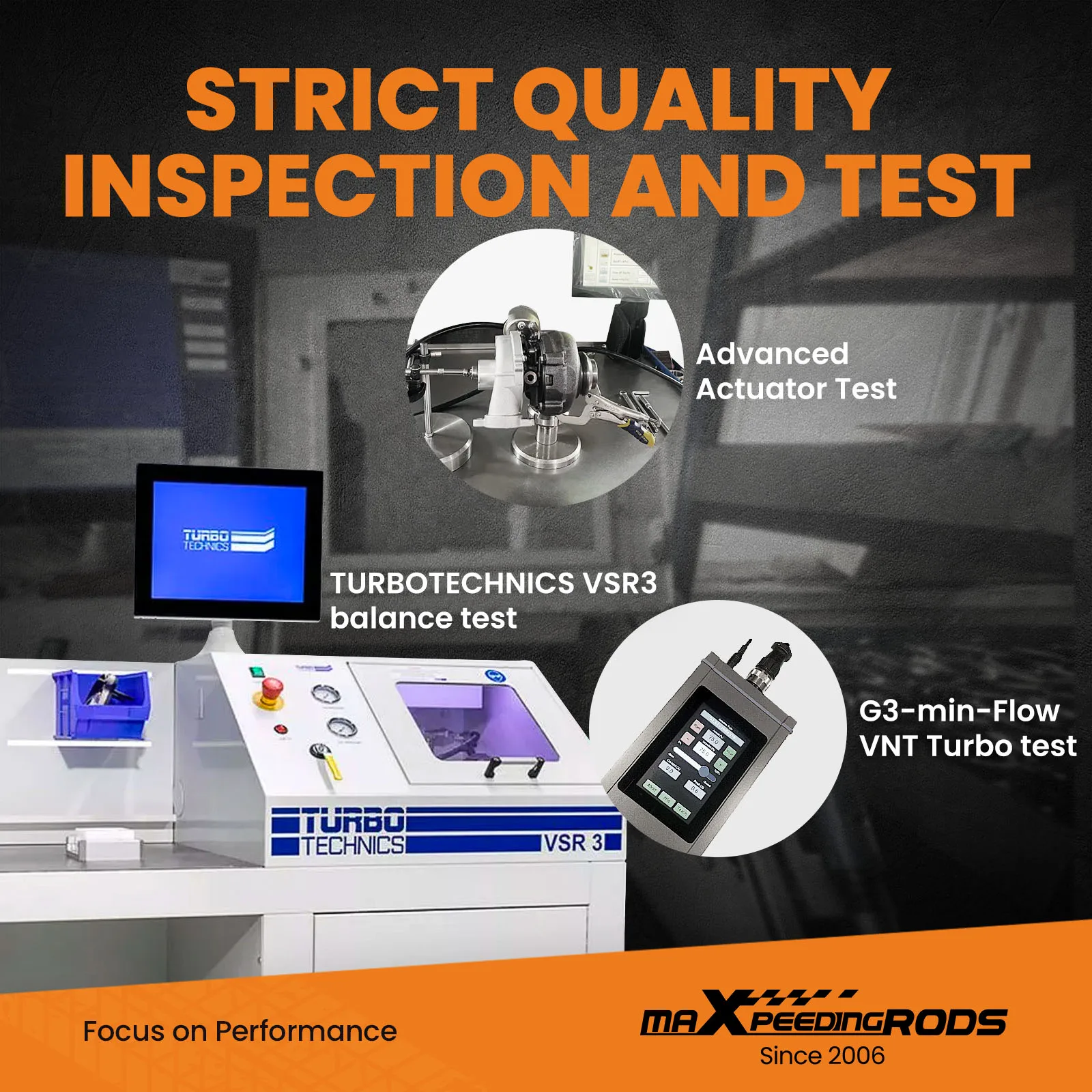

6. Strict quality inspection
7. Improve emissions & save oil

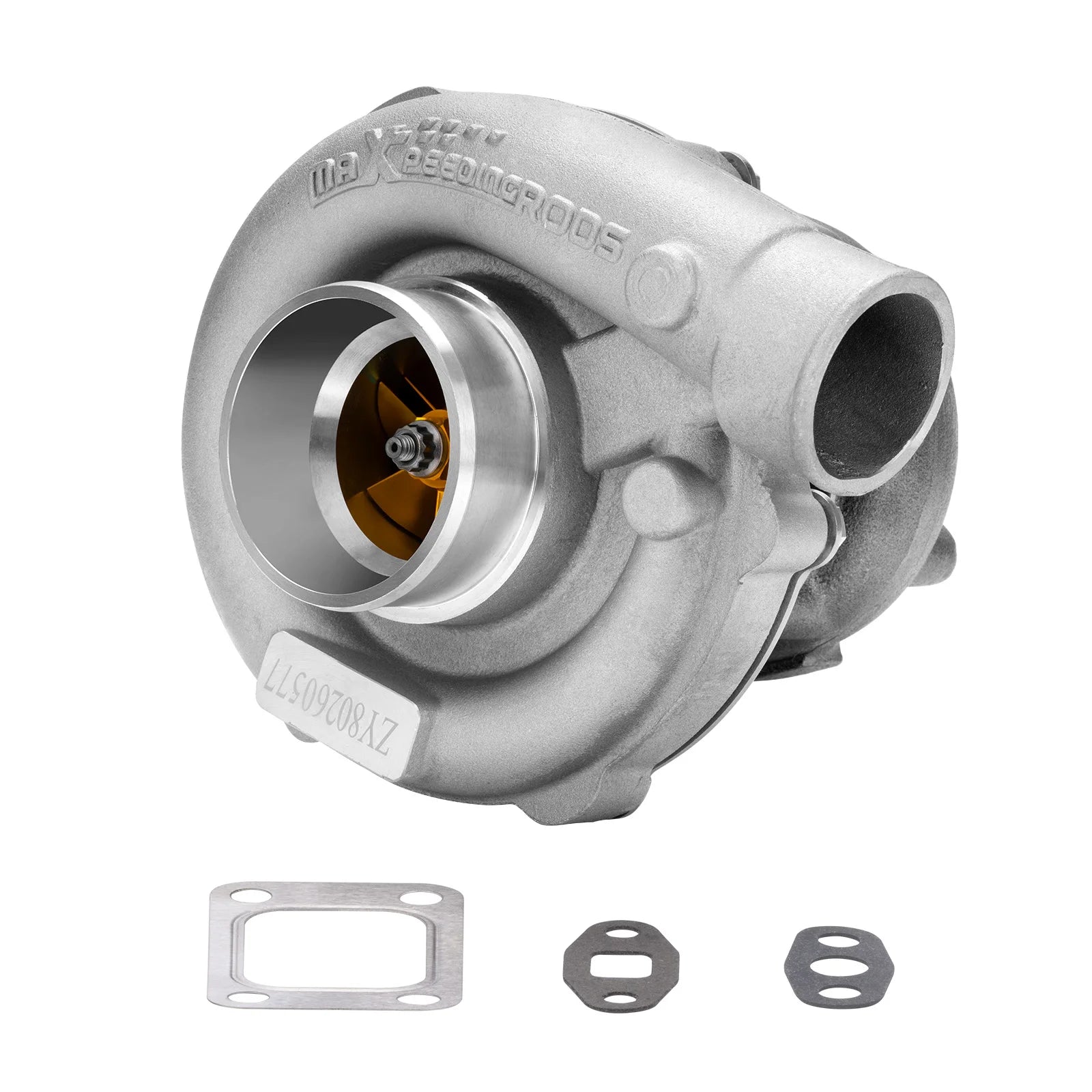

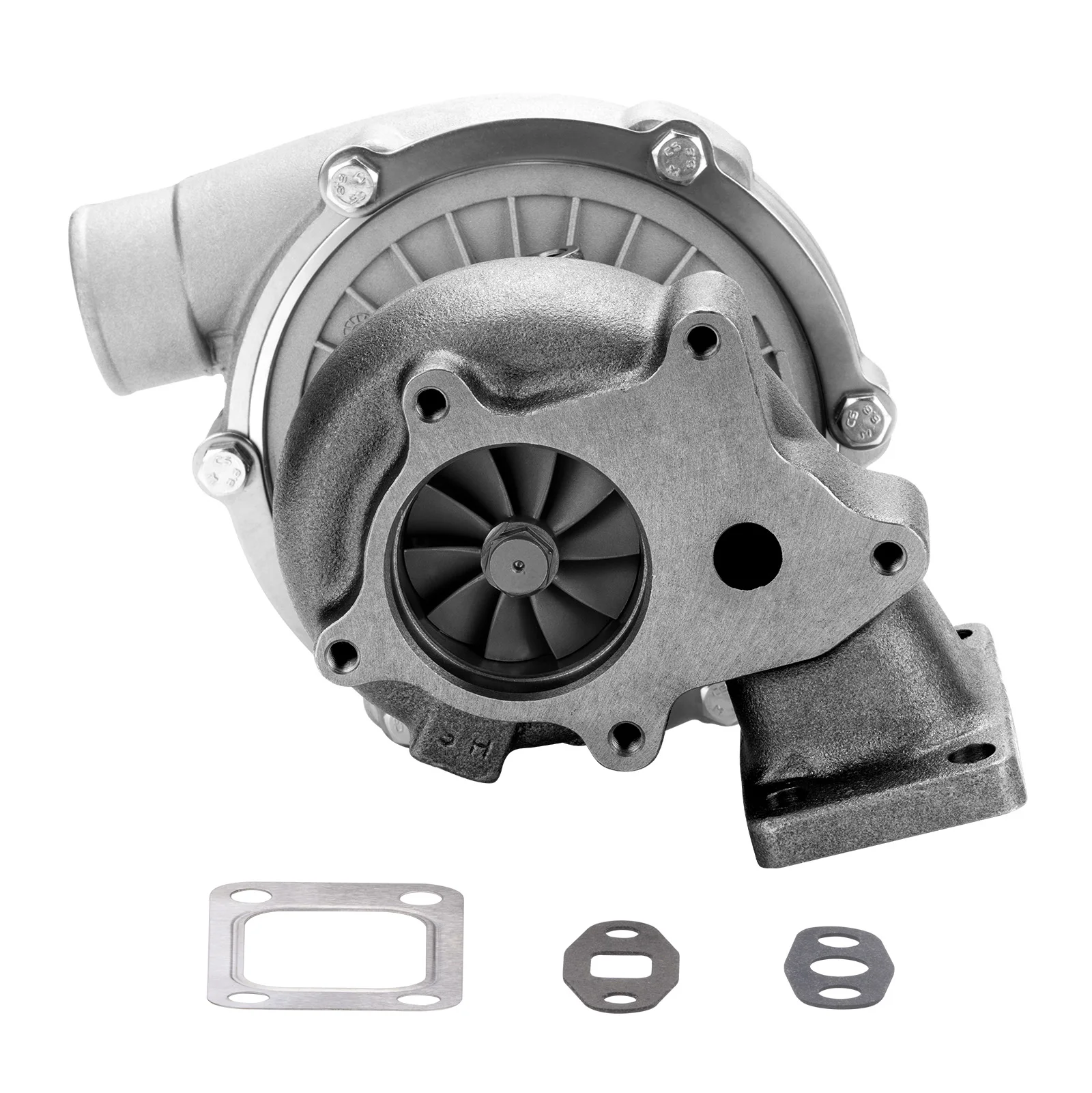

*All necessary gaskets included for ease of installation
Notice
*100% Brand New
* Professional Installation is Highly Recommended， Instruction is NOT Included
*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
*Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
SPECIFICATIONS
Brand Name: MXR
Country/Region of Manufacture: cn us de au uk
Hign-concerned Chemical: None
Interchange Part Number: Turbo type:T3/T4 T3T4 T04E .63 A/R TURBO
Item Height: 23cm
Item Length: 26cm
Item Weight: 7.5kg
Item Width: 25cm
Manufacturer Part Number: Turbo Turbocharger Turbolader
Material: High performance Aftermarket replacement
OEM NO.: T3 T4
Origin: Mainland China
Other Part Number: Capable of Boosting Horse Power up to 400HP
Placement on Vehicle: T3/T4 Flange
Special Features: Universal turbo for 1.6L to 2.3L engine
Notice:
Pick up service is not available.
This turbo is an aftermarket application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.
Notice:Please confirm that your car's displacement is between 1.5-2.5L .Please check the size before purchasing and make sure that your car has enough space to install this turbo.
Application
Compatible for 1.5L to 2.5L any 4/6 cylinder engine up to 400+HP
Horse Power: Capable of Boosting Horse Power up to 400HP
Maximum 18PSI
Cooling Type: Oil Cooled
Wastegate: External Wastegate
Type：Street
Specification
Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 5 bolt Flange
Turbine Trim: 74.2
Turbine Inducer Diameter: 64.8 mm
Turbine Exducer Diameter: 55.8mm
Turbine A/R: 0.63
Compressor Trim: 48.1
Compressor Inducer Diameter: 52.7 mm
Compressor Exducer Diameter: 76 mm
Compressor A/R: 0.5
Compressor Outlet：45mm(inside diameter)、53mm(Outer diameter)
Compressor Inlet：68 mm(inside diameter)、72mm(Outer diameter)
Bearing: Wet Float Bearing
Feature
*Product Material
1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight
4. Compressor wheel/blades：Aluminum blades-precision machining forging and light weight design
*Product Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. Quality assurance
5. High-speed oil seal ring
6. Strict quality inspection
7. Improve emissions & save oil
*All necessary gaskets included for ease of installation
Notice
*100% Brand New
* Professional Installation is Highly Recommended， Instruction is NOT Included
*Additional parts will be needed for a complete installation. Please consult professional turbo installer for details.
*Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
-
