Eaton 5PX Gen2 UPS

Exceptional efficiency, manageability and energy metering capabilities for IT managers | Performance and efficiency

• Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
• Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduce energy consumption and cooling costs.
• When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
• Each 5PX Gen2 battery configuration provides the best size/runtime ratio.

Management and Cybersecurity

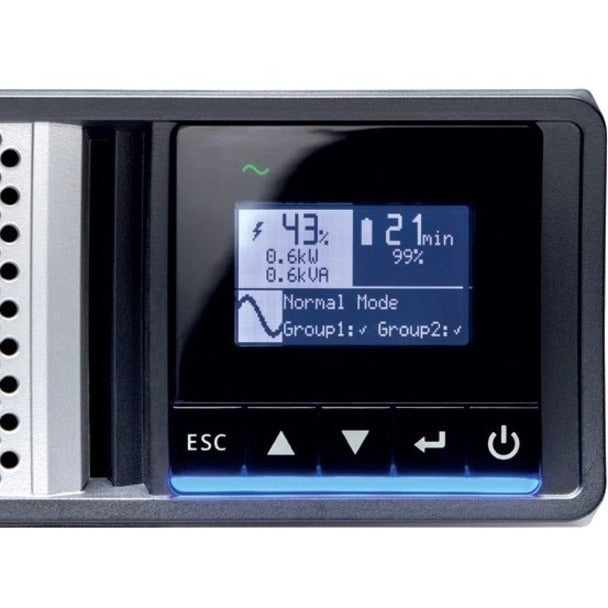

• Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
• 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
• Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost.
• 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton's Intelligent Power Software.
• Eaton's Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools.

Availability and flexibility

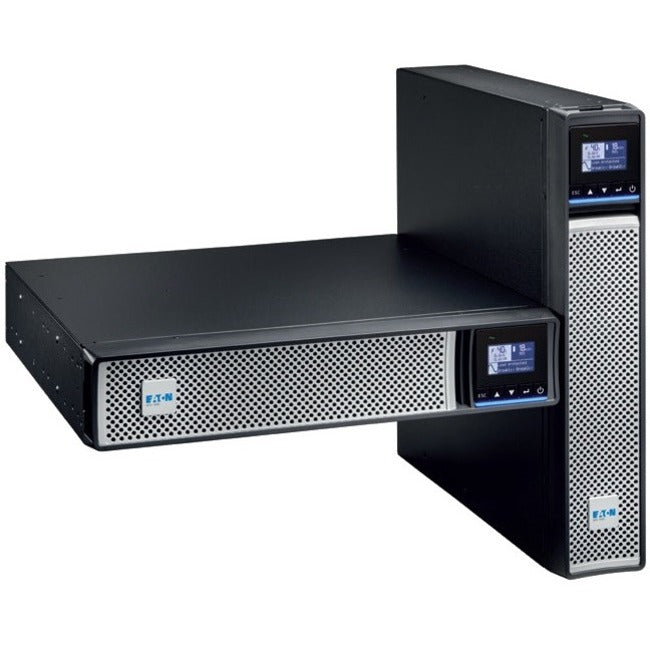

• 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
• 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups).
• Eaton ABM® battery management technology uses a three- stage charging technique that optimizes battery health and extends lifetime by up to 50%.
• Up to 4 external hot-swappable battery modules can be added for longer power availability.

• Works adequately in situations where the supply is prone to sags and surges
• Prevent critical data loss by staying powered during a blackout with up to 3000 W load capacity
• 3000 VA load capacity - work without any interruption during power outages
• IEC 60320 C13 (10A) receptacle type offers ease of operation with maximum efficiency
• Single Phase phase for your convenience and optimal usage
• Line-interactive UPS with network application/usage to ensure maximum dependability and optimal performance
• 230 V AC input voltage for maximum feasibility and added productivity
• 200 V AC output voltage for optimal performance with maximum feasibility
• Rack/Tower form factor for your convenience and simplicity of usage
