CyberPower OL10KRTHD Smart App Online UPS Systems

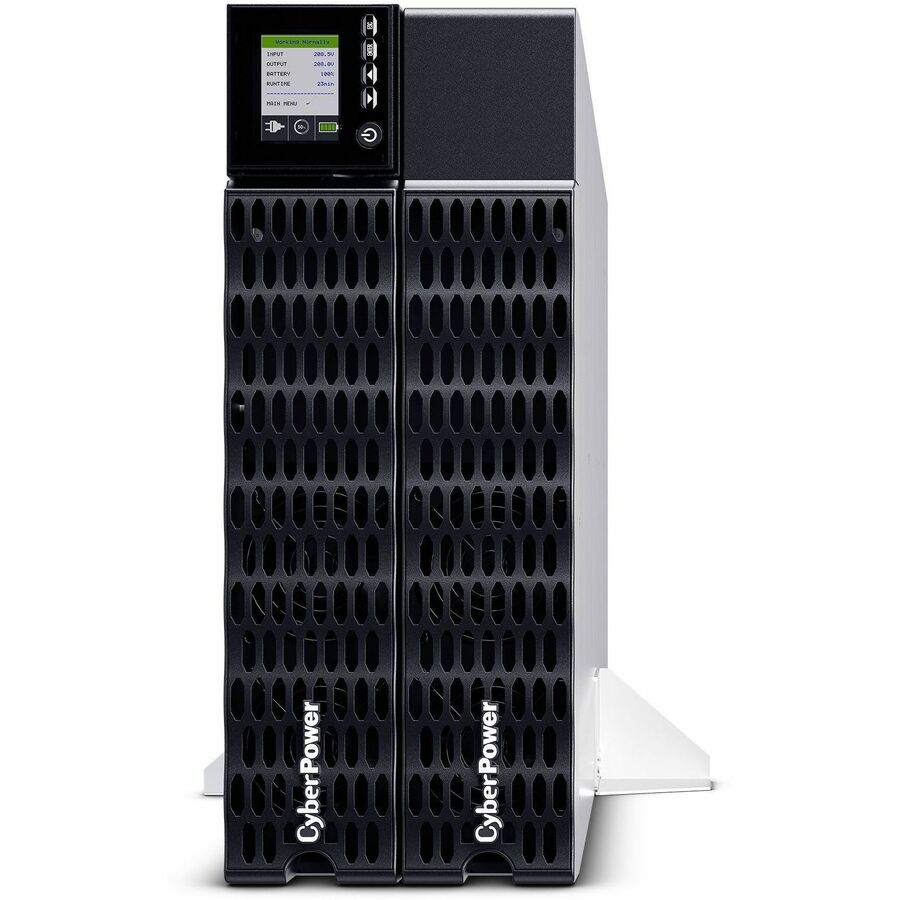

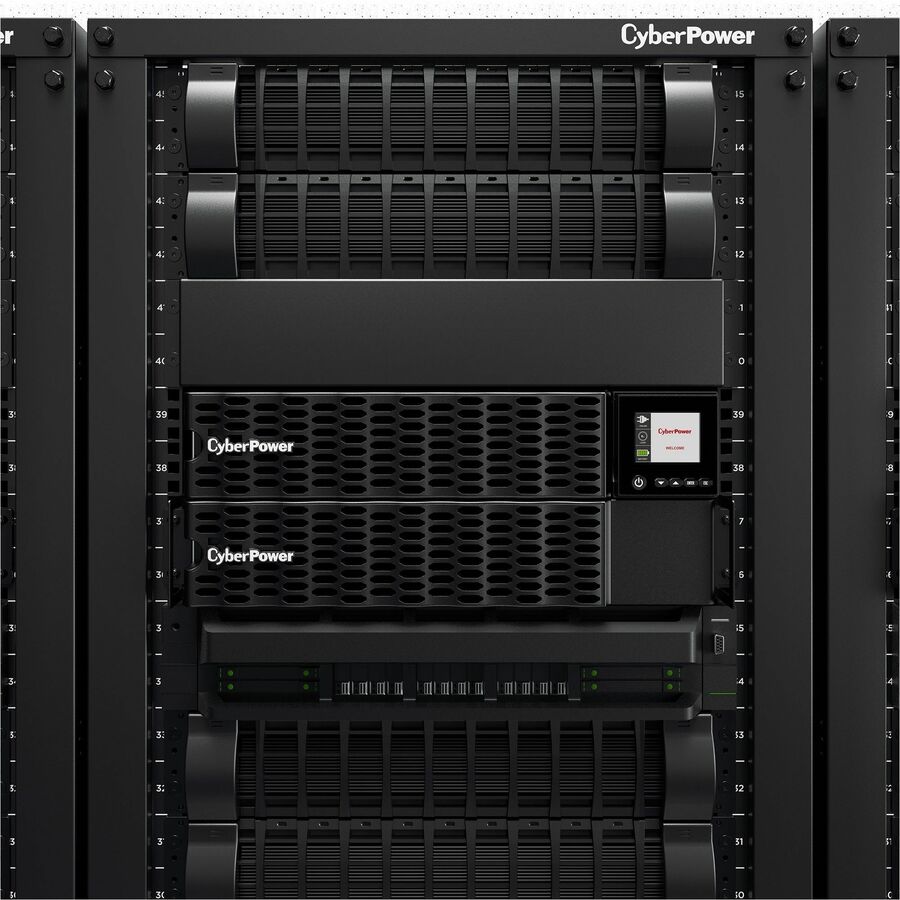

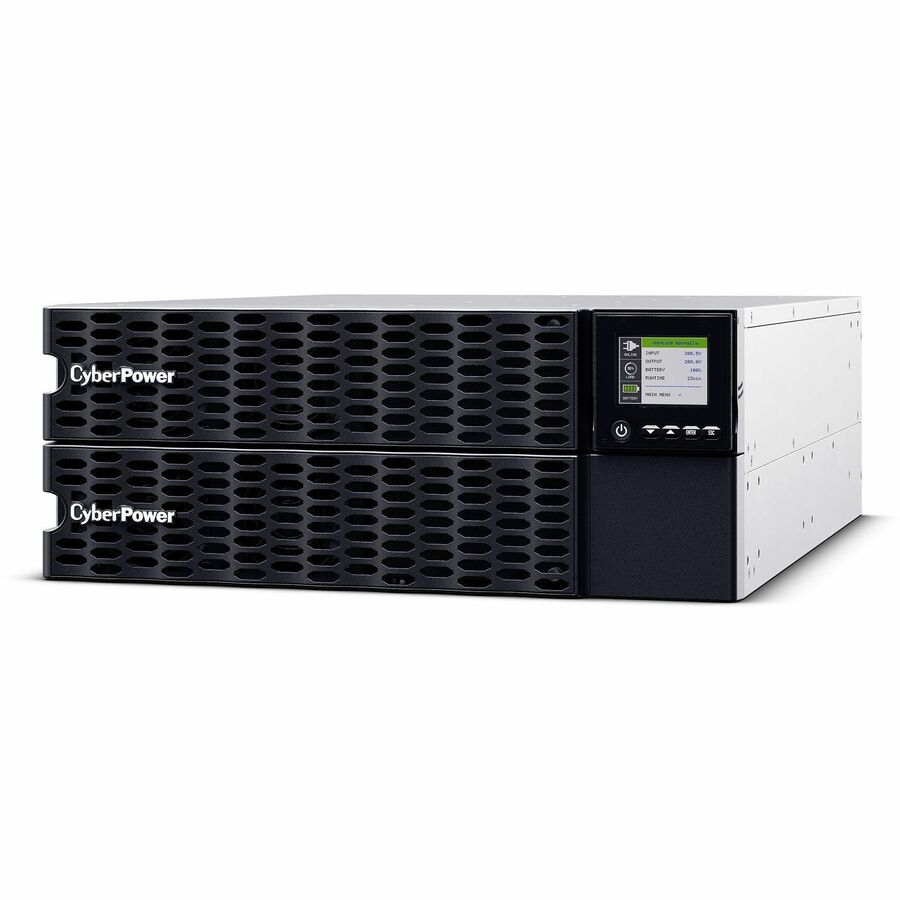

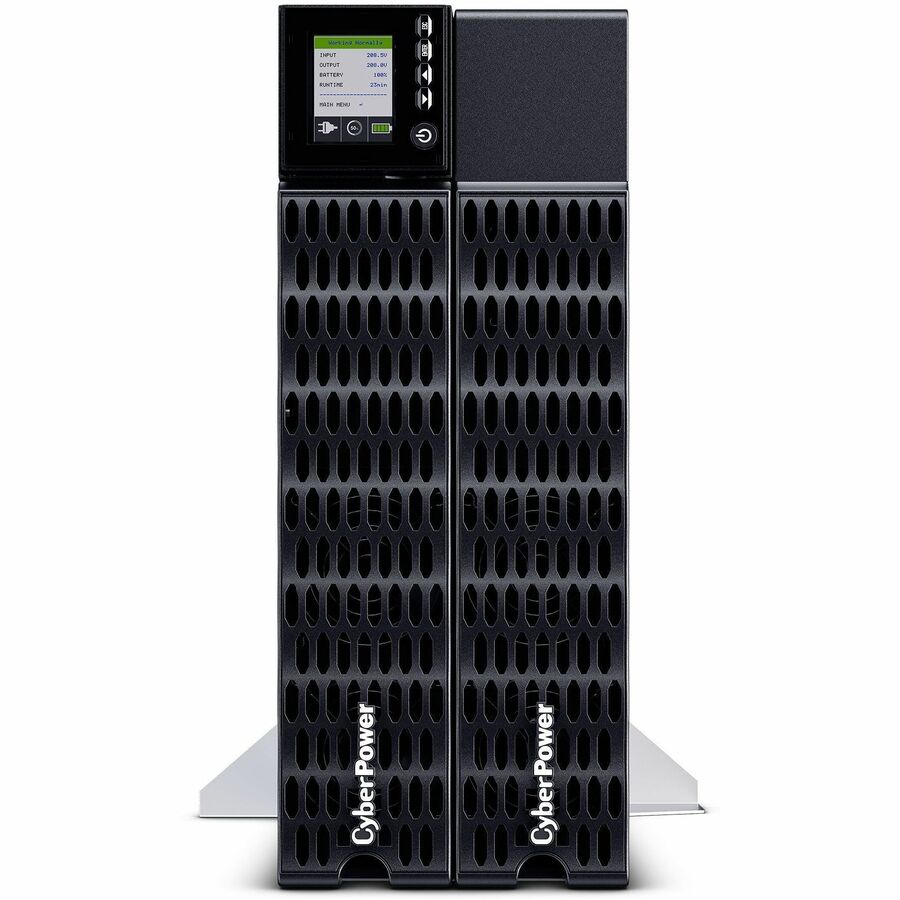

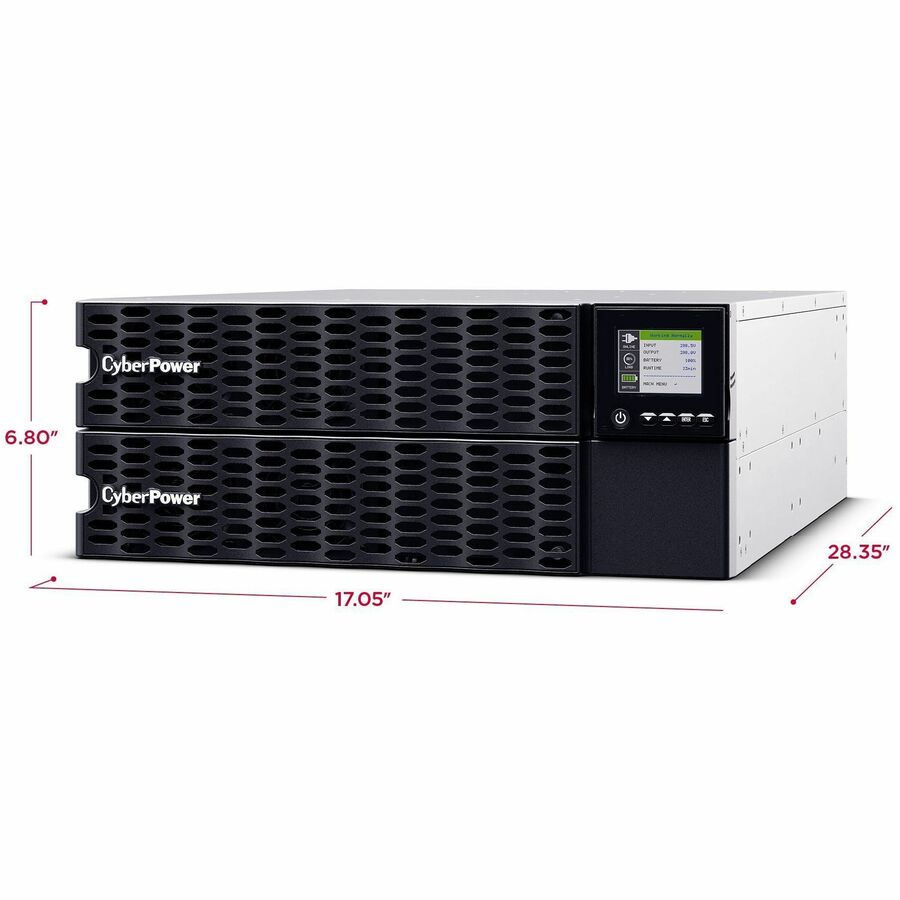

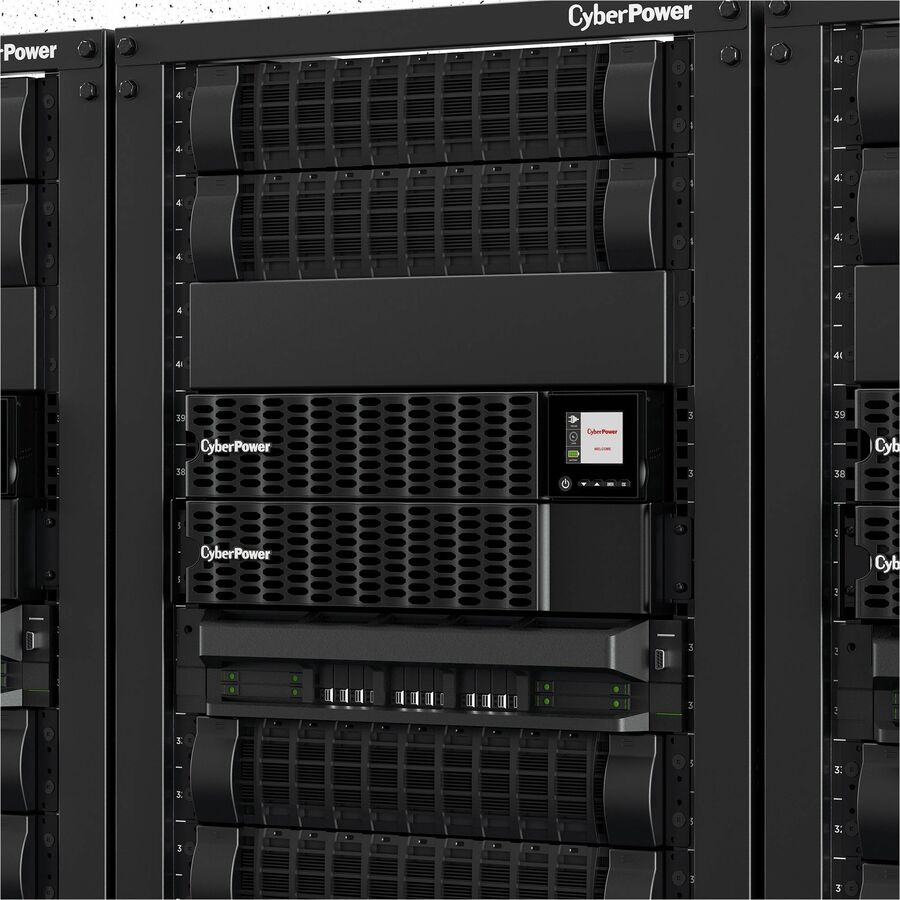

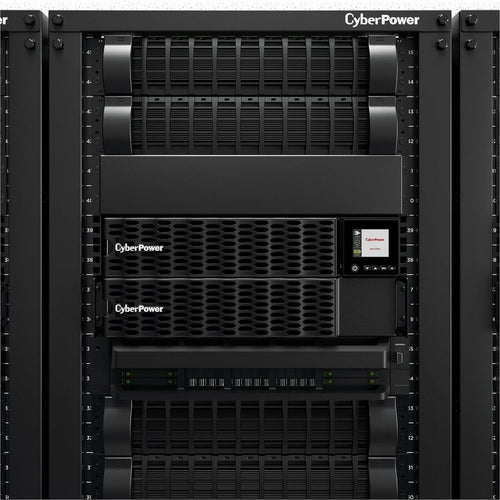

The CyberPower Smart App Online OL10KRTHD high-density design offers more power in less space. In fact, it can be configured into 4U of rack space or as a tower, compared to 6U for similar competitive UPS models - giving you more room to grow. The OL10KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.

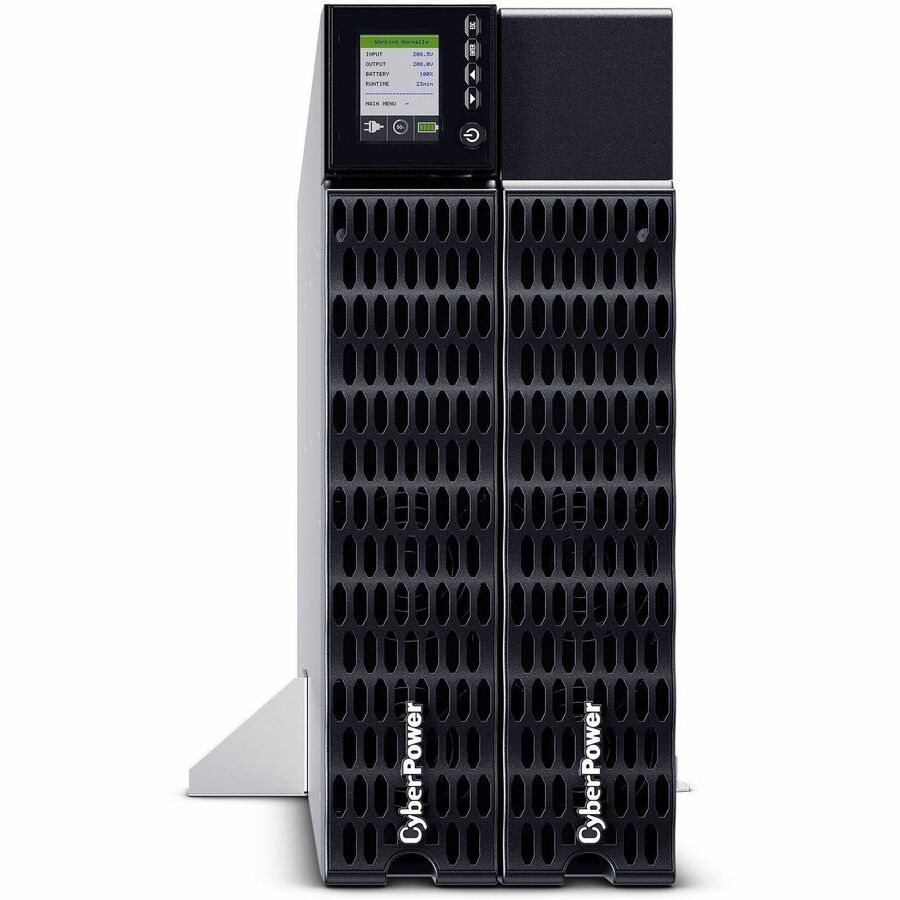

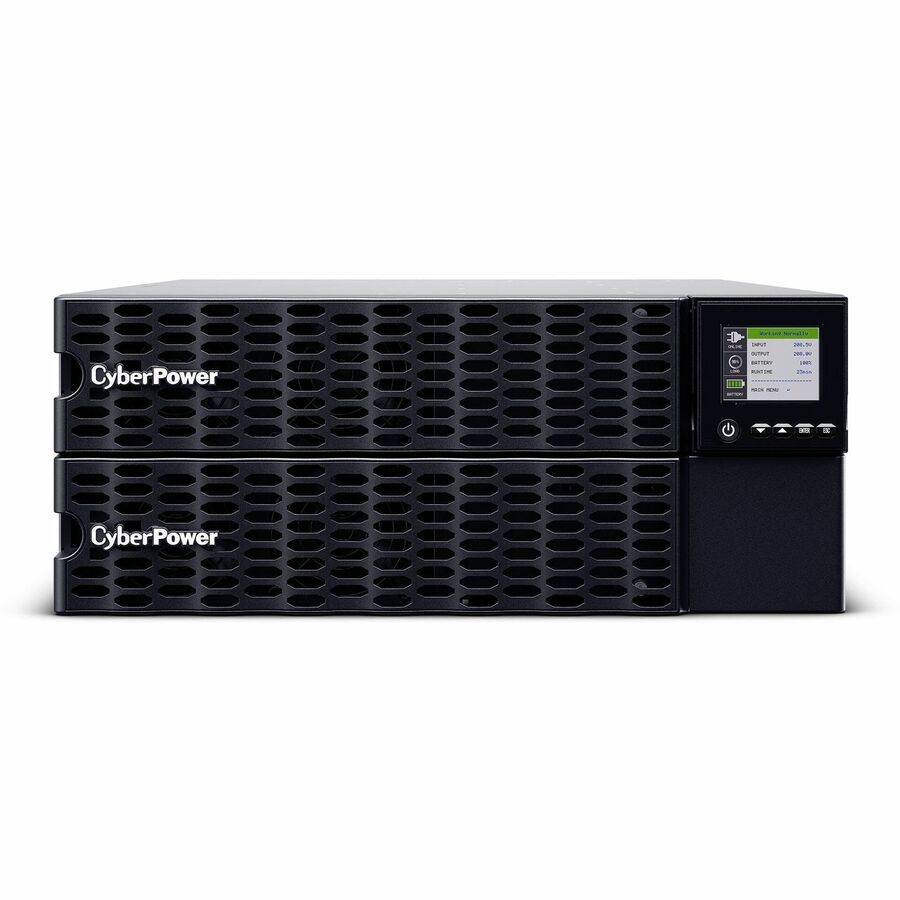

For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.

The OL10KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables > 98% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.

The optional BP192VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a ,300,000 Connected Equipment Guarantee.

• Capacity: 10,000 VA / 10,000 W
• High Density: 4U Size
• Power Factor (PF): 1
• Topology: Double-Conversion
• Waveform: Sine Wave
• Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
• Plug type: Hardwire

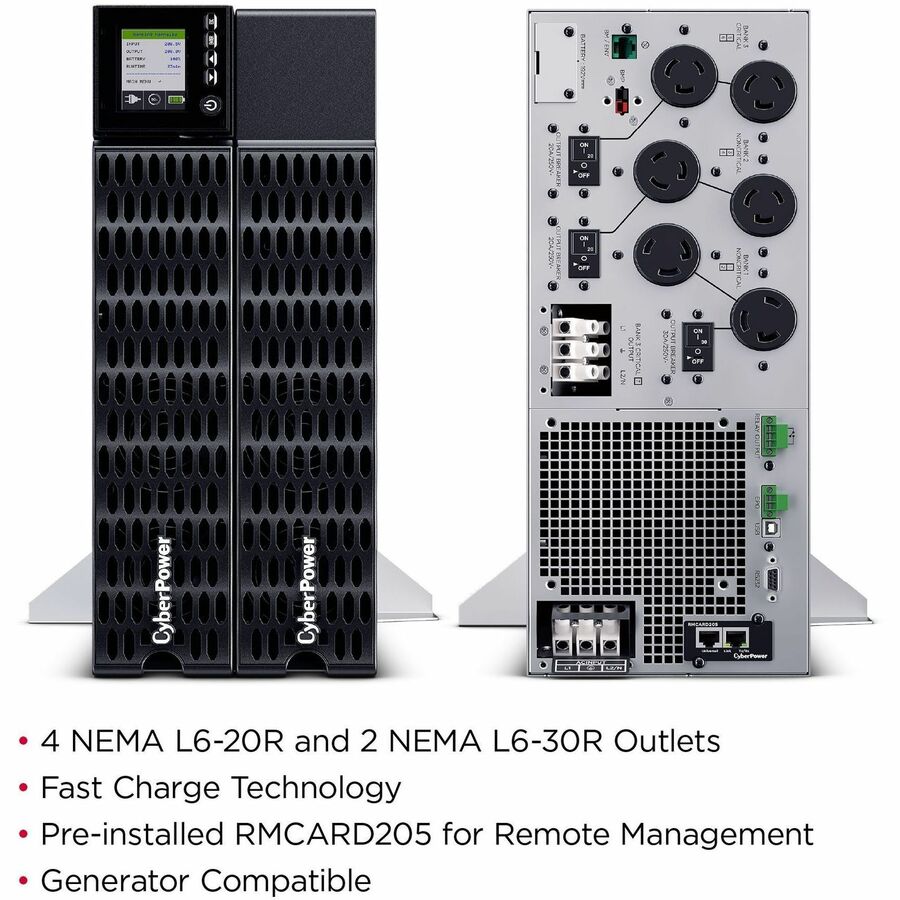

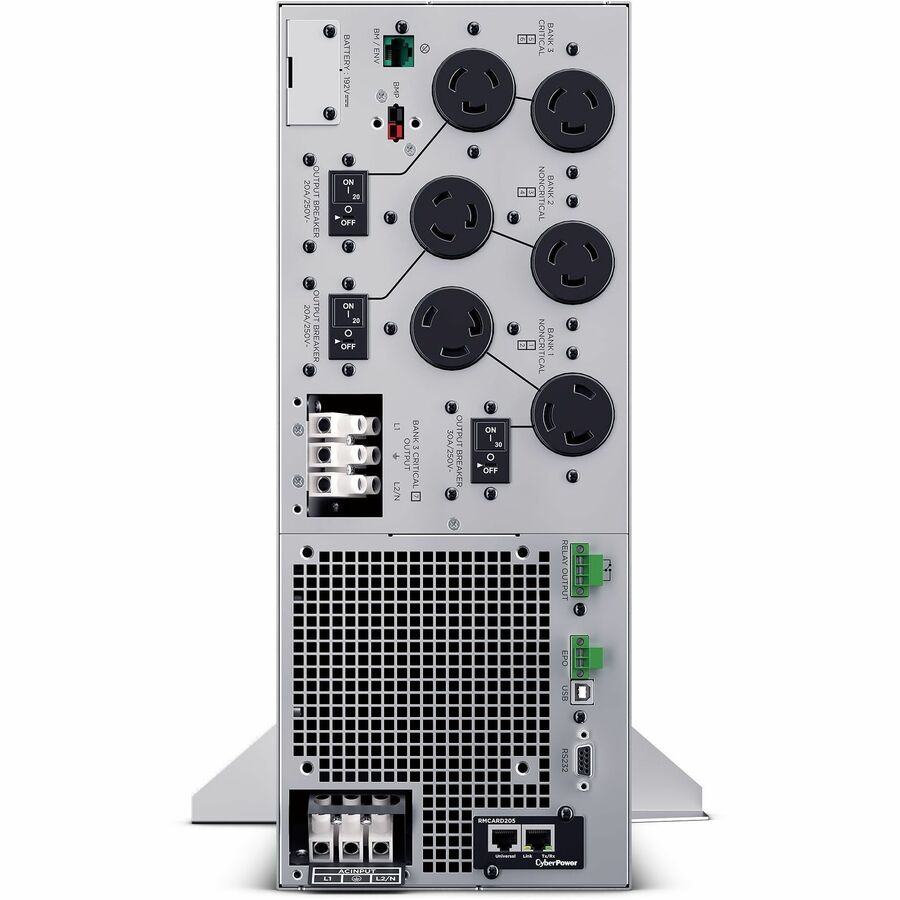

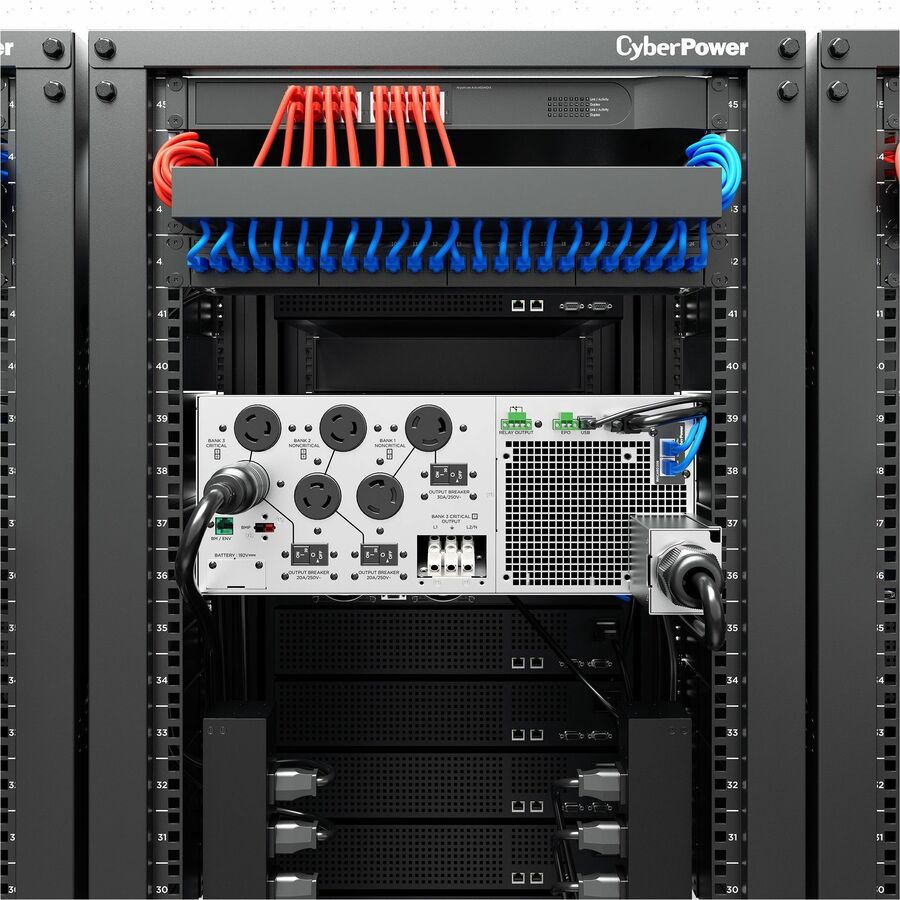

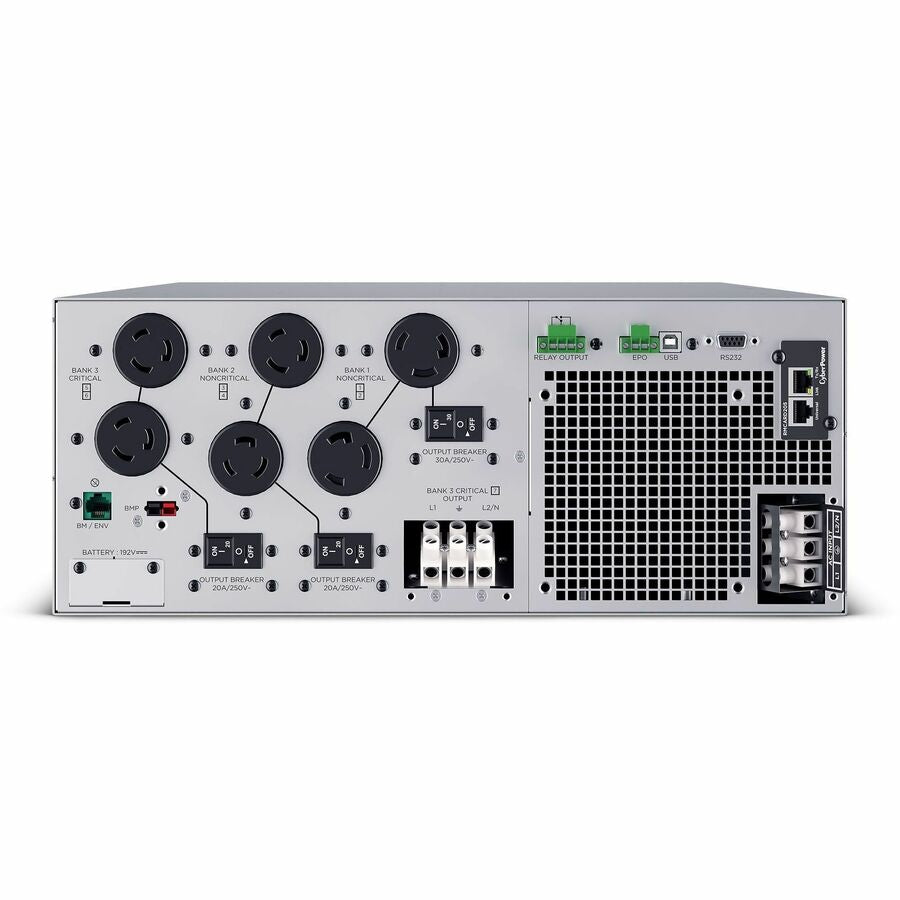

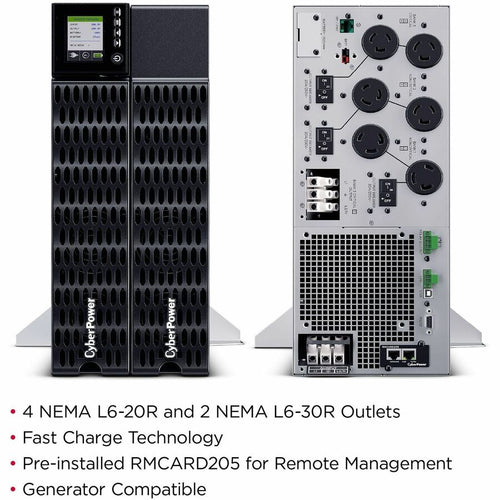

• Outlet types: 4 x NEMA L6-20R, 2 x NEMA L6-30R, Hardwire
• Communication ports: USB, Serial, SNMP, EPO
• Management software: PowerPanel® Business Edition
• Energy saving: ECO Mode Efficiency > > 98%
• Warranty: 3 year
