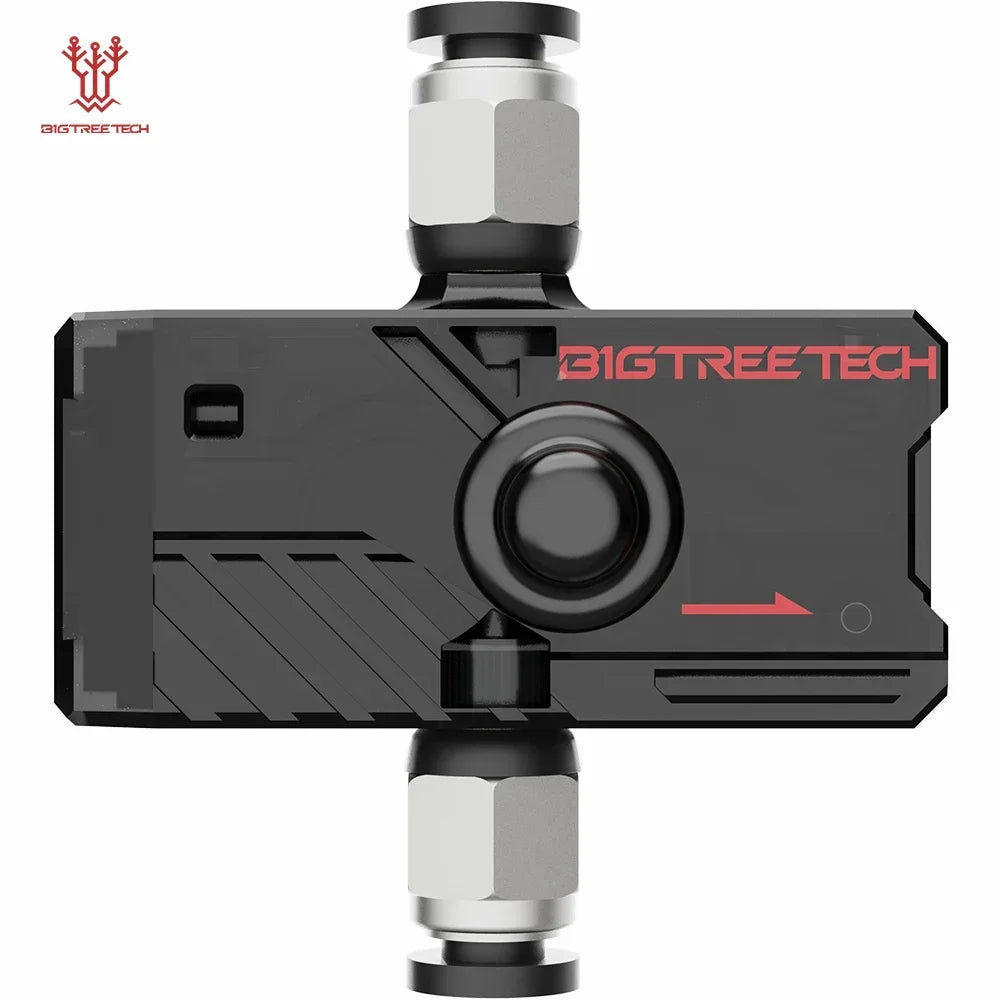

BIGTREETECH BTT SFS V2.0 Smart Filament Sensor Break Detection Module 3D Printer Parts For Voron 2.4 Ender3 MKS GenL Motherboard
BIGTREETECH BTT SFS V2.0 Smart Filament Sensor Break Detection Module 3D Printer Parts For Voron 2.4 Ender3 MKS GenL Motherboard
Couldn't load pickup availability
SPECIFICATIONS
Bi-Directional Feeding: YES
Bi-rectional Feeding: YES
Brand Name: BIGTREETECH
Detecting More than Just Runout: YES
Detections1: Nozzle Clogging
Detections2: Filament Runout
Detections3: Filament Tying
Detections4: Extruder Trouble
Extruder Support: Bowden Drect-Drive
Filament Feeding Lever: YES,YES
Firmware Support: RRF,Klipper,Marlin
Highly Precise Photoelectric Sensor: YES
Hign-concerned Chemical: None
Item Type: Module
Lighter and Smaller: YES
Model Number: SFS V2.0,Smart Filament Sensor
Mounting Holes: Three mounting holes on the back
Operating Principle: Encoder+Pulley Set+Micro Switch
Origin: Mainland China
Photoelectric Sensor: YES
Real-Time Status Indication: YES
SFS V2.0 Detection Length: length, may need adjustment)
SFS V2.0 Dimensions: 53.1 x 30.3 x 27.3 mm
SFS V2.0 Filament Diameter: 1.75MM
SFS V2.0 Mounting Hole Spacing: 12.4 x 24.7 mm
SFS V2.0 Rated Voltage: 3.3V-5V
SFS V2.0 Weight: 36 g
SFS V2.0 Working Humidity: 10% to 90%
SFS V2.0 Working Temperature: -10 to 50 ℃
Status Light: YES,YES
Wide Compatibility: YES
SFS V2.0
Master the Filament state
Specifications
Compatible ilament：All 1.75mm filaments
Detection Length：2.88 mm (theoretical detection length, may need adjustment)
Rated Voltage：3.3V-5V
Working Temperature：-10 to 50 ℃
Working Humidity：10% to 90%
Dimensions：53.1 x 30.3 x 27.3 mm
Mounting Hole Spacing：12.4 x 24.7 mm
Weight：36 g
Operating PrincipleEncoder+Pulley Set+Micro Switch
Bi-Directional FeedingYES
4 Detections
Nozzle Clogging
Filament Runout
Filament Tying
Extruder Trouble
Versatile Features
Firmware Support：RRF、Klipper、Marlin
Extruder Support：Bowden Drect-Drive
Bi-rectional Feeding
Status Light
Photoelectric Sensor

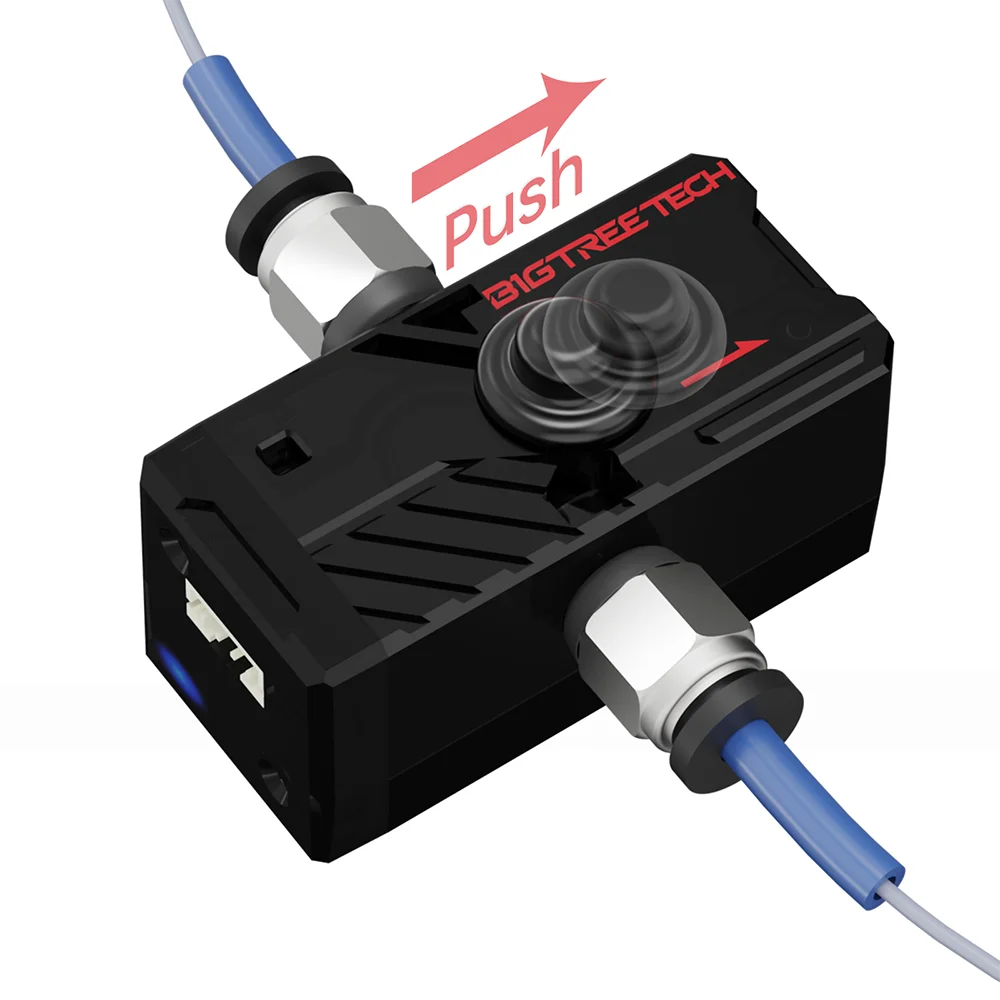

Filament Feeding Lever
Detecting More than Just Runout
Upon detecting nozzle clogging, filament runout, filament tying, and extruder malfunctions, SFS V2.0 will promptly issue error alerts on the screen and automatically pauses printing. This prevents unnecessary resource wastage.
Real-Time Status Indication：Easily know the filament status at a glance
Normal Printing:The blue light flashes during smooth printing when the printer and filaments are functioning properly.
Filament Runs out or is Broken:steady red light prompts the user to rapidly respond to a filament shortage or breakage.
Others：Nozzle Clogging/Extruder Trouble/FilamentTyingA steady or extinguished blue light.

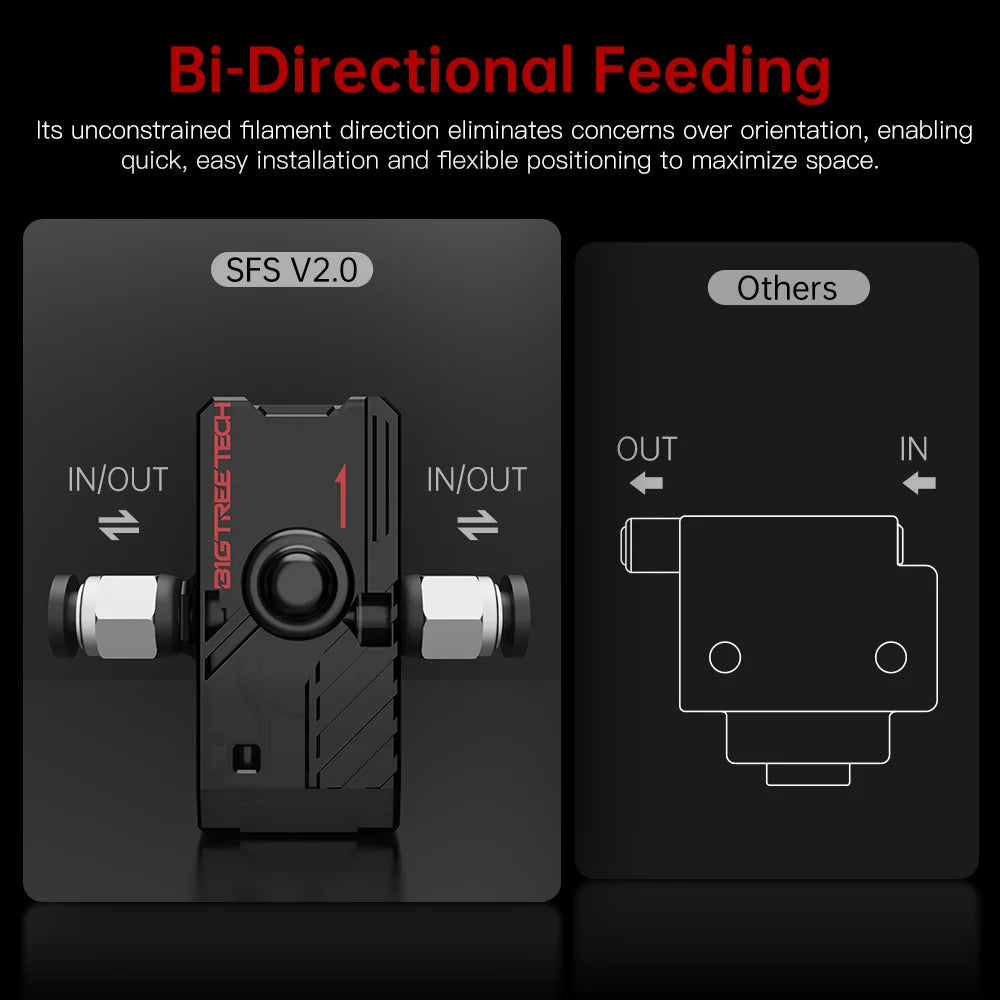

Bi-Directional Feeding
Its unconstrained filament direction eliminates concerns over orientation,enabling quick,easy installation and flexible positioning to maximize space.

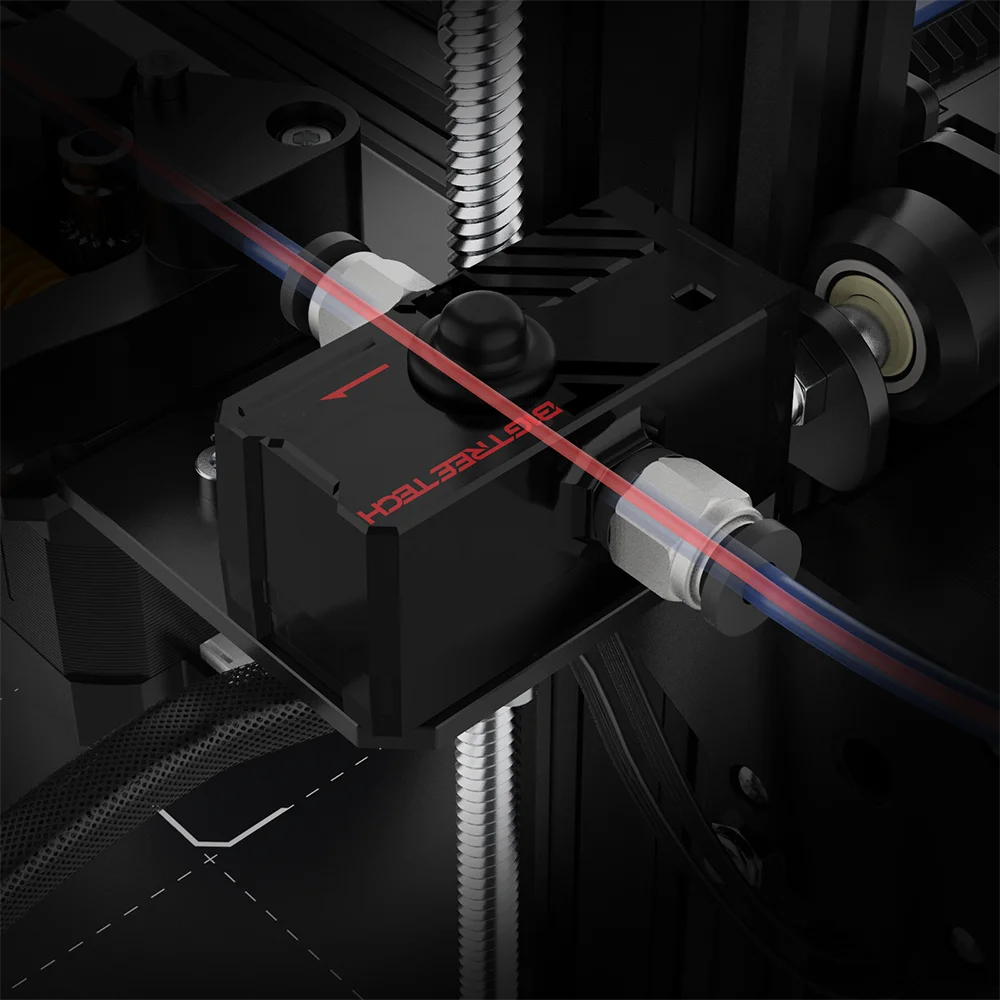

Highly Precise Photoelectric Sensor
Theoretical Detection Length：2.88mm
Lighter and Smaller：Enhances installation ease and space use without overburdening direct-drive extruders，preserving printing speed and accuracy.
SFS V2.0 weighs 36g,40% less than V1.0 and 35.95% smaller.The 36g excludes the Bowden tube connectors.
Wide Compatibility：Supports any motherboard with available I/O ports(Endstop,Filament detection,BLTouch,Induction sensor,etc)
Unique and Cool：Merges cool aesthetics，with utility,enhancing your 3D printing experience.
M8P:
https://github.com/bigtreetech/Manta-M8P
Octopus Pro：
https://github.com/bigtreetech/BIGTREETECH-OCTOPUS-Pro
SKR MINI E3 V3.0:
https://github.com/bigtreetech/BIGTREETECH-SKR-mini-E3
BTT PI：
https://github.com/bigtreetech/BTT-Pi
EBB SB2209/2240CAN：
https://github.com/bigtreetech/EBB
TFT35 E3 V3.0:
https://github.com/bigtreetech/BTT-TFT35-E3-V3.0
TFT35 SPI:
https://github.com/bigtreetech/TFT35-SPI
MicroProbe:
https://github.com/bigtreetech/MicroProbe
CB1:
https://github.com/bigtreetech/CB1
Ender3 printer upgrade set 1
(Silent printing filament detection, original replacement touch screen)
SFS V2.0+SKR MINI E3 V2.0/V3.0+TFT35 E3 V3.0
Ender3 printer upgrade set 2
(Silent printing filament detection,Cost performance can be achieved using Klipper Screen）
SFS V2.0+SKR MINI E3 V2.0/3.0+BTT Pi+TFT35 SPI
Voron2.4 printer upgrade set 1
(Quickly deploy Klipper Screen that supports consumables detection)
SFS V2.0+Octopus Pro+BTT Pi+HDMI5/7
Voron2.4 printer upgrade set 2
(The cost-effective Klipper integrated motherboard provides consumables detection function for easy wiring)
SFS V2.0+M8P+CB1+HDMI5/7
