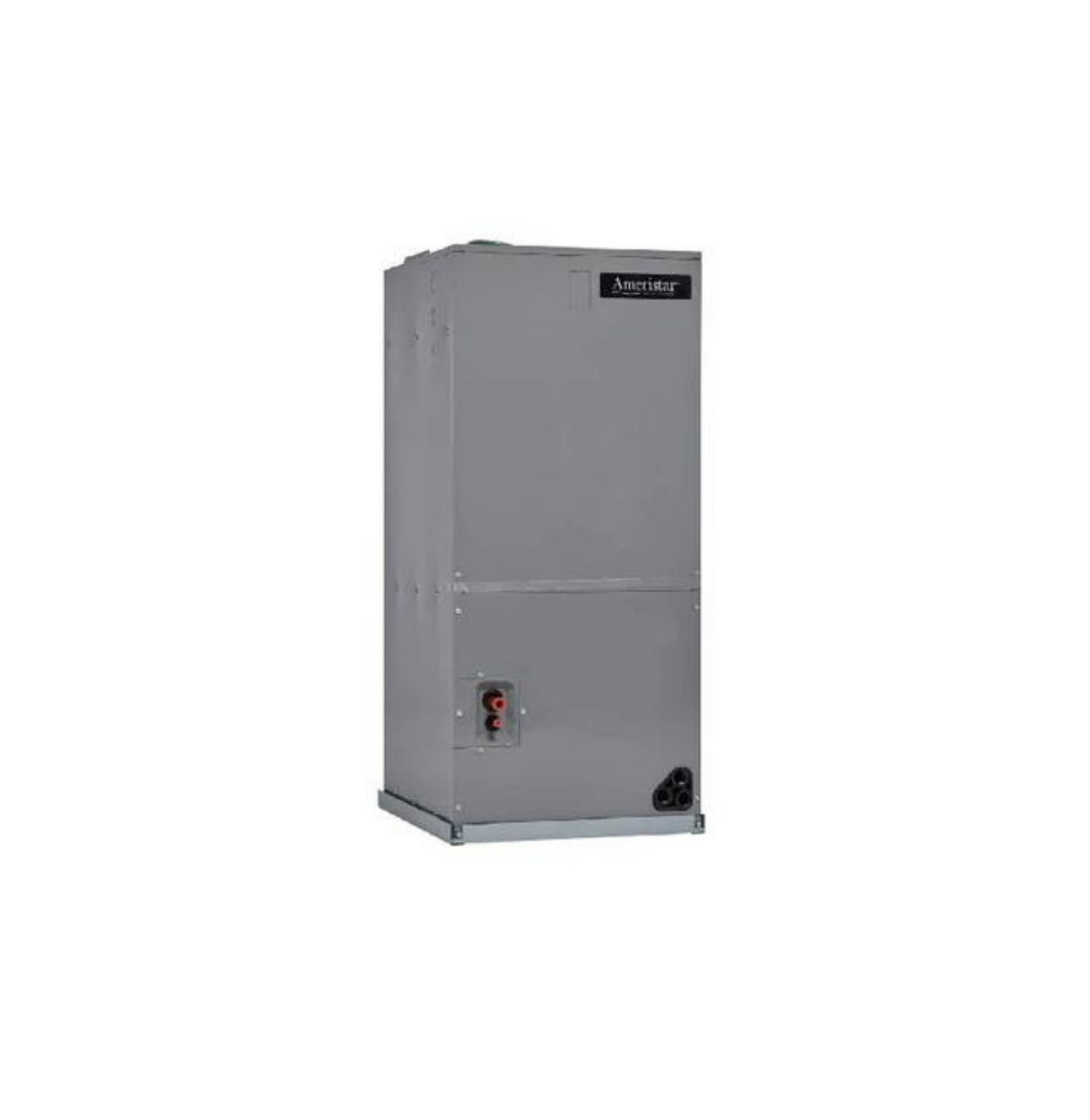

Ameristar By Trane M4AH4P48E1C00AA 4 Ton Multi-Position Air Handler

General Information

• Model: M4AH4P48E1C00AA
• Refrigerant: R-410A

Electrical Data

• Rated Volts/Phase/Hertz: 208-230/1/60
• Motor Speed (RPM): 925
• Full Load Amps (F.L. Amps): 4.3

Indoor Coil Specifications

• Type: Plate Fin
• Rows: 4
• Fins Per Inch (F.P.I.): 17
• Face Area: 5.99 sq. ft.
• Tube Size: 9/32 inch
• Refrigerant Control: Orifice
• Drain Connection Size: 3/4 inch NPT

Duct Connections

• Connections: See Outline Drawing

Indoor Fan Specifications

• Type: Centrifugal
• Diameter-Width: 13 x 10-5/8 inches
• Number Used: 1
• Drive: Direct
• Number of Speeds: 3
• CFM vs. in. w.g.: See Fan Performance Table
• Motor H.P.: 1/2

Filter Specifications

• Filter Furnished: No
• Recommended Filter Type: Throwaway
• Filter Size: 20 x 22 inches
• Filter Thickness: 1 inch

Refrigerant Line Connections
