SPECIFICATIONS

Matching Mode: Intelligent Learning Code

Working Voltage: DC 12V

Feature 1: Wireless Remote Control

Feature 2: DC 12V 4CH Relay Receiver

Feature 3: 433MHz DC 12V 4CH Receiver Rf Transmitter

Feature 4: For Garage/Gate/Motor/Light/Lamp

Brand Name: kebidu

Model Number: Wireless Remote Control

Wireless Communication: RF

Use: Universal

Use: Lighting

Use: Electric Door

Use: Automated curtains

Use: SWITCH

Channel: 4

Frequency: 433 MHz

Origin: Mainland China

Choice: yes

semi_Choice: yes

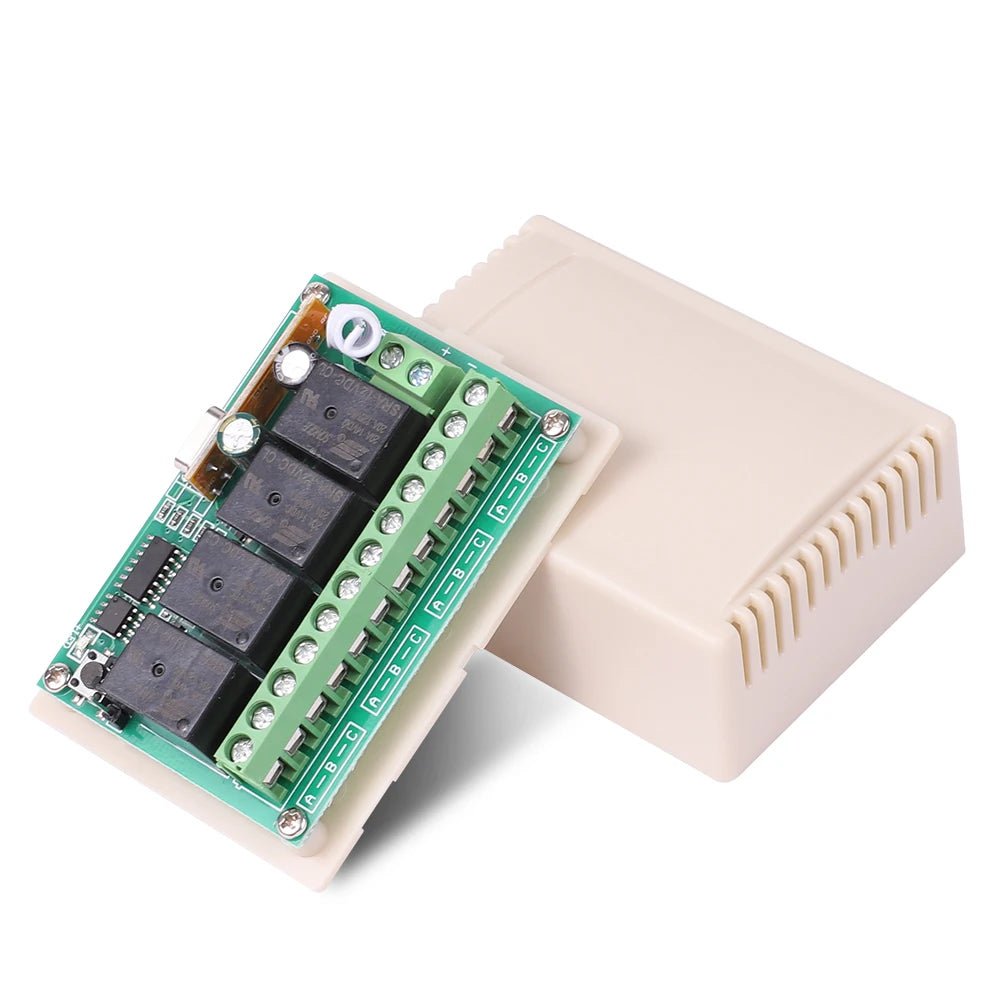

For Receiver Module :

Working Voltage: DC 12V

Product Type: 4 Channel Remote Control Switch

RF Working Mode: ASK Superheterodyne

ReceptionModulation Mode:ASK

Working Mode: Momentary/Toggle/Latched, etc.

Matching Mode: Intelligent Learning Code.

RF Frequency: 433MHz

Receiving Sensitivity: >104dbm

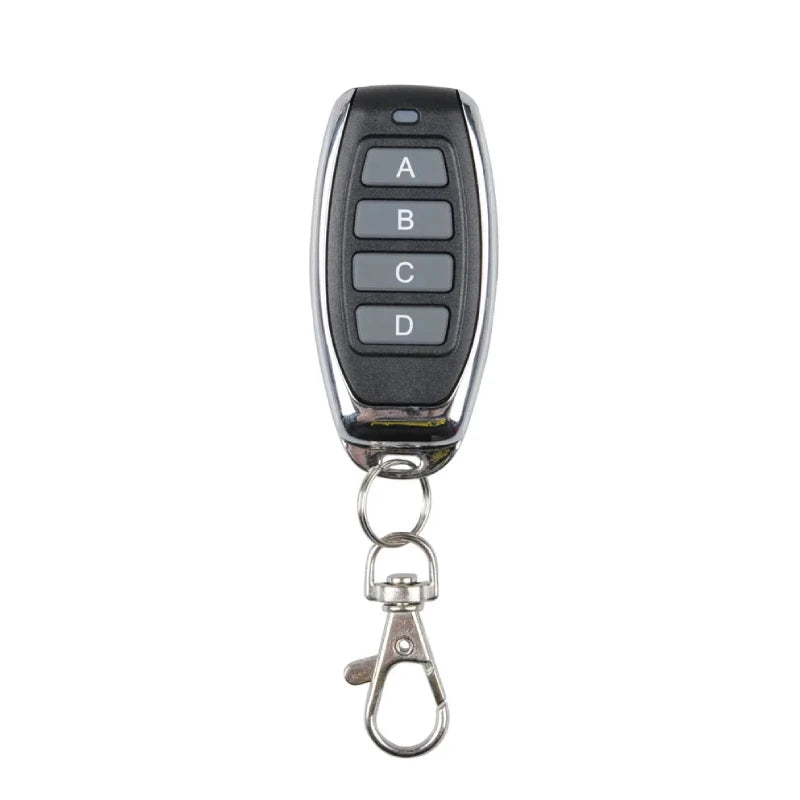

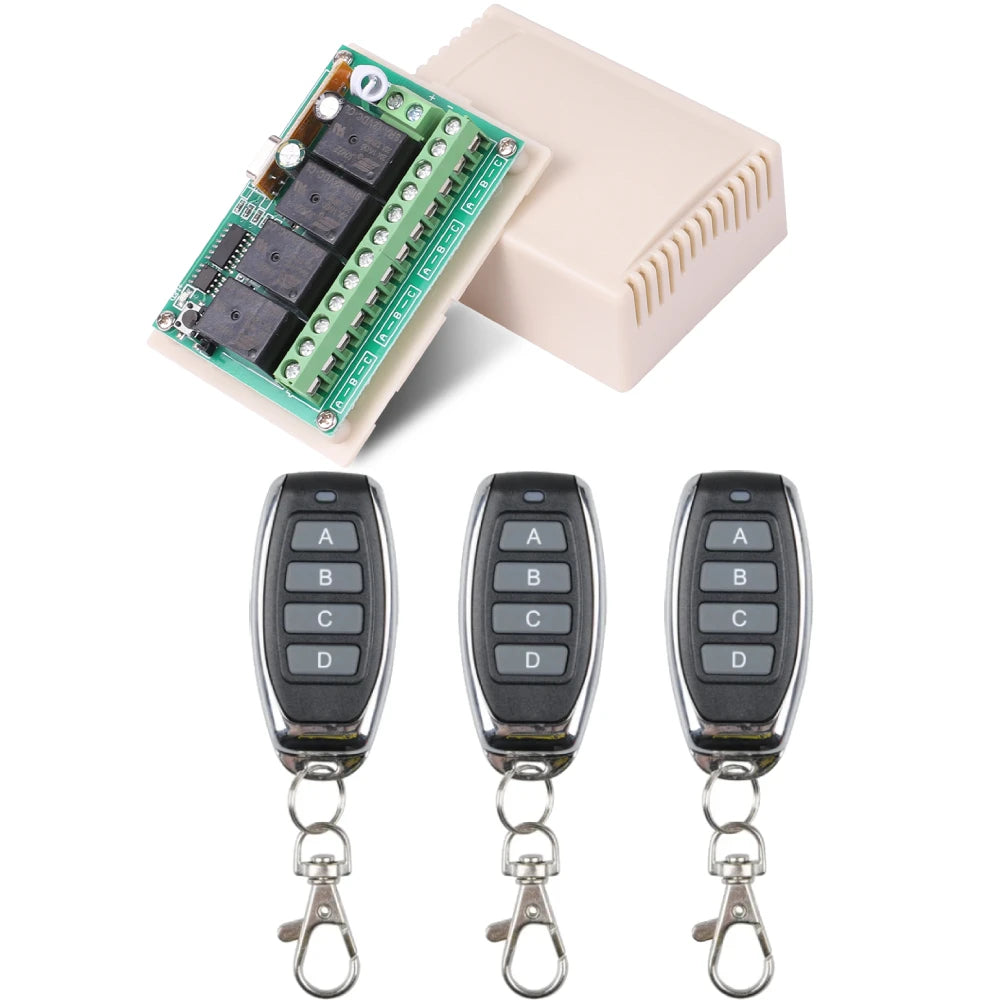

Remote parameter

Size: 60*30 mm

Frequency: 433.92 MHz

Battery: Including battery

Color: Black

Code: 1527 learning code

Range: about 50-100m in open space

Operation Introduction:

About Working Mode:

1. Momentary/Joggle: Press and hold->On; Release->OffKeep pressing one button, the corresponding channel is working /on; Release your finger is stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter )

2. Toggle/Self-Lock: Press->On; Press again->Off Press one button for one time, the corresponding channel is working/on; Press the same button again to stop/OFF. (4 channel switch(receiver) need 4 button remote control (transmitter).

3. Latched/Inter-Lock: Press->on; Press other button->OffPress one button for one time, the corresponding channel is working/on; Press another button is stop/OFF(At the same time, another corresponding channel works). (4 channel switch( receiver) need 4 buttons remote control (transmitter).

The Setting of Working Mode:

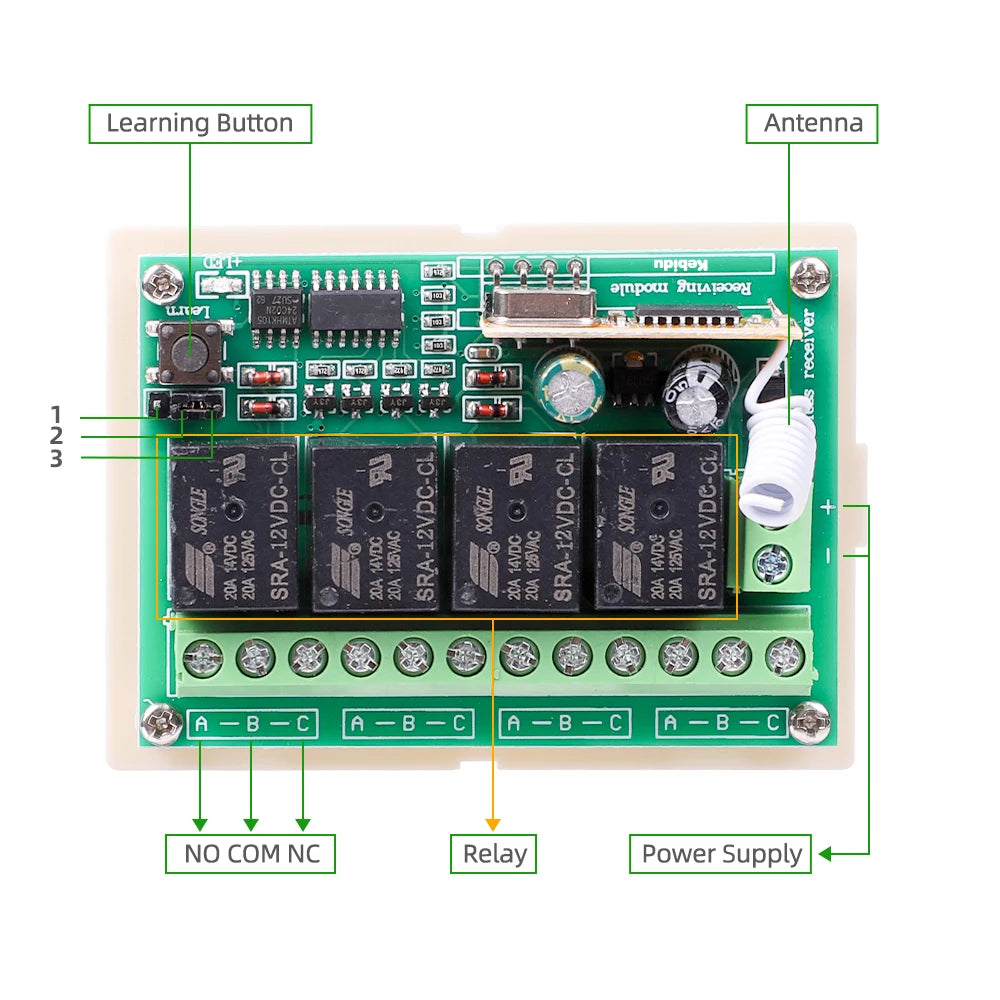

1.Momentary Mode: Pressing the learning key button on the receiver board once (LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting Momentary Mode successfully.

2. Toggle Mode: Pressing two times the learning key button on the receiver board twice(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED means setting Toggle Mode successfully.

3.Latched Mode: Pressing the learning key button on the receiver board three times (LED Indicator on receiver board will signaling simultaneously), then press first remote button, follow on second remote button, signaling three times by remote's LED indicator means setting Latching Mode successfully (first button stands for on, second button stands for off ).

4.2CH Momentary + 2CH Toggle: Pressing the learning key button on the receiver board four times(LED Indicator on receiver board will signaling simultaneously),then press any of the remote button , signaling three times by remote's LED indicator means setting successfully.

5. 2CH Momentary + 2CH Latched: Pressing the learning key button on the receiver board five times(LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting successfully .

6. 2CH Toggle + 2CH Latched: Pressing the learning key button on the receiver board six times(LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting successfully.

7. 2CH Latching + 2CH Latched: Pressing the learning key button on the receiver board seven times(LED Indicator on receiver board will signaling simultaneously), then press any of the remote button, signaling three times by remote's LED indicator means setting successfully.

8. Deleting Existing Remote Controls Data: Pressing the learning key button on the receiver board eight times, the LED Indicator on receiver board will flash for eight times, it means that the existing remote controls are deleted successfully.
