315 MHz/433 MHz Remote Control Key Fob Universal Copy Remote Controller 4 Buttons Replacement Key Fob for Vehicle Car
Features:
1. Multi-Functional, Variable, Personalized, and User-Friendly Simple Design: The smart copy remote control features a simple design that is easy to use and understand, making it perfect for anyone.
2. Wide Application: This copy remote controller is suitable for a range of devices, including electric scooters, garage doors, traffic barriers, and security alarms.
3. High-Performance RF Chip: The copy remote control uses a high-performance RF chip with a stable crystal oscillator and accurate frequency points, ensuring reliable performance.
4. Long Transmission Distance, High Sensitivity, and No Directional Limitations: The remote control key fob has a long transmission distance, high sensitivity, and no directional limitations, providing convenience and flexibility.
5. Fast Copy Speed & Easy Operation: The duplicator can copy most fixed code and learning code wireless remote controls quickly and easily without affecting the original remote control.



1. Overview
AK-K200404 Oval 9218 copy remote control adopts SA901B main control chip, supports online programming, can be repeatedly burned, built-in EEPROM, can copy other ordinary remote control of the same frequency, can be cleared at any time to learn the code, easy to use, fast, can be used in the field of car remote control, lighting control, smart home remote control, etc.

2. Product features
Certification: NONE
Origin: Mainland China
Use: Electric Door
Wireless Communication: RF

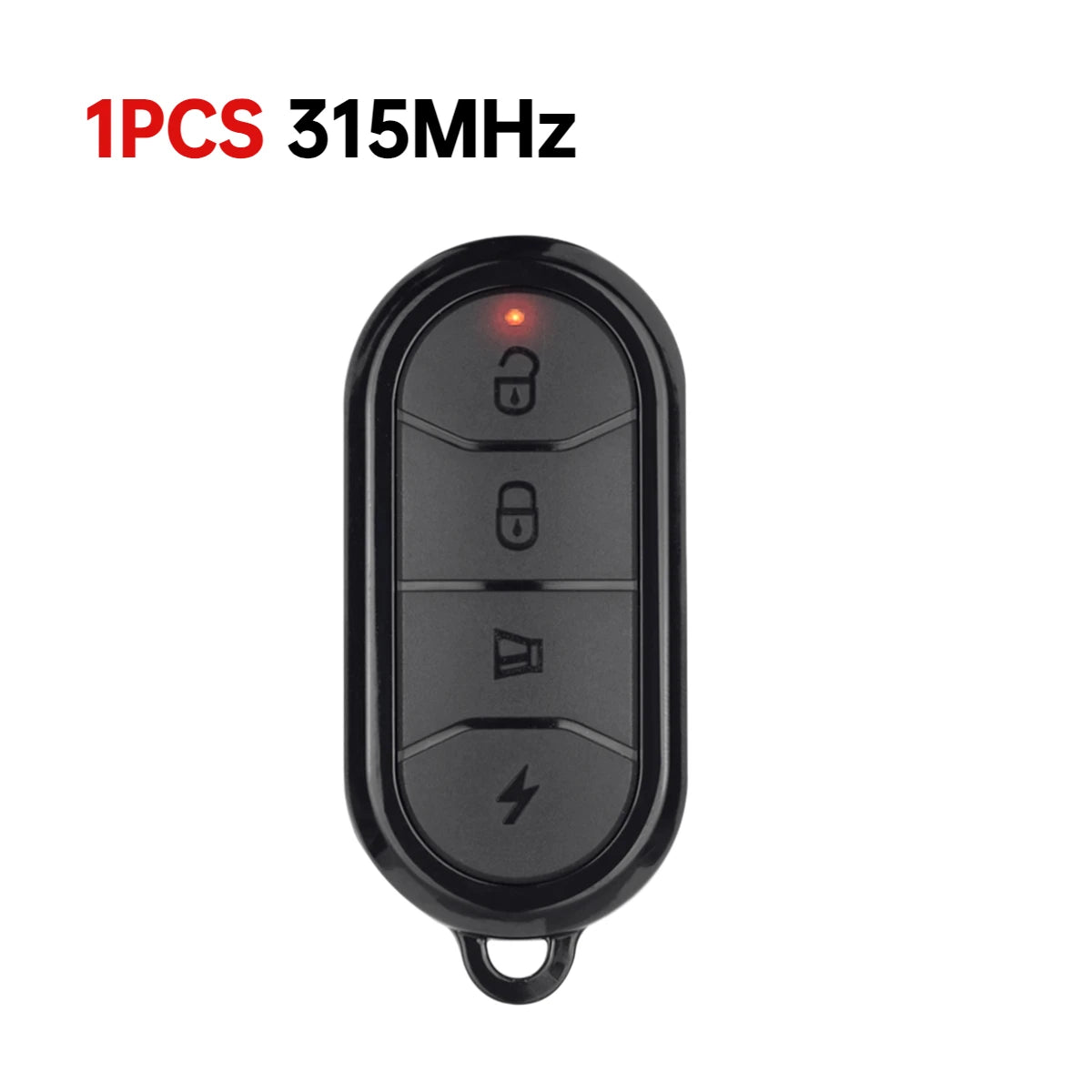

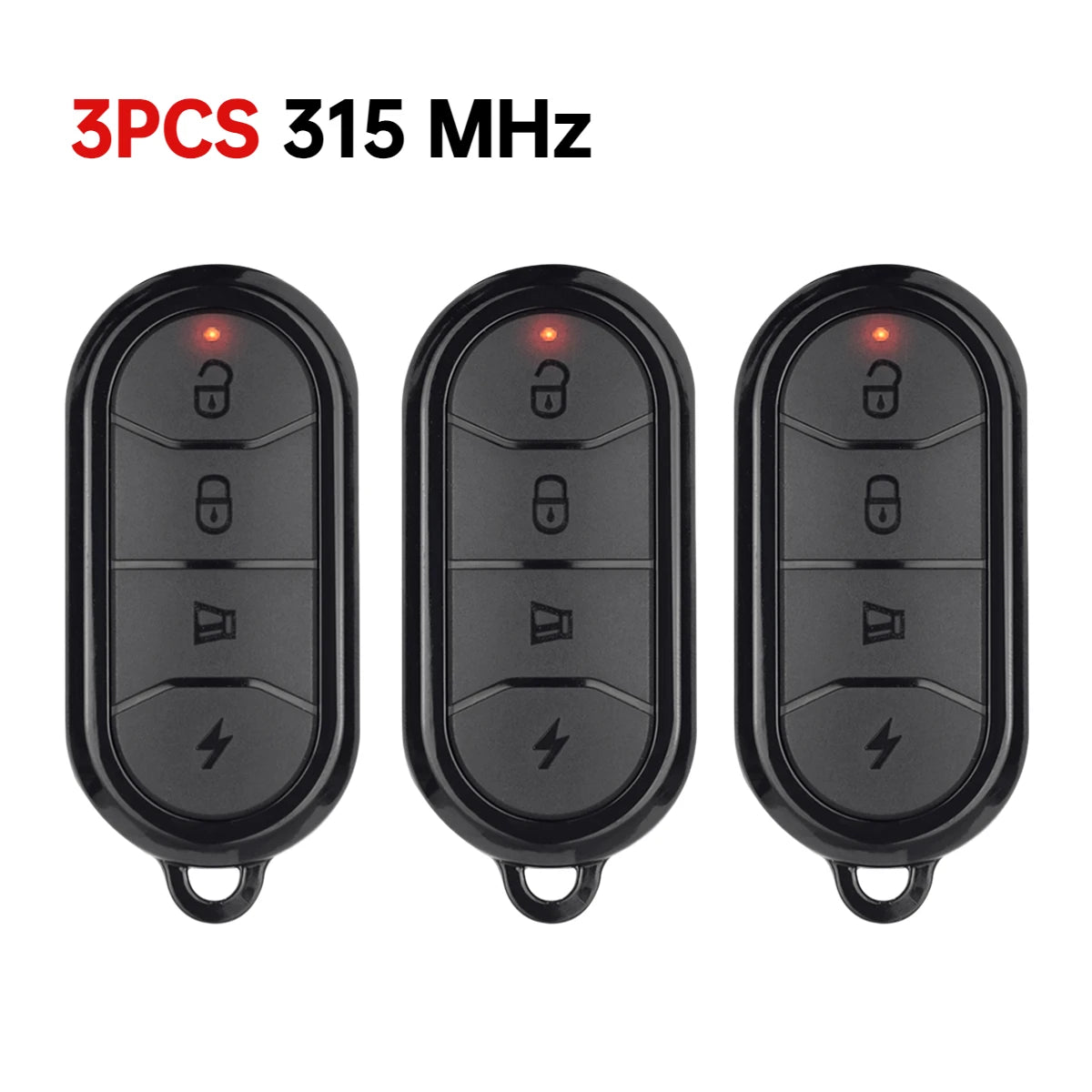

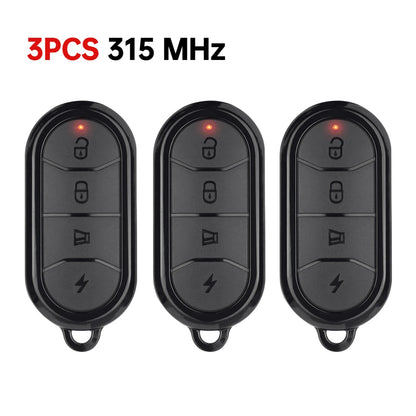

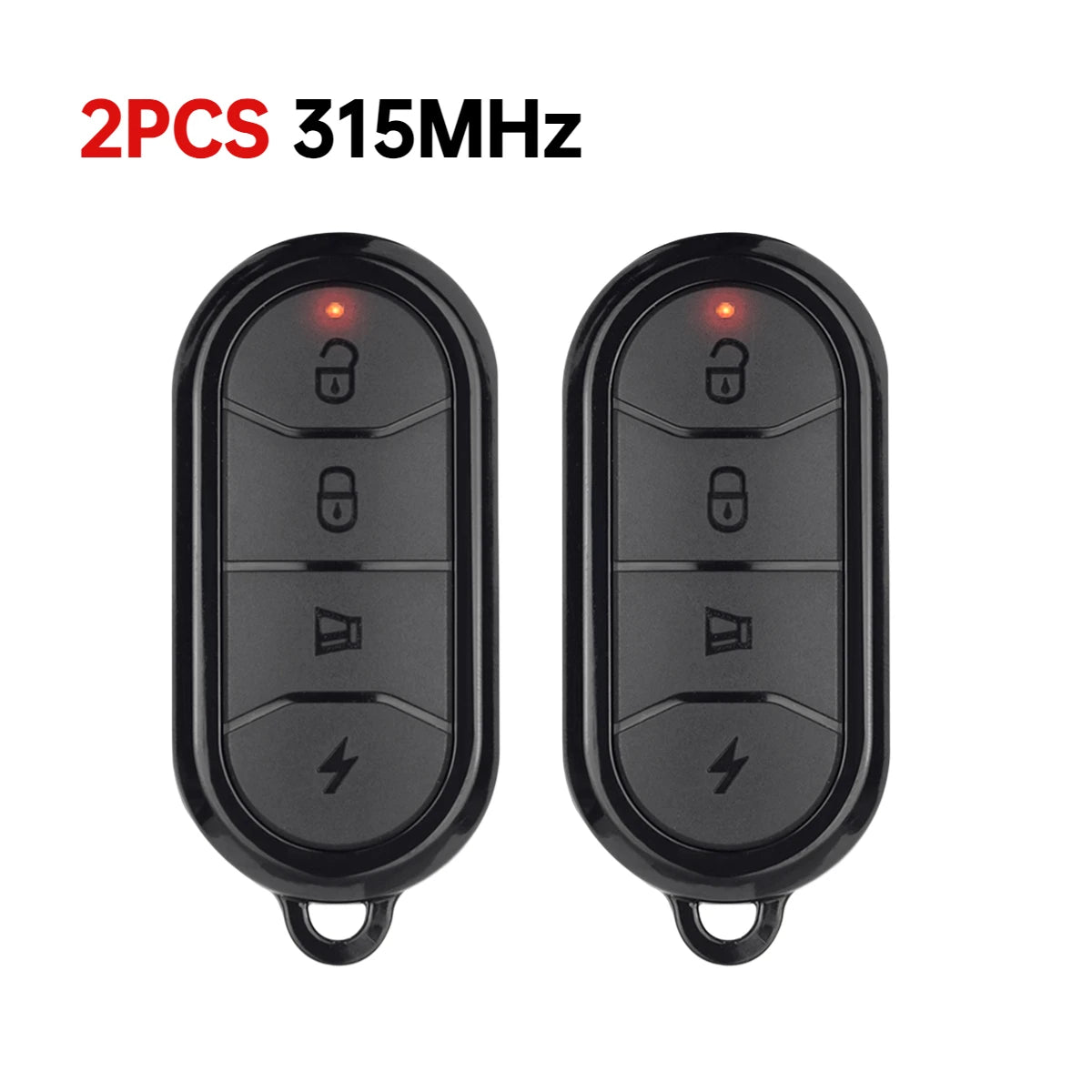

(1) Operating frequency: 315 MHz / 433 MHz (optional)
(2) Power supply scheme: DC3V (button battery 2032) power supply;
(3) Standby current: less than 0.15uA;
(4) Good selectivity and spurious radiation rejection;
(5) Good local vibration radiation suppression capability;
(6) Temperature range: -20-70°C (-20-70°C) Even in harsh ambient temperatures, it can work normally;

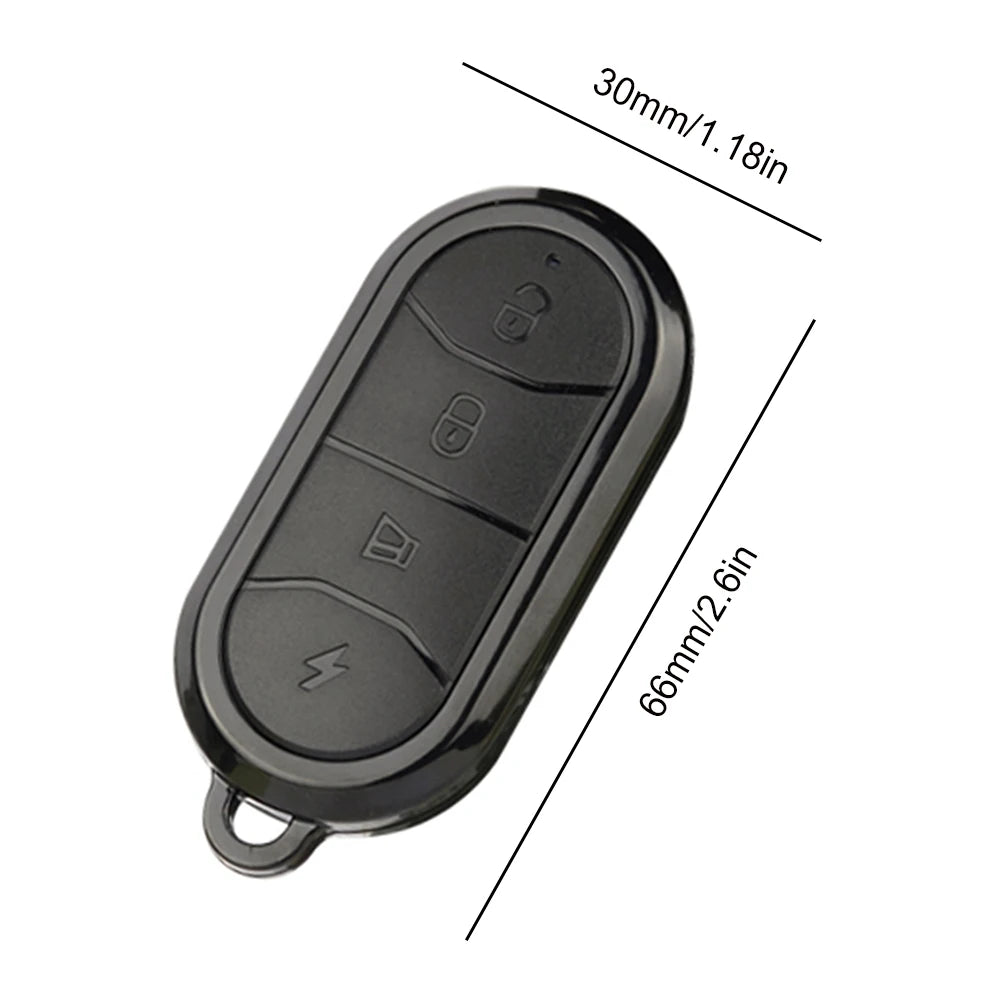

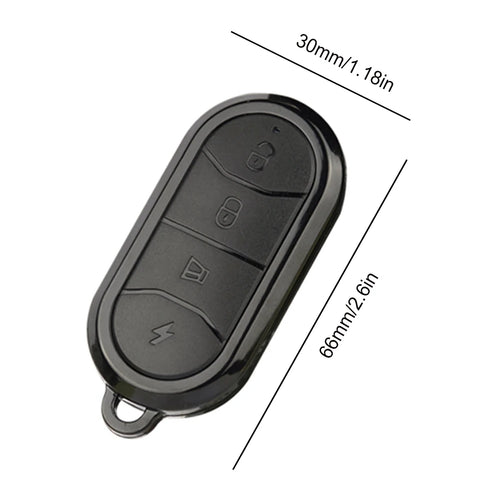

(7) Product size: approx. 66*30*11mm/ 2.60*1.18*0.43in (including housing);
(8) Product weight: 19g (including case key fob)

3. Electrical parameters
(1) Operating voltage: DC2.4V-3V
(2) Emission current: <20mA
(3) Static current: <0.15uA
(4) Emission distance: >20m
(5) Operating temperature: -20-70℃

4. Function description
(1) Copy-to-code operation

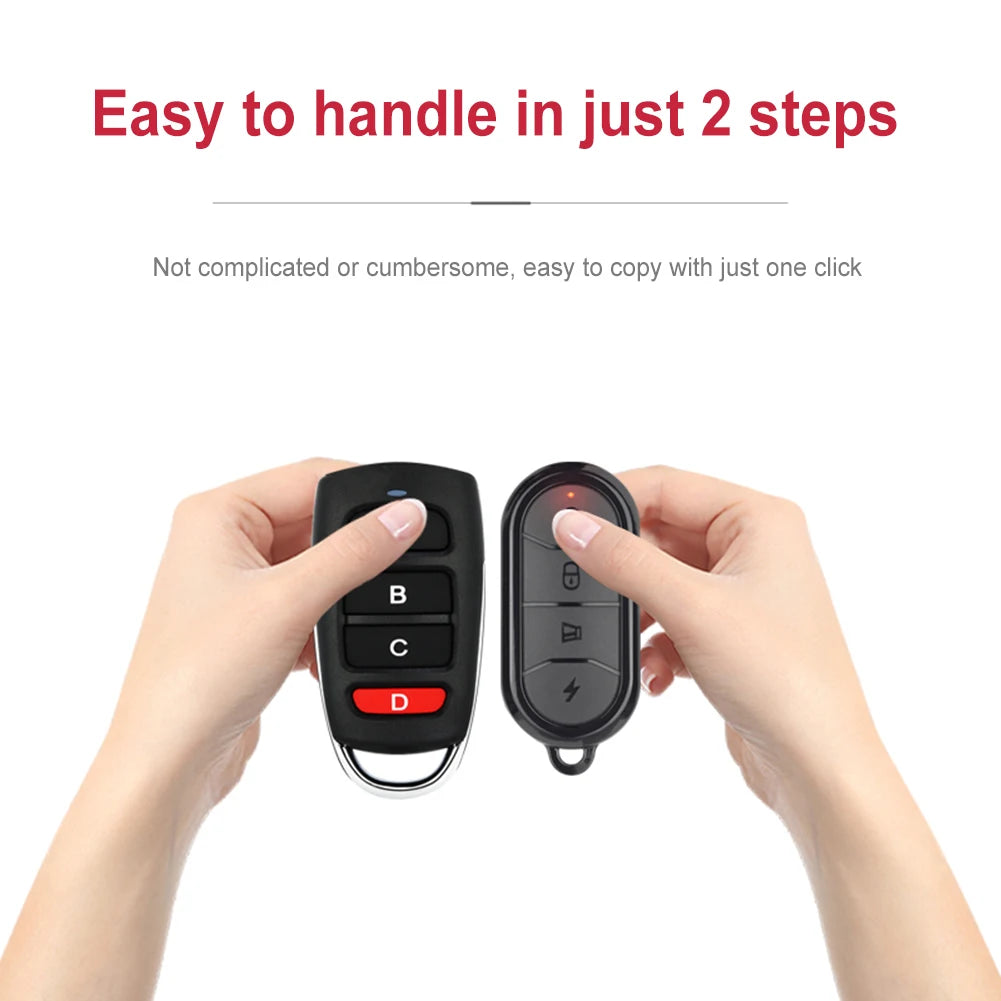

If the remote control has been used for the code, it is necessary to clear the code before the code can be matched. Code matching operation: press the single button of the remote control being copied and the copy remote control at the same time, until the indicator of the copy remote control flashes from fast to bright, then release the two remote control buttons, the code matching is successful. Follow this method for other keys until all keys are copied.
(2) Clear code operation
Press and hold both the Off Lock and On Lock buttons at the same time until the indicator light flashes, then press the On Lock button three times to clear the code (keep the Off Lock button pressed during this process).
(3) Recovery code operation
Press and hold the Mute and Ring buttons at the same time until the indicator light flashes, then you can restore the previously cleared remote control code.

5. Notes
(1) The working voltage should not exceed the normal working voltage by 1V.
(2) In an environment with high wireless interference, the transmitting distance may be reduced.
(3) Keep out of reach of children.
(4) Use in a humid environment is prohibited, otherwise it may cause damage to the remote control.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Duplicator
