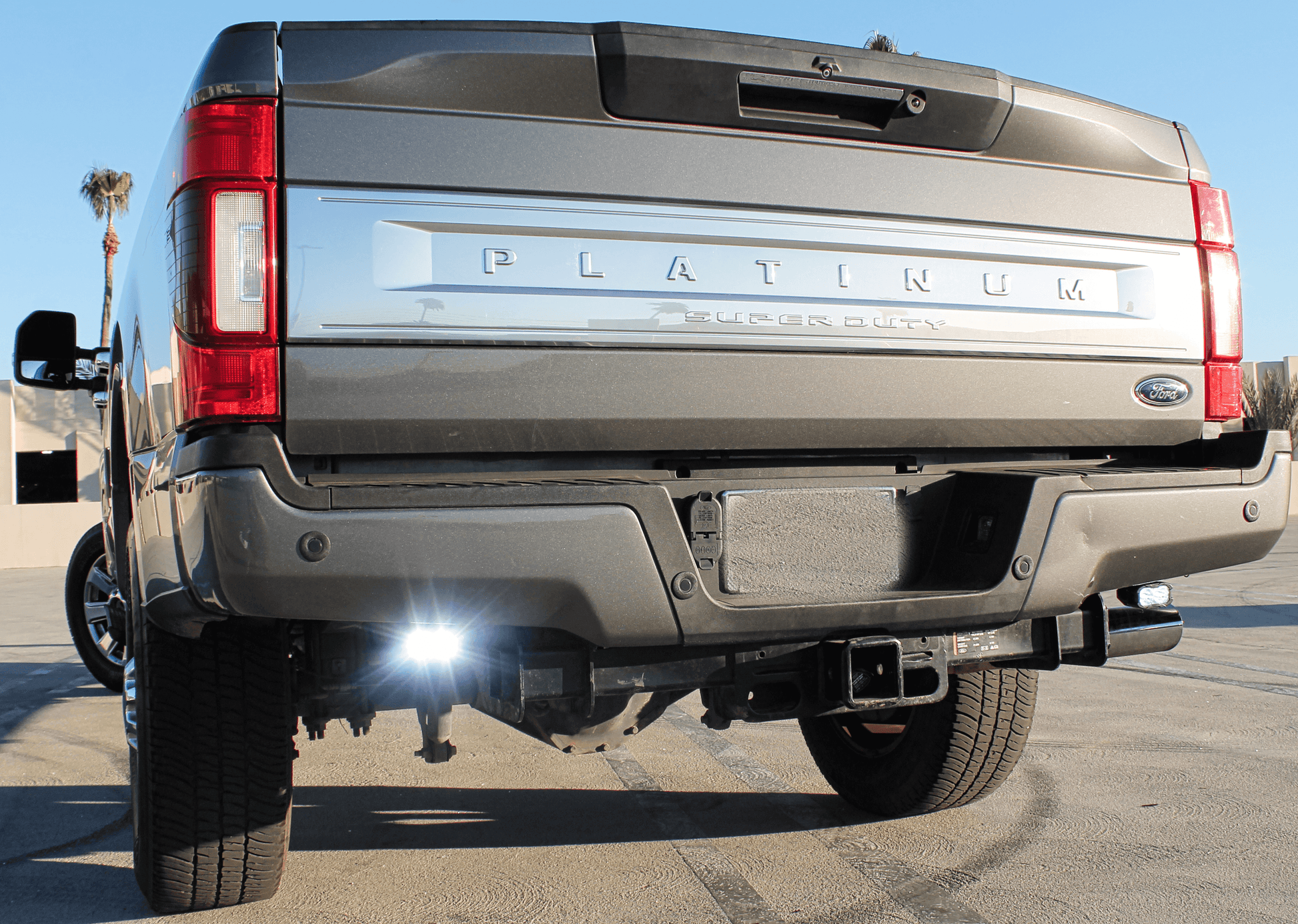

2020-2022 Ford Super Duty F250 F350 F450 Reverse Light

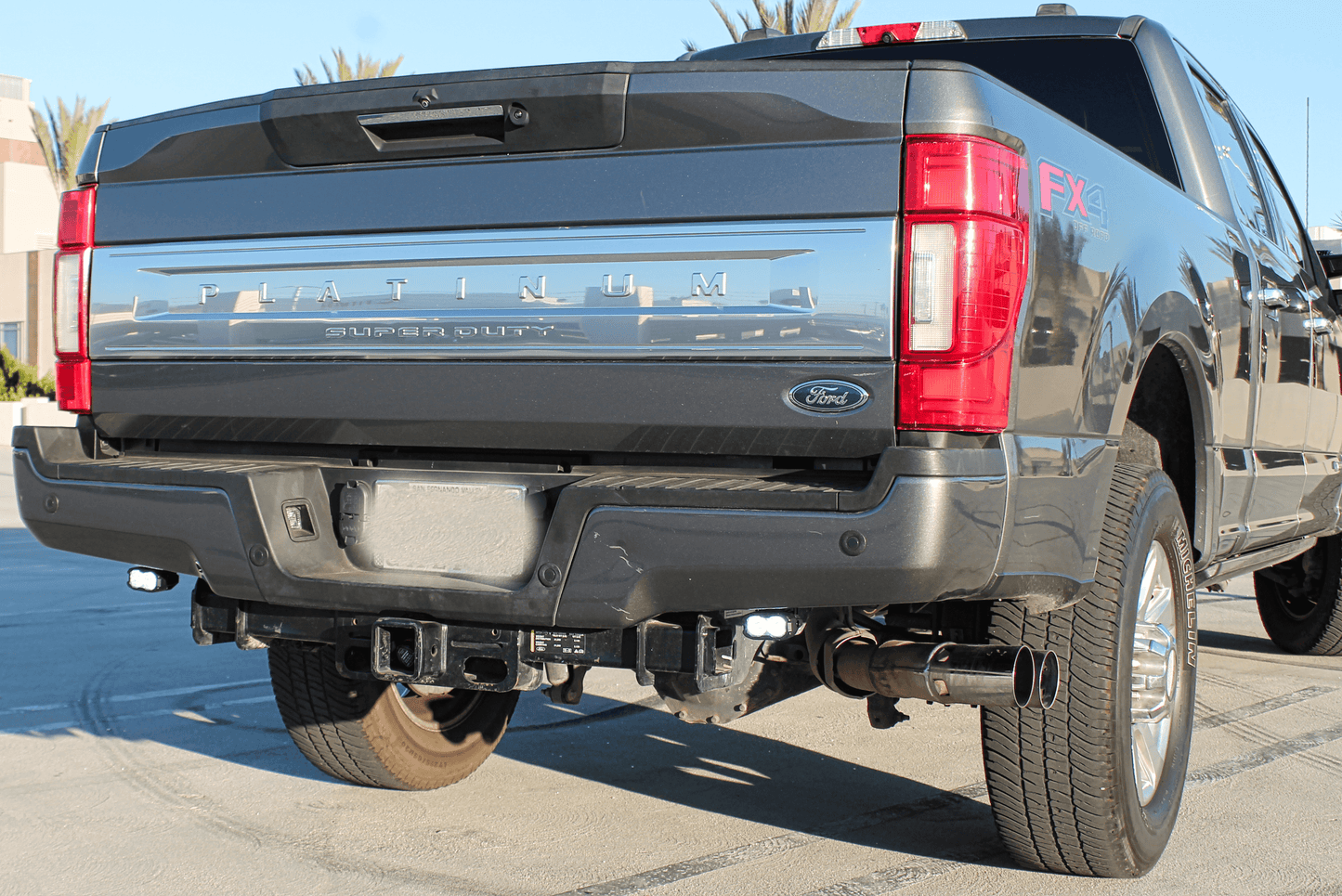

Fits 2020 2021 2022 Ford Super Duty F250/350/450

• Trims:
  • F250XL, F350XL, F450XL
  • F250XLT, F350XLT, F450XLT
  • F250 Lariat, F350 Lariat, F450 Lariat
  • F250 King Ranch, F350 King Ranch, F450 King Ranch
  • F250 Platinum, F350 Platinum, F450 Platinum
  • F250 Limited, F350 Limited, F450 Limited

• Each kit comes as a PAIR of pods
• Driving/Flood Pattern: longer and wider beam focuses for illumination further down the trail or road as well as peripheral angles

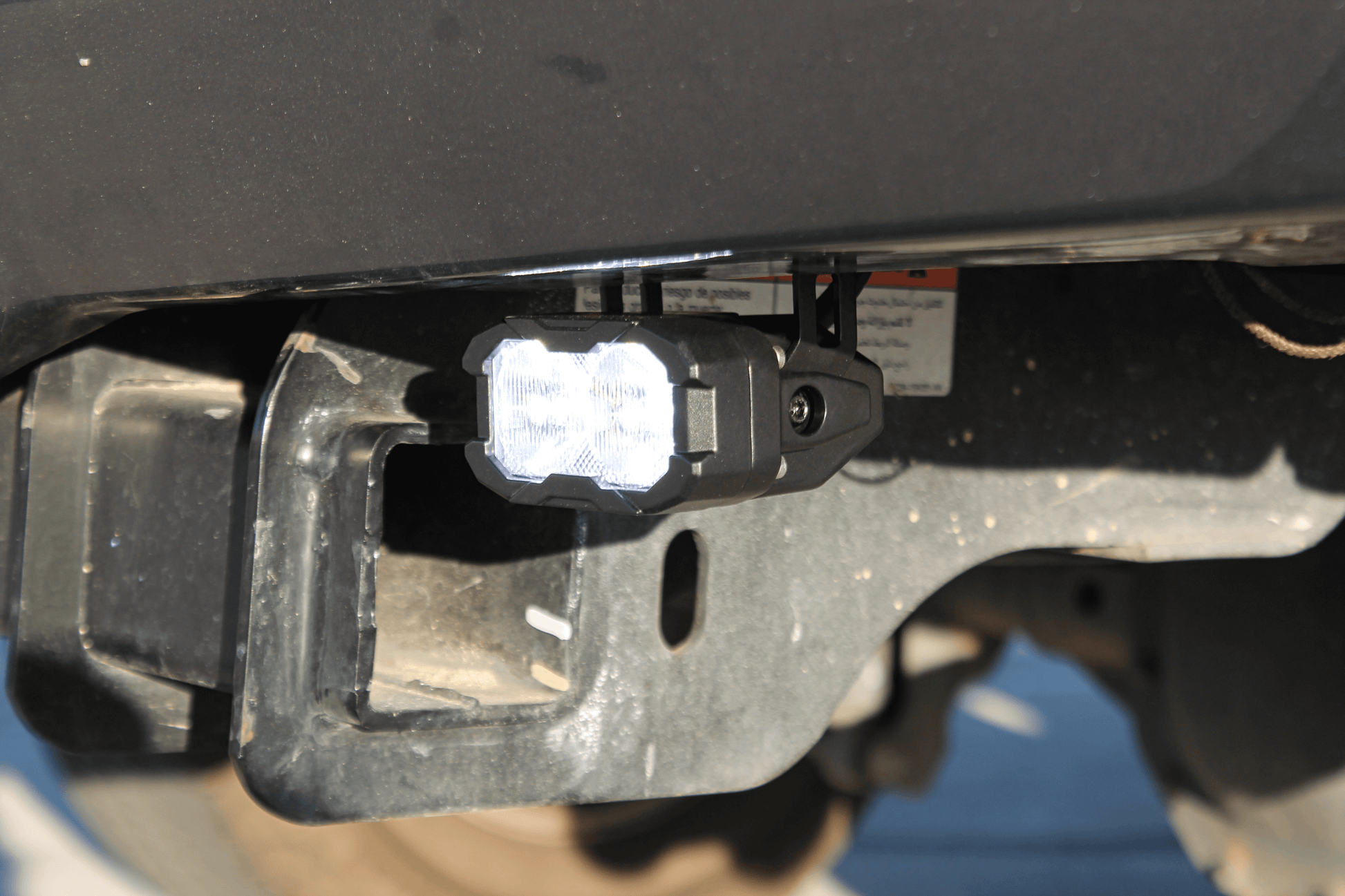

• main White LED light -- you choose your backlight (amber or red)

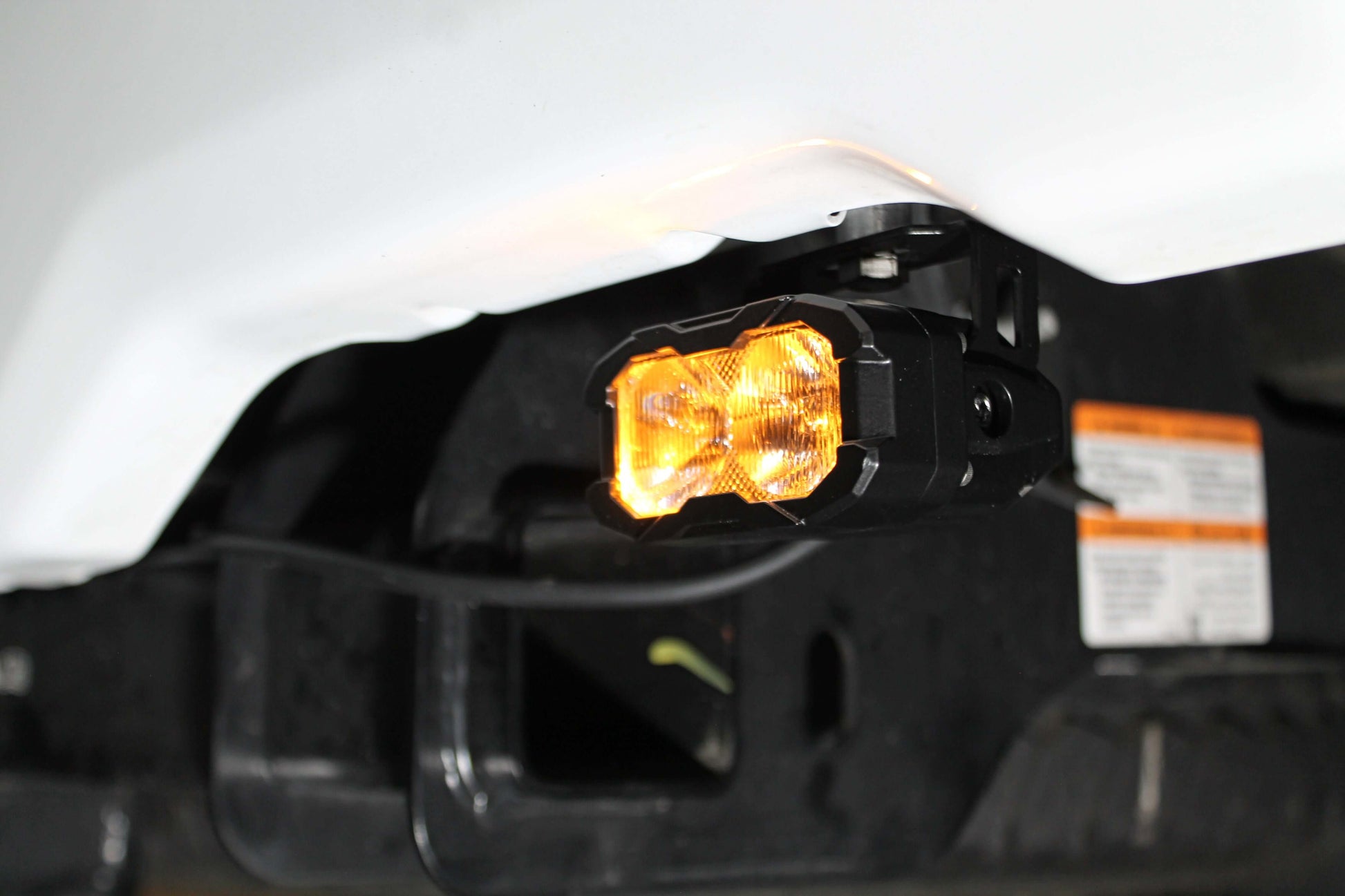

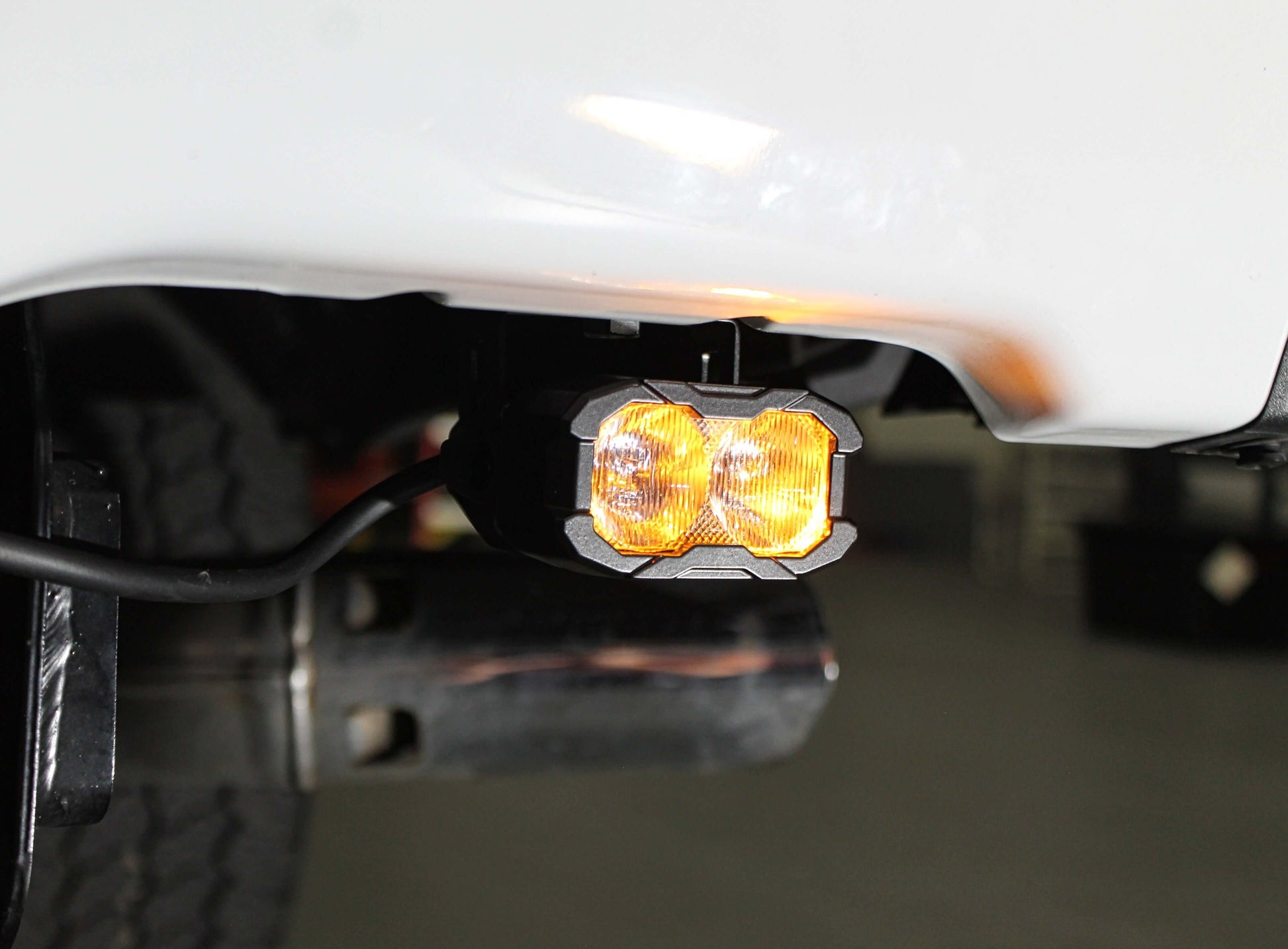

  • 1) Amber back light that can be wired as turn signals

                                                           or

• • 2) Red backlight that can be wired as turn signals or break light

• Each Pod provides the following:

  ·         Theoretical max power 20watts

  ·         Actual power 19.8watts

  ·         Main White light is 2.06amps at 12v

  ·         Backlight Amber is 0.03amps at 12v

  ·         Theoretical max luminous flux 2,184 lm

  ·         Measured luminous flux (without lens) 1,970 lm

  ·         Measured luminous flux (with lens) 1,474 lm

  ·         LEDs type: luminus SST-20 Ra70

  ·         Temperature: 6000k

  ·         LEDs number: 2pcs

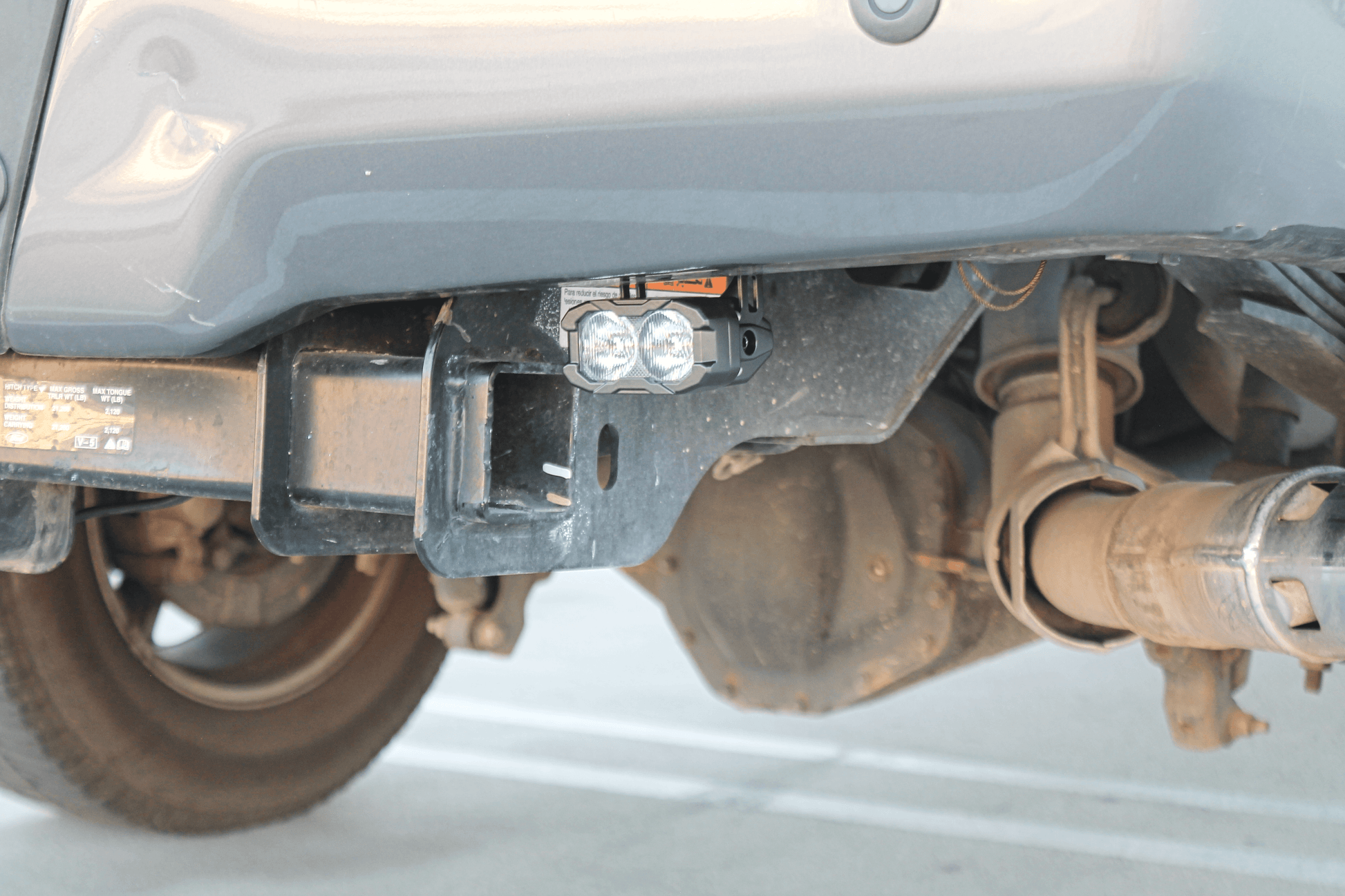

• Each LED light pod is attached to a metal bracket on each side

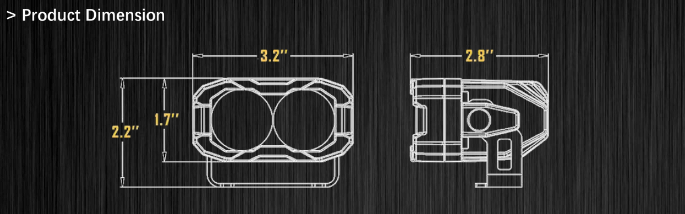

• Size: 3.2in wide x 2.8in depth

• No cutting or drilling required. The kit is a complete bolt on

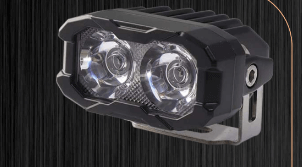

Introducing our brand new LED lenses-PRO series with a unique appearance and optimal performance.

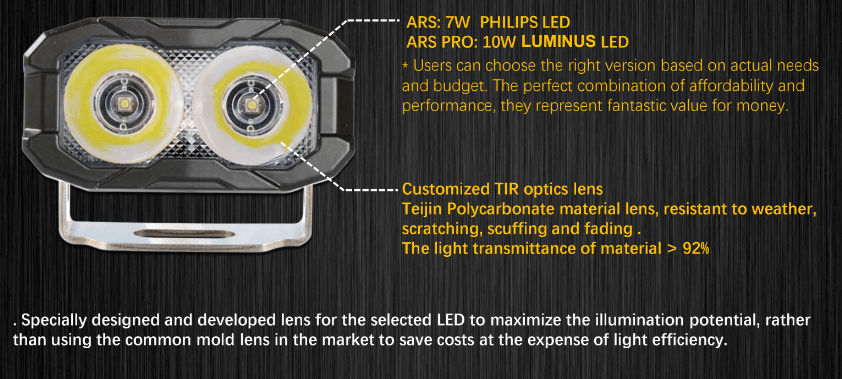

• Uses TIR (Total Internal Reflection) lens is different from the conventional optics parts, which lose some light internally and produce glare. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
• Higher light efficiency: brighter, longer irradiation distance
• Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to prevent against UV, salt water, corrosion, fading and scratch resistant.

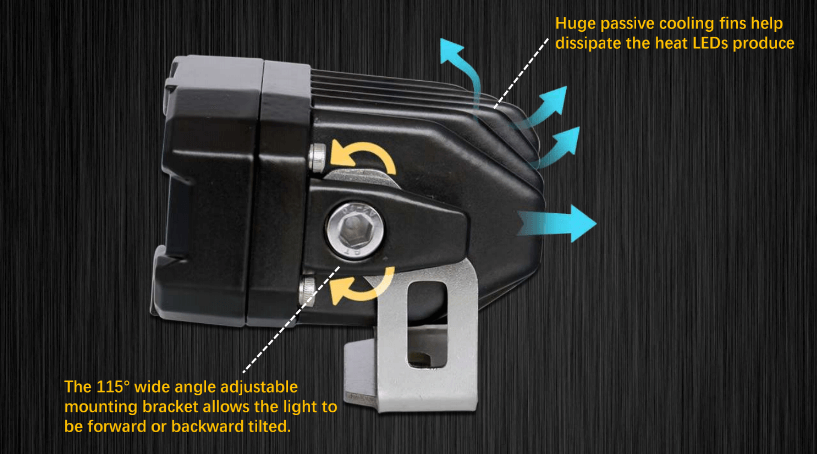

• Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures

👍Our light kits are for off-road use only.
