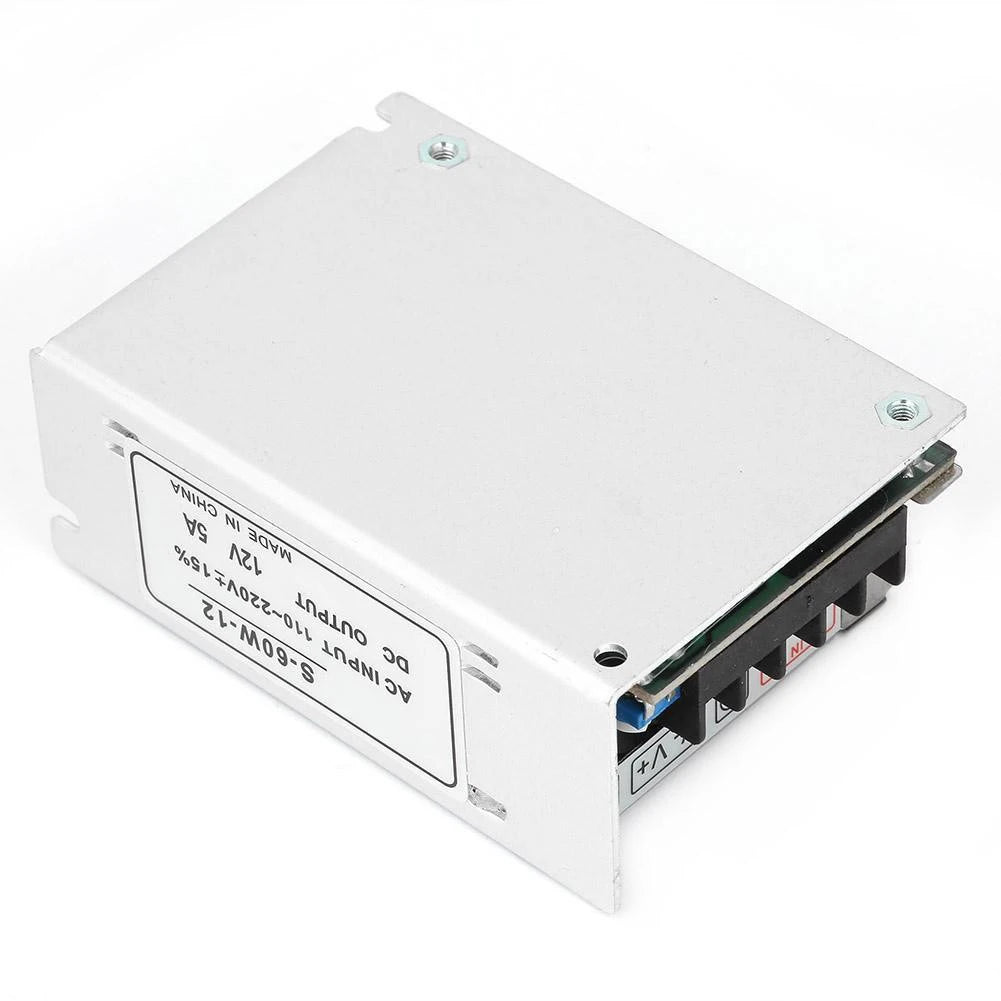

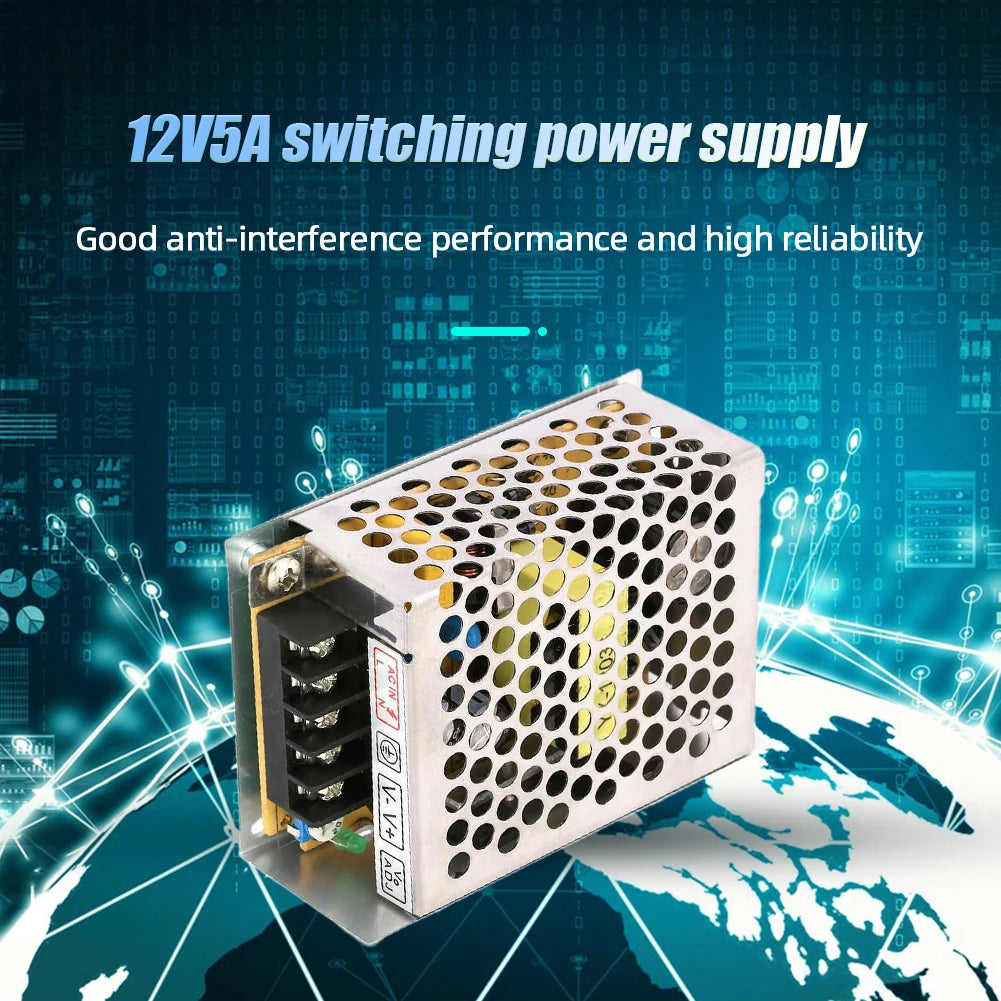

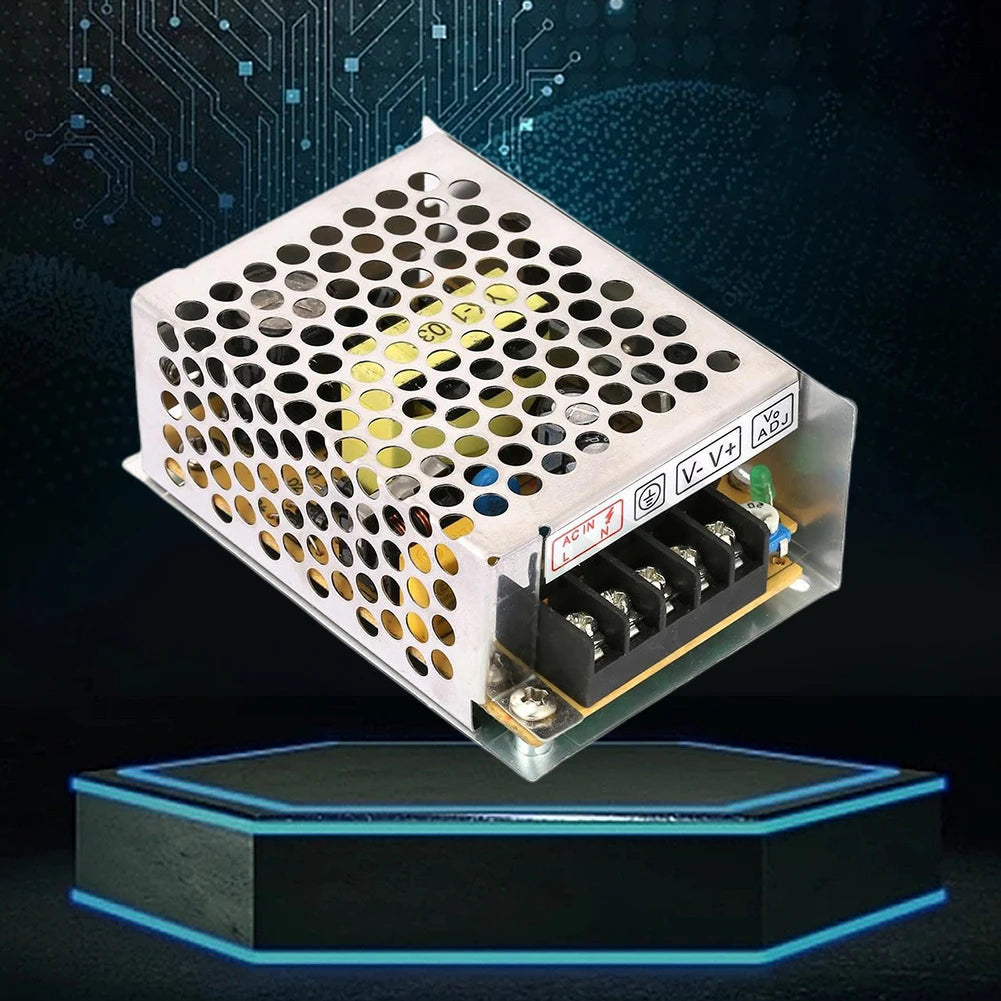

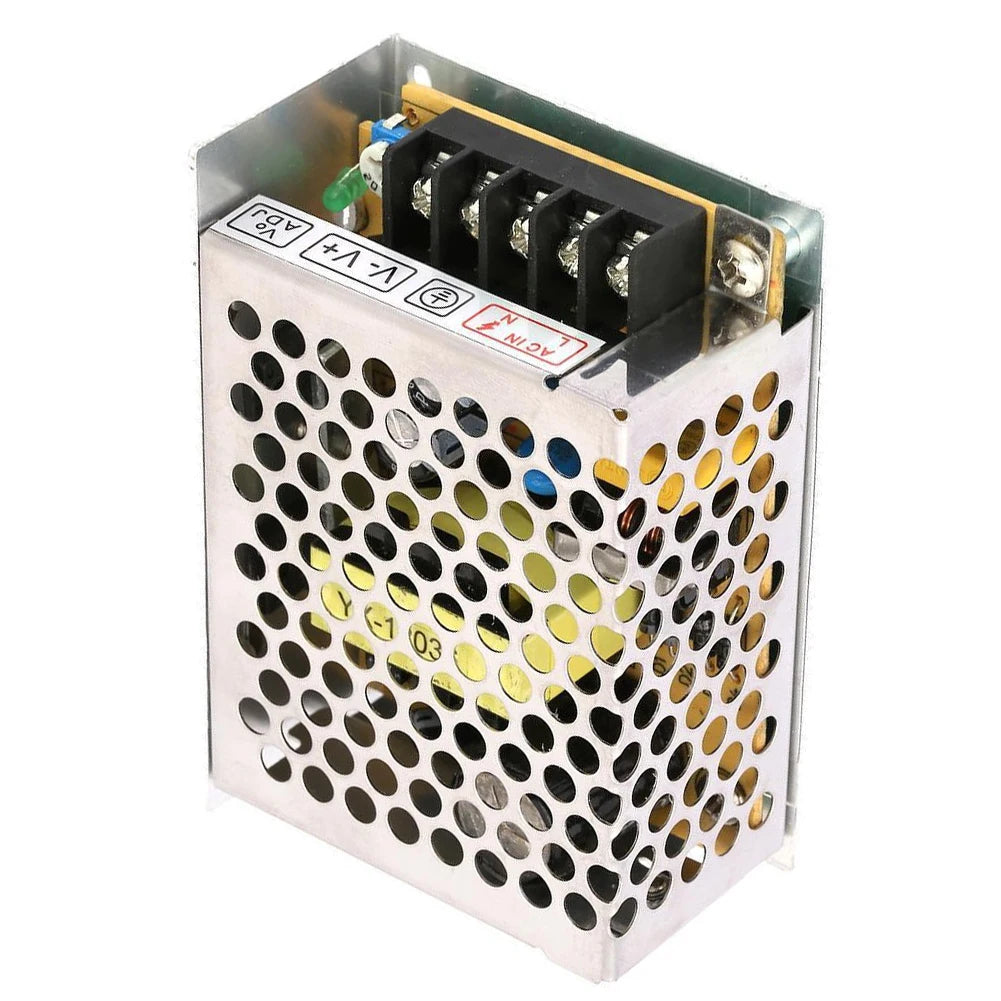

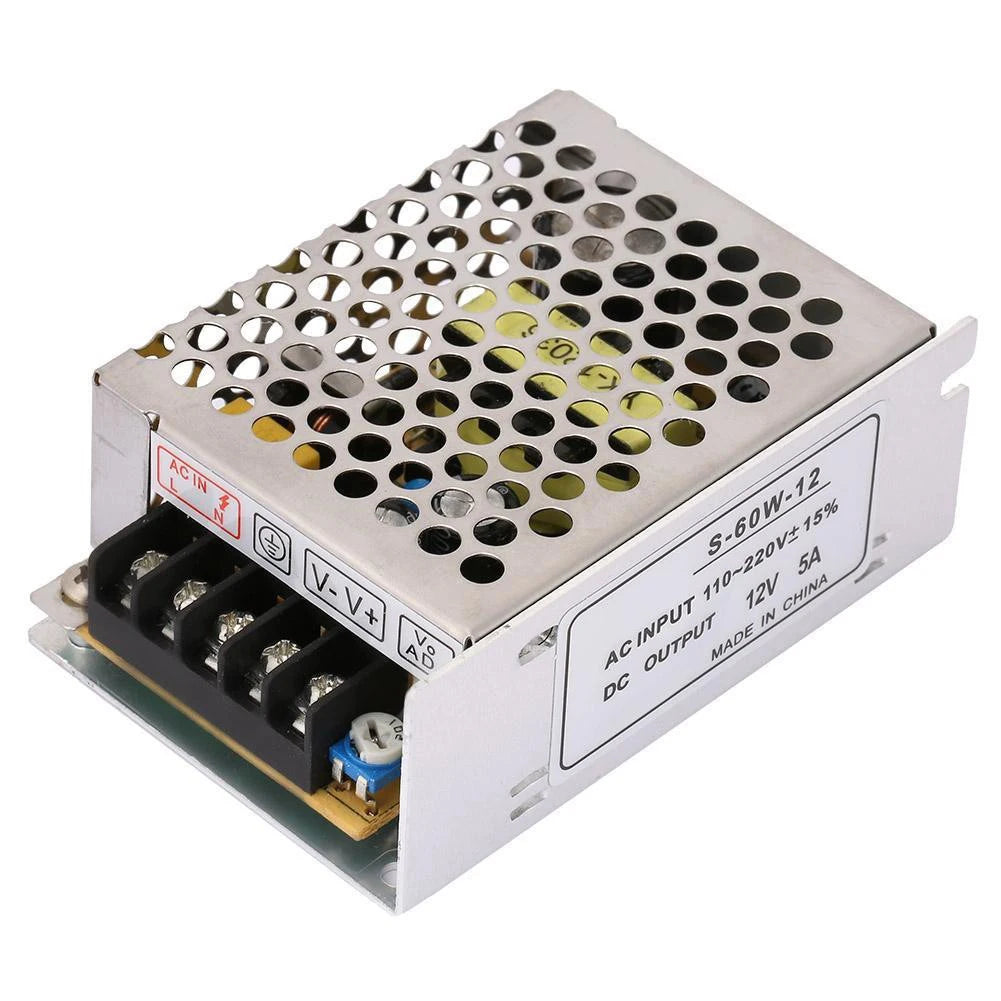

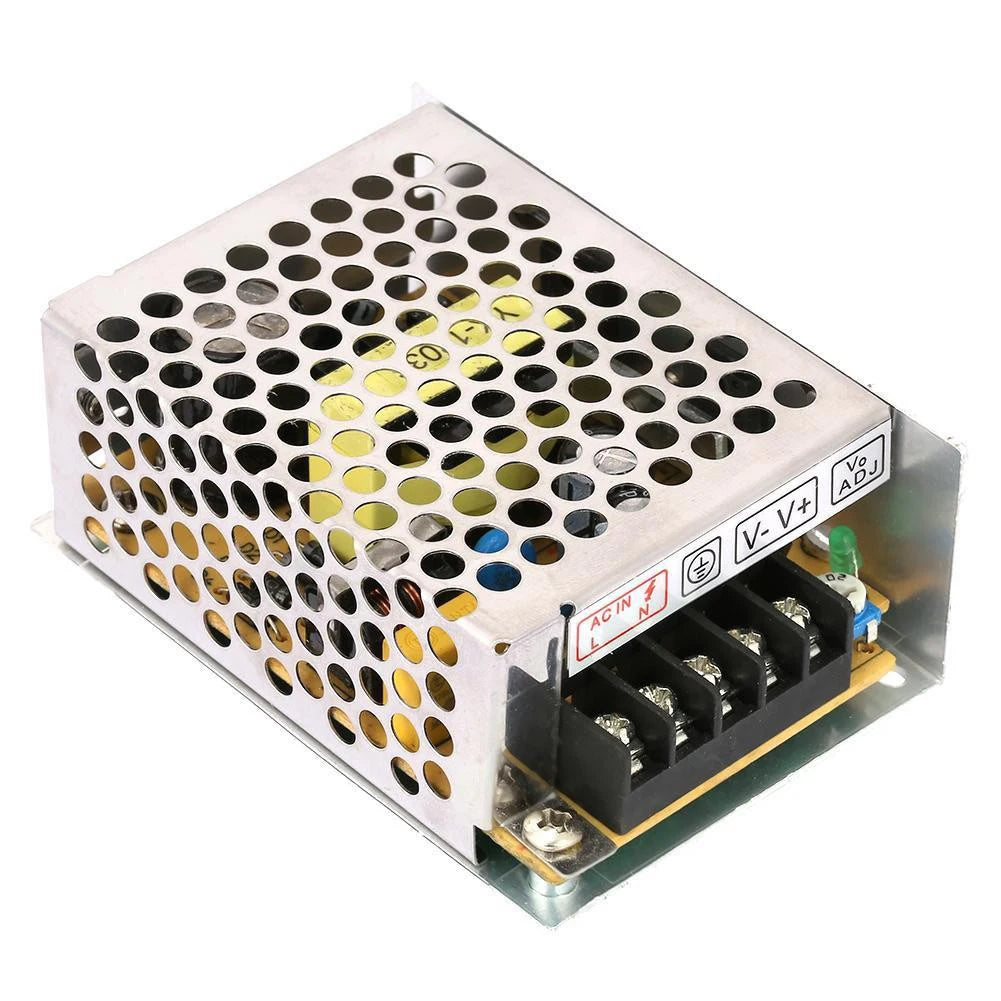

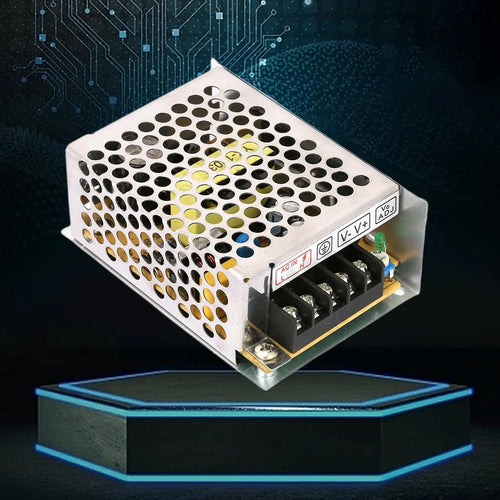

12V 5A Power Supply Adapter 60W Power Supply Transformer Switch 220 AC To 12V DC for LED Strip

1 6

Sold and shipped by: EzBuyCo

$14.29
$0.00 $14.29
Sale Sold out
Estimated delivery date: Loading...
Taxes included. Shipping calculated at checkout.
Free Shipping

30 day free returns

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Hign-concerned Chemical: None

Model Number: Switch

Origin: Mainland China

Output Current: 5A

Output Power: 51 - 100W

Output Type: SINGLE



()--Transformer

12V 5A Switching Power Supply 60W Power Supply Transformer Switch 220 AC To 12V DC for LED Strip Light

Features:

1.High Interference Resistance: This switch power supply has excellent interference resistance, making it highly reliable and stable.
2.Low Operating Temperature and Long Lifespan: With its low operating temperature, this power supply has an extended lifespan, ensuring superior performance and reliability over time.
3.Wide Input Voltage Range: The input voltage range is broad, ranging from 100-240V, which meets global standards, making it highly versatile and compatible with a range of devices.
4.Good Insulation Performance and High Electrical Strength: The power supply has excellent insulation performance and high electrical strength, ensuring the safety of the user and the device.
5.Full Load High-Temperature Burn-In Test: Every unit undergoes a full load high-temperature burn-in test, ensuring that the power supply can perform well under extreme conditions and is highly durable.



Specification:
Origin: Mainland China
Certification: NONE
Output Power: 51 - 100W
Output Type: single
Model Number: Switch
Output Current: 5A
DC output voltage: 12V
Output voltage tolerance: ±1%
Rated output current: 5A
Output current range: 0-5A
Ripple and noise: 100mVp-p
Line stability: ±0.5%
Load stability: ±0.5%
DC output power: 60W
Efficiency: 85%
DC voltage adjustable range: ±10%
Input voltage range: 100-240VAC47-63Hz; 120-370VDC
Input current: 2A/115V 1A/230V
electric shock
Cold start current 30A/115V 60A/230V
Leakage current: <3.5mA/240VAC
Overload protection: 105%-150%
Type: cut off output Reset: automatic recovery
Overvoltage protection: 115%-135%
High temperature protection:
Temperature coefficient: ±0.03%/°C (0-50°C)
Start, rise, hold time: 800ms, 50ms, 115VAC 300ms, 50ms/230VAC
Shock resistance: 10-500Hz, 2G 10min, /1 cycle, 60 minutes in total, each axis
Pressure resistance: Between input and output: 3KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC
Isolation resistance: between input and output, input and shell, output and shell: 500VDC/100MΩ
Working temperature, temperature: -10℃-+60℃, 20%-90%RH
Storage temperature, temperature: -20℃-+85℃, 10%-95%RH
Dimensions: 85*60*34mm
Weight: 0.27Kg


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.




Product Included
： 1PC *Power Supply Switch
