BaoFengUV-16 / UV-16 PusWalkie Talkie

Professional UV-16 10W Powerful Waterproof VHF UHF Dual Band Two Way Radio USB TYPE-C USB Charger

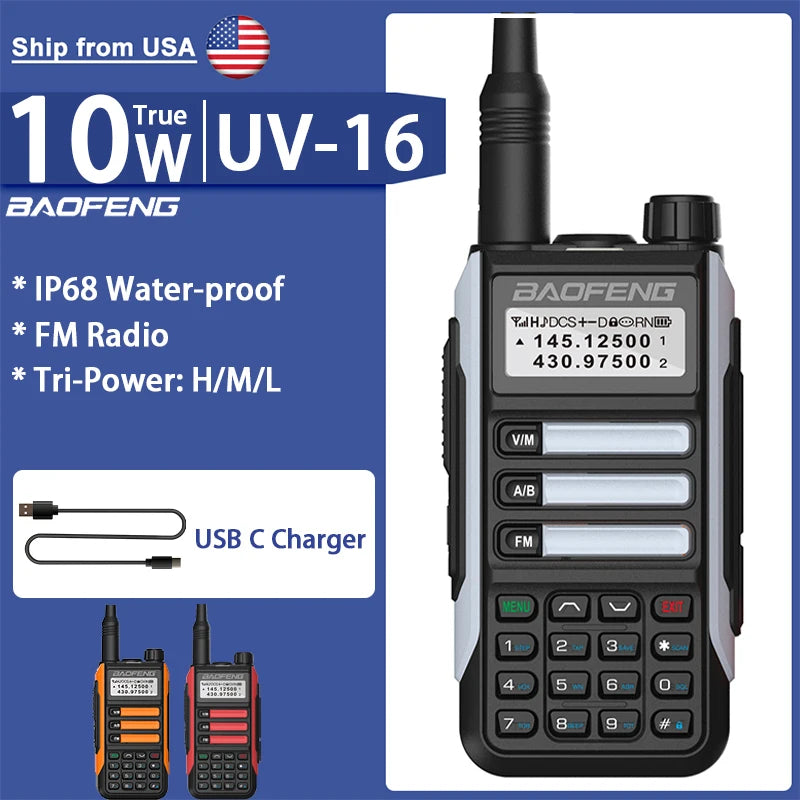

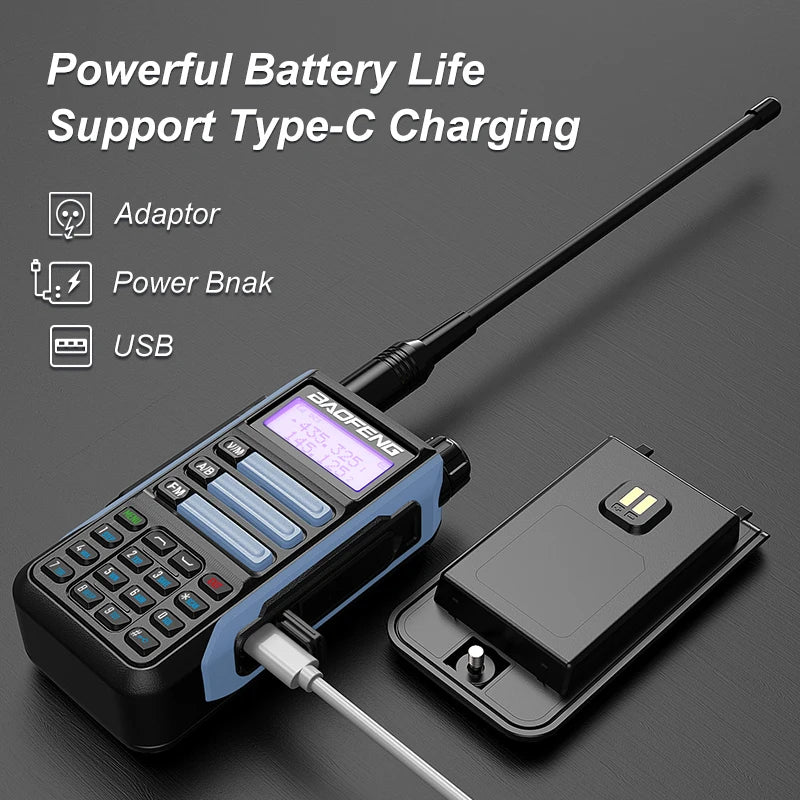

★USB USB Type-C Charging

USB charging is a trend for mobile devices as it has low requirements for power sources and

places. The UV16 is USB Type-C rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.

★Dual Watch & Sync Switchable

For users who only want to monitor one channel but would like to see both the channel name and frequency information on the display, the Sync function will be very helpful.

★UHF VHF Scanner + 3 Scanning Modes

Channel Scanning: Scan through your preset scanning list.

Frequency Range Scanning: Set a frequency range in the menu and it will scan precisely within that range, even only 1MHz apart.

CTCSS/DCS Tone Scanning: Scan all CTCSS/DCS tones of the current frequency.

★PC & Manual Programmable

Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.

Product Description:

All of our items are Brand New

* Model:UV-16

* Dual band /dual display / dual standby:A/B band independent operation(UV UU VV)

* 999 groups channels storage:Shortcut menu operation mode

* Memory channels scan:Time/ Carrier / Search Operation

* Emergency Alarm:Indicator and flashlight Flashing Together

* Time-out Timer (TOT):15-600/Stepping 15

* Squelch Level(SQL):0-9 Grade

* PTT & ANIID:ON OFF/0-9;A-F

* Voice companding:CTCSS/DCS

* High/Low TX power selectable:

* Busy channel lock-out(BCLO)

* DTMF ST function:DT+ANI/ANI-ST/DT-ST/OFF

* Dual PTT:Yes

* Wide/Narrow Band(25kHz/12.5kHz):Yes

* VOX function:Yes

* OFF/1-101750HZ Tone:Yes

* Busy lockout function:Yes

* Scanning function:Yes

* Monitor function:Yes

* Time-out Timer (TOT) function:Yes

* LCD display:Yes

* Dual display:Yes

* Dual Standby:Yes

* Battery voltage display function:Yes

* Channel name display and editing functions:Yes

* Signal strength indicator:Yes

* Keypad lock function:Yes

* Built-in Led torch:Yes

* FM radio:Yes 65-108MHZ(Reception)

* Emergency alarm function:Yes

* Low battery alarm:Yes

* Power saving function:Yes

* High/Low TX power selectable:10W:High/Mid/Low 8W: High/Low

* ROGER SET:YesFULL/MGS

* Chinese and English voice prompt:Yes

* Wire clone function:Yes

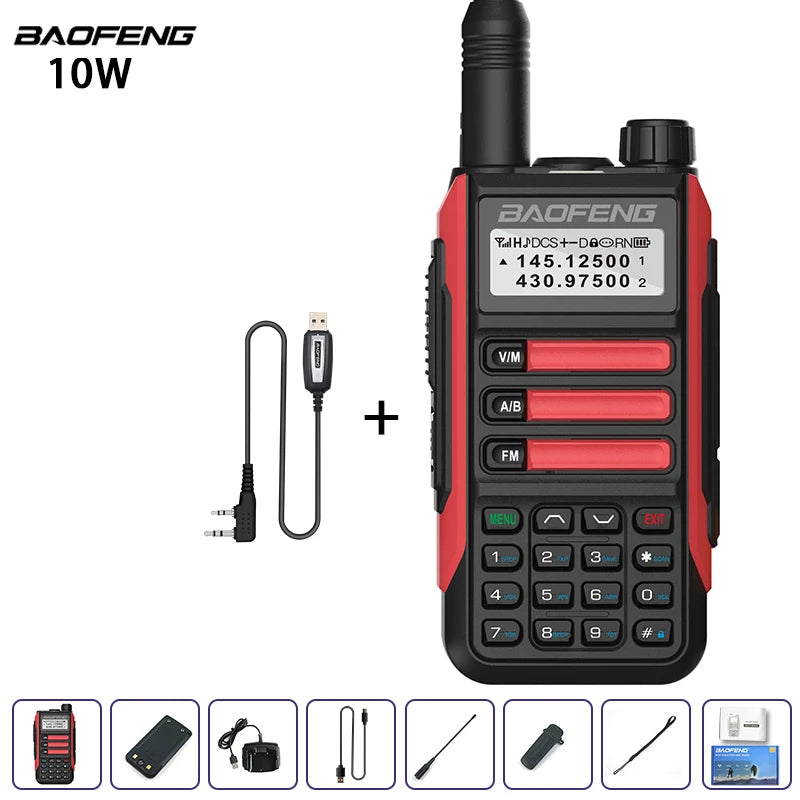

* PC software programmable:Yes

General Specifications

* Frequency stability:±2.5ppm

* Frequency Step:2.5/5/6.25/10/12.5/20/25KHz

* Antenna Impedance:50ohm

* Working temperature:-20~+50°C

* Rated Voltage:7.4V DC±10%

* Output power:5W or 8W Optional

* Battery type:Li-ion battery

* Battery capacity:5800mAh

* Headphone jack type:2 Pin Kenwood Plug

* Antenna Type:SMA-(Male)

* Mode Of Operation:Simplex Or Semi-duplex

* Weight:450g(approximate)

* Dimension(LXWXH):115*60*36mm(without antenna)

Transmitter

* Type Of Modulation:16køF3E / 11køF3E

* Max frequency deviation:< 5kHz(Wide)/< 2.5kHz(Narrow)

* Emissioncurrent:<= 1.5A(5W)

* CTCSS / DCS:0.7±0.1kHz(Wide)/0.4±0.1kHz(Narrow)

Reception

* Sensitivity:-122dBm(12dB SINAD)

* Audio Power:1W

* Intermediation Distortion:<10%

* Inter modulation:>=65Db/>=60dB

* Spurious response:65dB

* Adjacent channel selectivity( wide/narrow):<-65dB(Wide) <-60dB(Narrow)

* Receiving Current:<=380mA

Features:

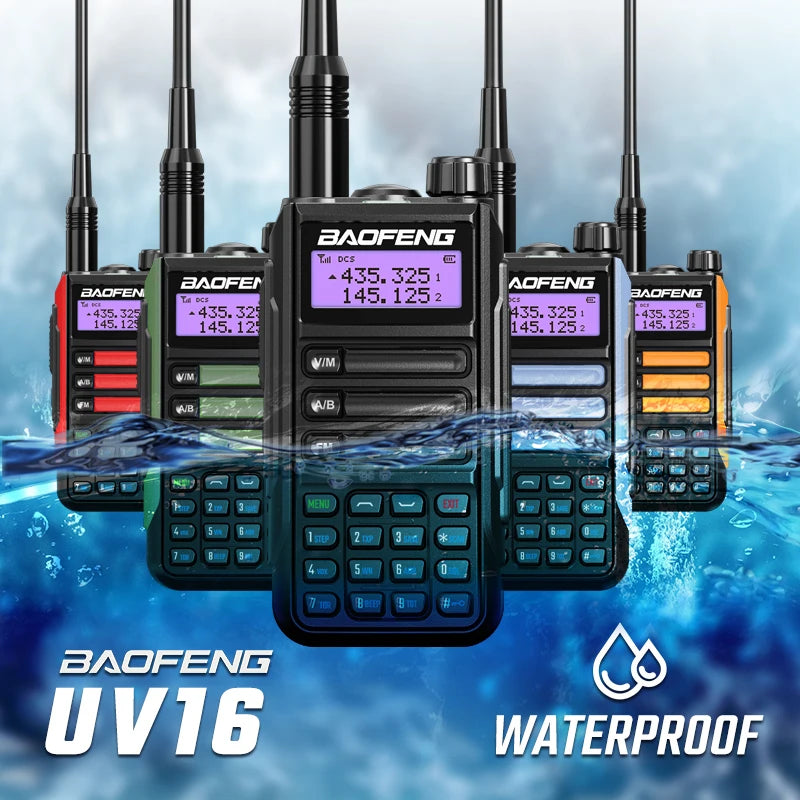

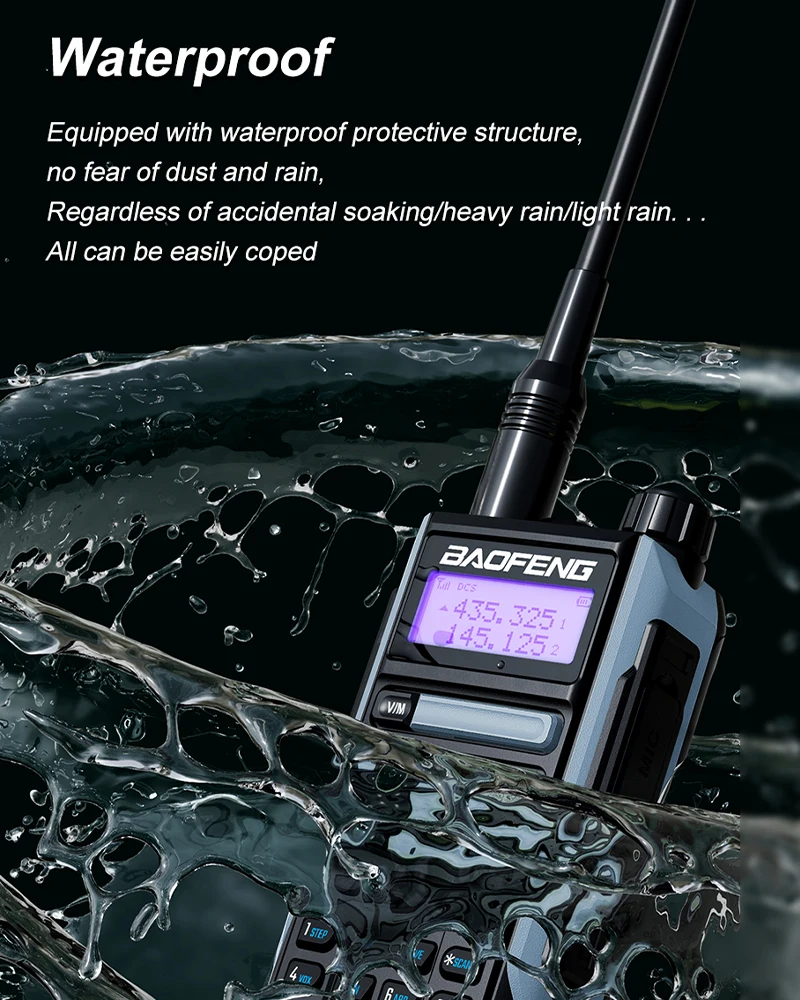

1) IP68 life waterproof (Splash waterproof protection).

2) LCD display screen.

3) 10W or 8W high power

4) DTMF coding.

5) U/V full band transceiver.

6) Quick menu operation mode.

7) Computer program.

8) Wired copy function.

9) Emergency alarm call function.

10) Wide / narrow band selection.

Package include:

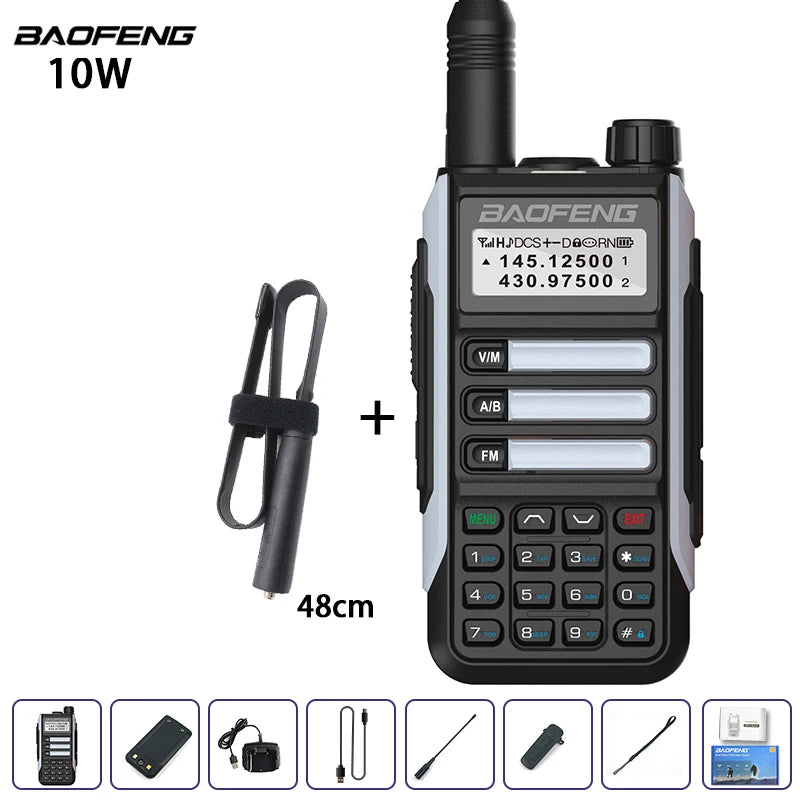

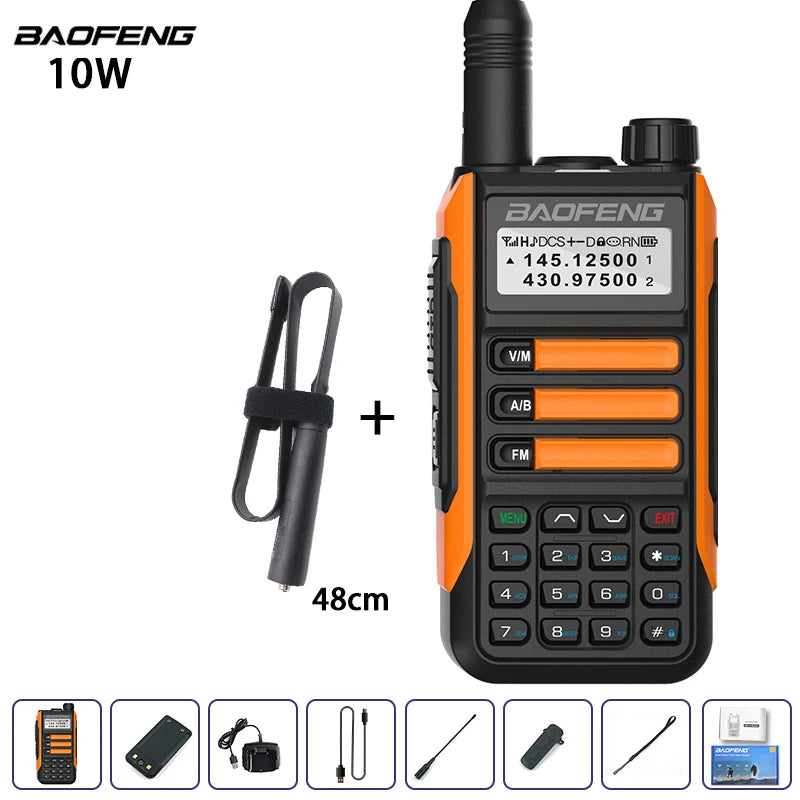

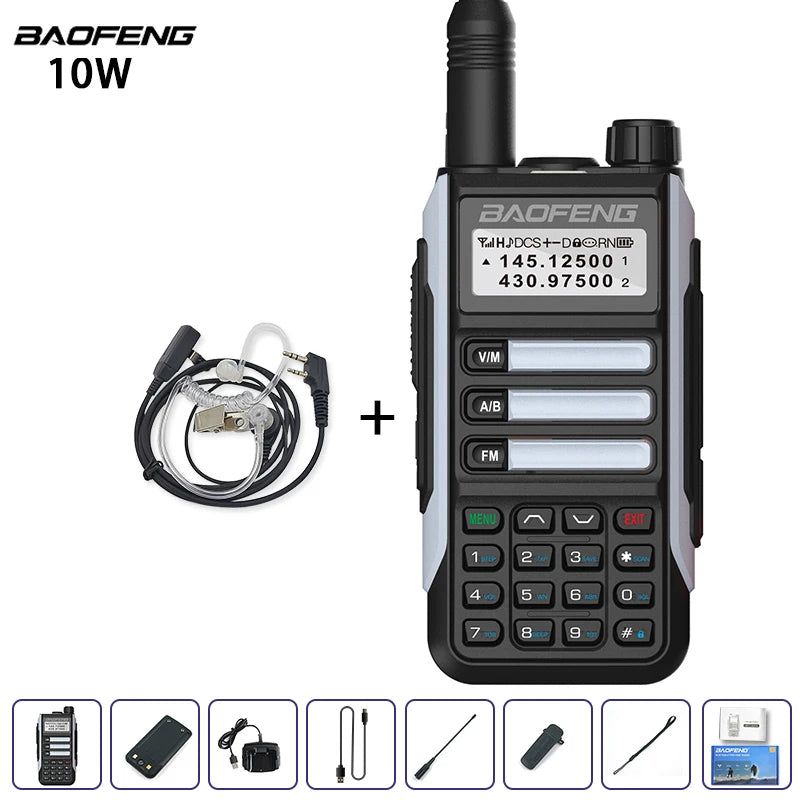

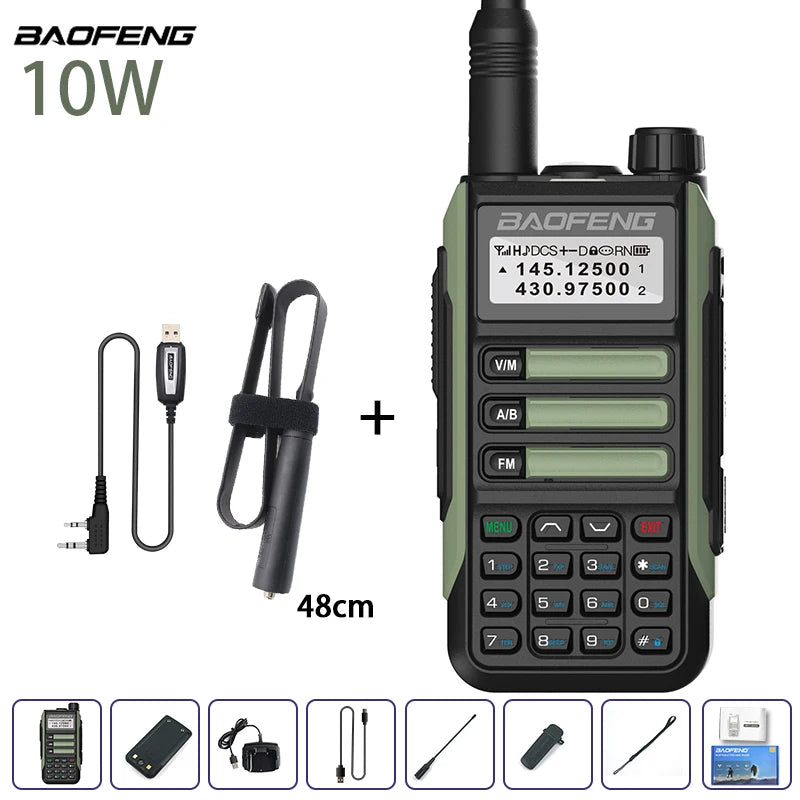

1 X Portable radio

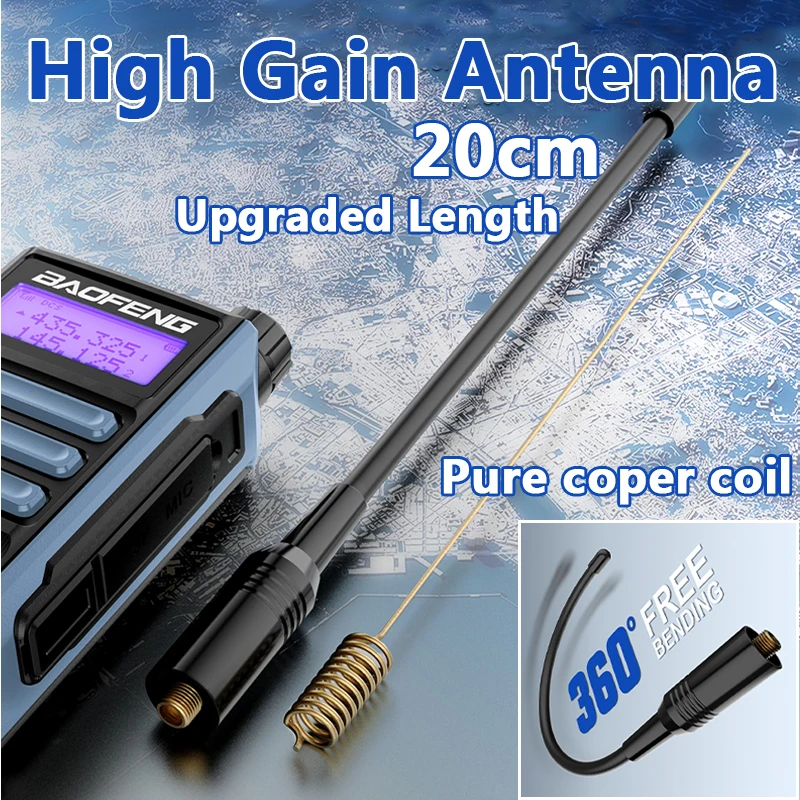

1 X Antenna

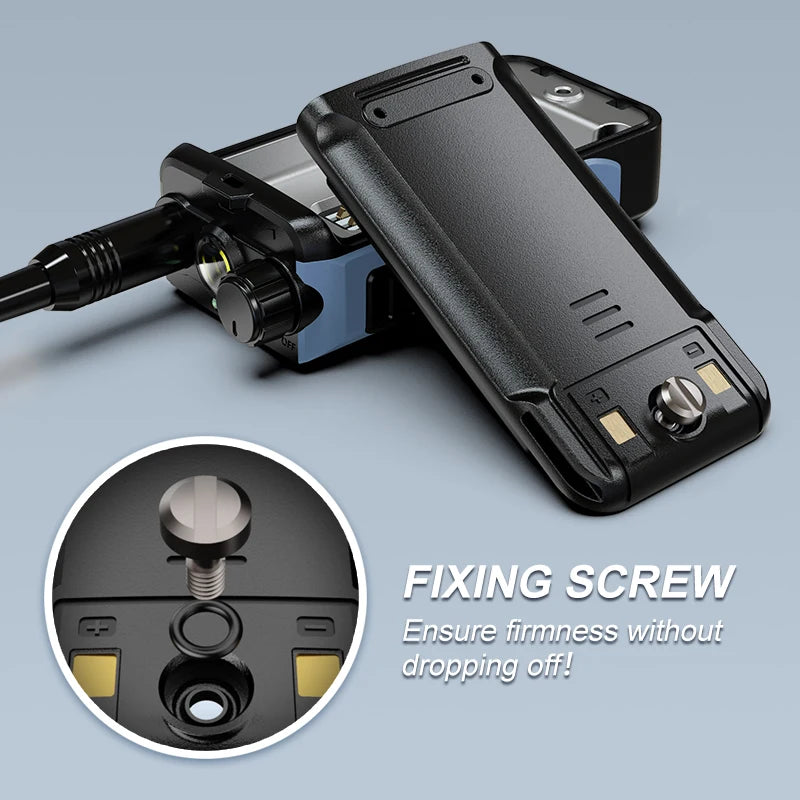

1 X Li-ion battery pack

1 X Belt clip

1 X The Sling

1 X Charger

1 X User's manual

(And other accessory depend on your choice in the link)
